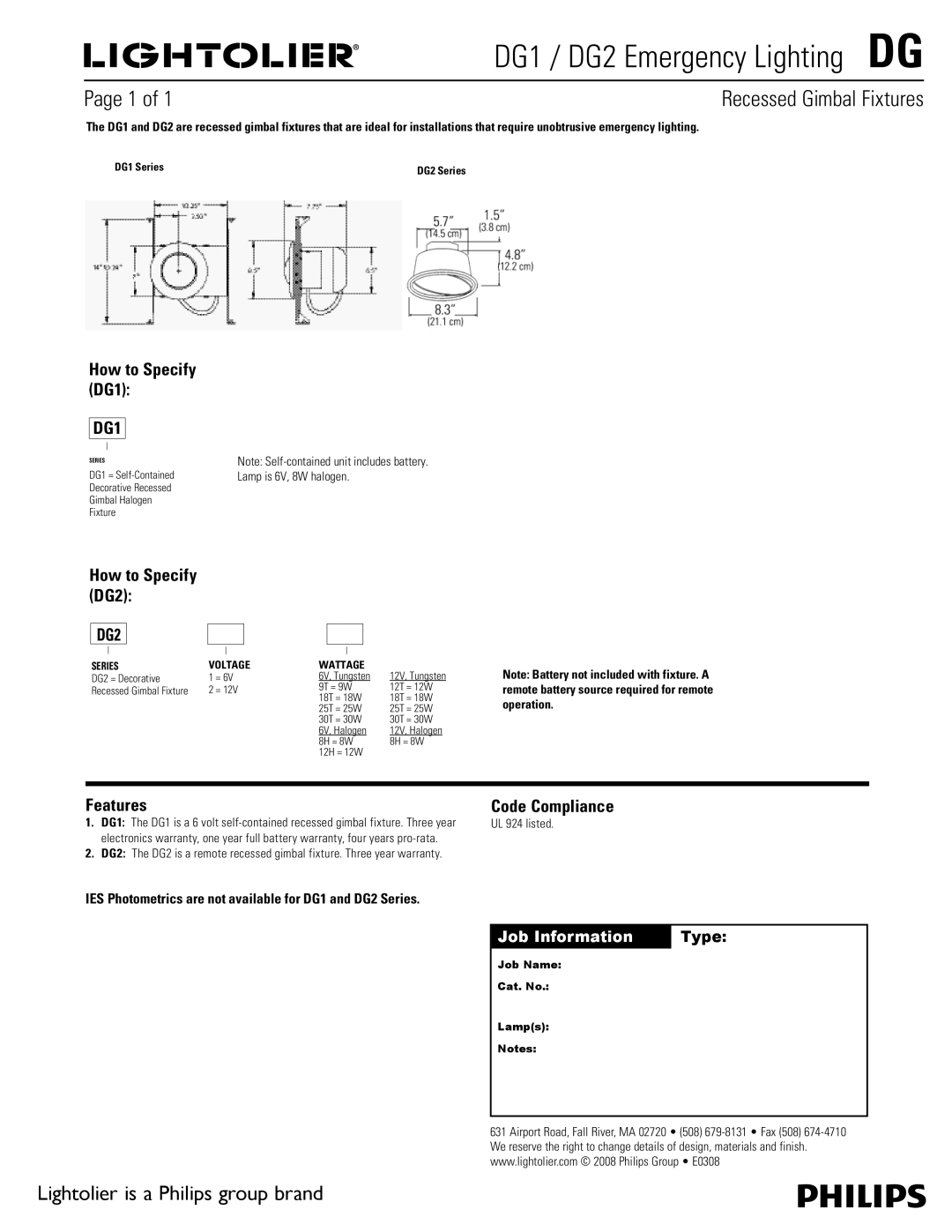

	DG1 / DG2 Emergency Lighting  DG
Page 1 of 1	Recessed Gimbal Fixtures

The DG1 and DG2 are recessed gimbal fixtures that are ideal for installations that require unobtrusive emergency lighting.

DG1 Series

How to Specify (DG1):

DG1

SERIES

DG1 = Self-Contained

Decorative Recessed

Gimbal Halogen

Fixture

DG2 Series

Note: Self-contained unit includes battery. Lamp is 6V, 8W halogen.

How to Specify (DG2):

DG2

SERIES	VOLTAGE		WATTAGE
DG2 = Decorative	1	= 6V	6V, Tungsten	12V, Tungsten
Recessed Gimbal Fixture	2	= 12V	9T = 9W	12T = 12W
			18T = 18W	18T = 18W
			25T = 25W	25T = 25W
			30T = 30W	30T = 30W
			6V, Halogen	12V, Halogen
			8H = 8W	8H = 8W
			12H = 12W

Note: Battery not included with fixture. A remote battery source required for remote operation.

Features

1.DG1: The DG1 is a 6 volt self-contained recessed gimbal fixture. Three year electronics warranty, one year full battery warranty, four years pro-rata.

2.DG2: The DG2 is a remote recessed gimbal fixture. Three year warranty.

Code Compliance

UL 924 listed.

IES Photometrics are not available for DG1 and DG2 Series.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • E0308
