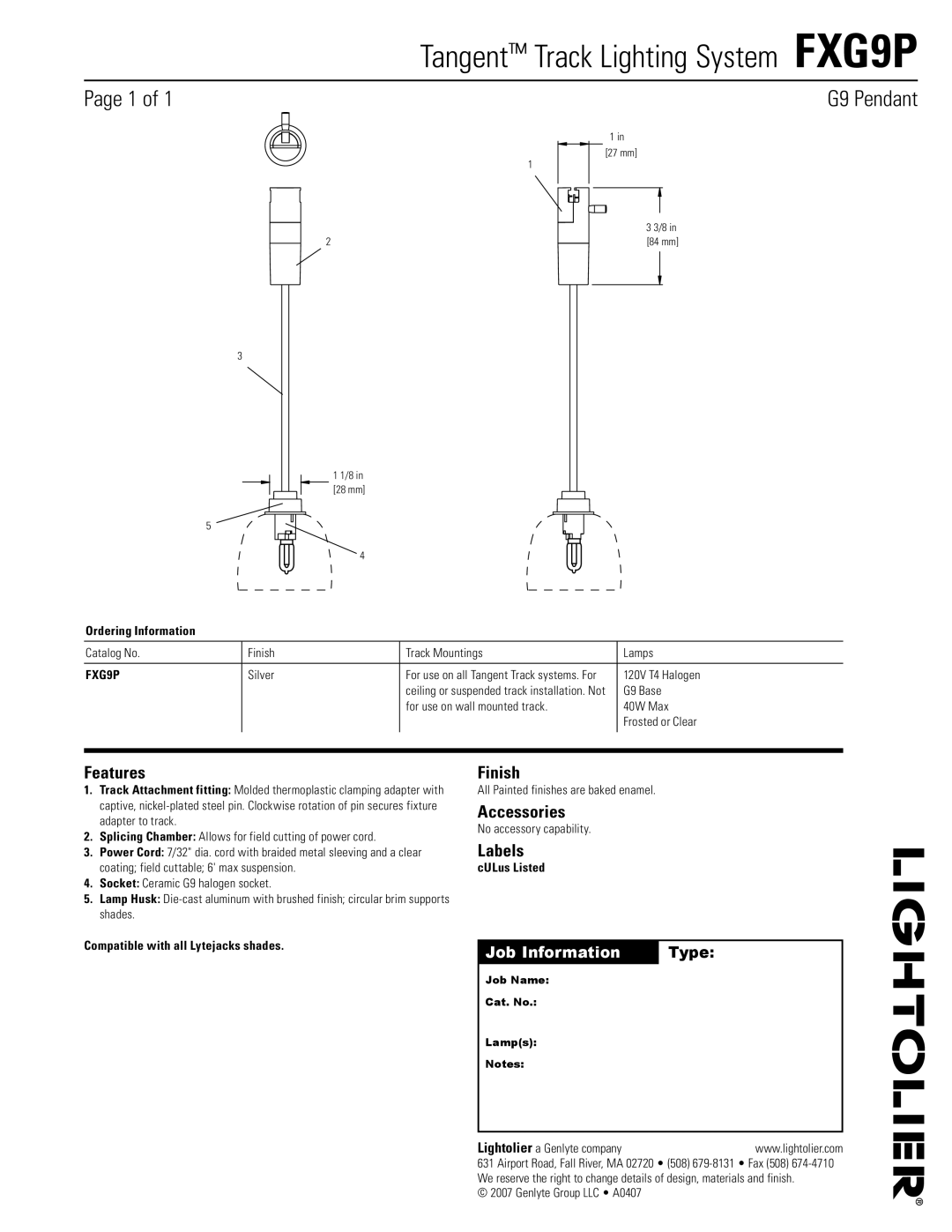

Tangent™ Track Lighting System  FXG9P

Page of 1

1

2

3

1 1/8 in

[28 mm]

5

4

G9 Pendant

1in [27 mm]

3 3/8 in

[84 mm]

Ordering Information

Catalog No.	Finish	Track Mountings	Lamps
FXG9P	Silver	For use on all Tangent Track systems. For	120V T4 Halogen
		ceiling or suspended track installation. Not	G9 Base
		for use on wall mounted track.	40W Max
			Frosted or Clear

Features

1.Track Attachment fitting: Molded thermoplastic clamping adapter with captive, nickel-plated steel pin. Clockwise rotation of pin secures fixture adapter to track.

2.Splicing Chamber: Allows for field cutting of power cord.

3.Power Cord: 7/32" dia. cord with braided metal sleeving and a clear coating; field cuttable; 6' max suspension.

4.Socket: Ceramic G9 halogen socket.

5.Lamp Husk: Die-cast aluminum with brushed finish; circular brim supports shades.

Compatible with all Lytejacks shades.

Finish

All Painted finishes are baked enamel.

Accessories

No accessory capability.

Labels

cULus Listed

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2007 Genlyte Group LLC • A0407
