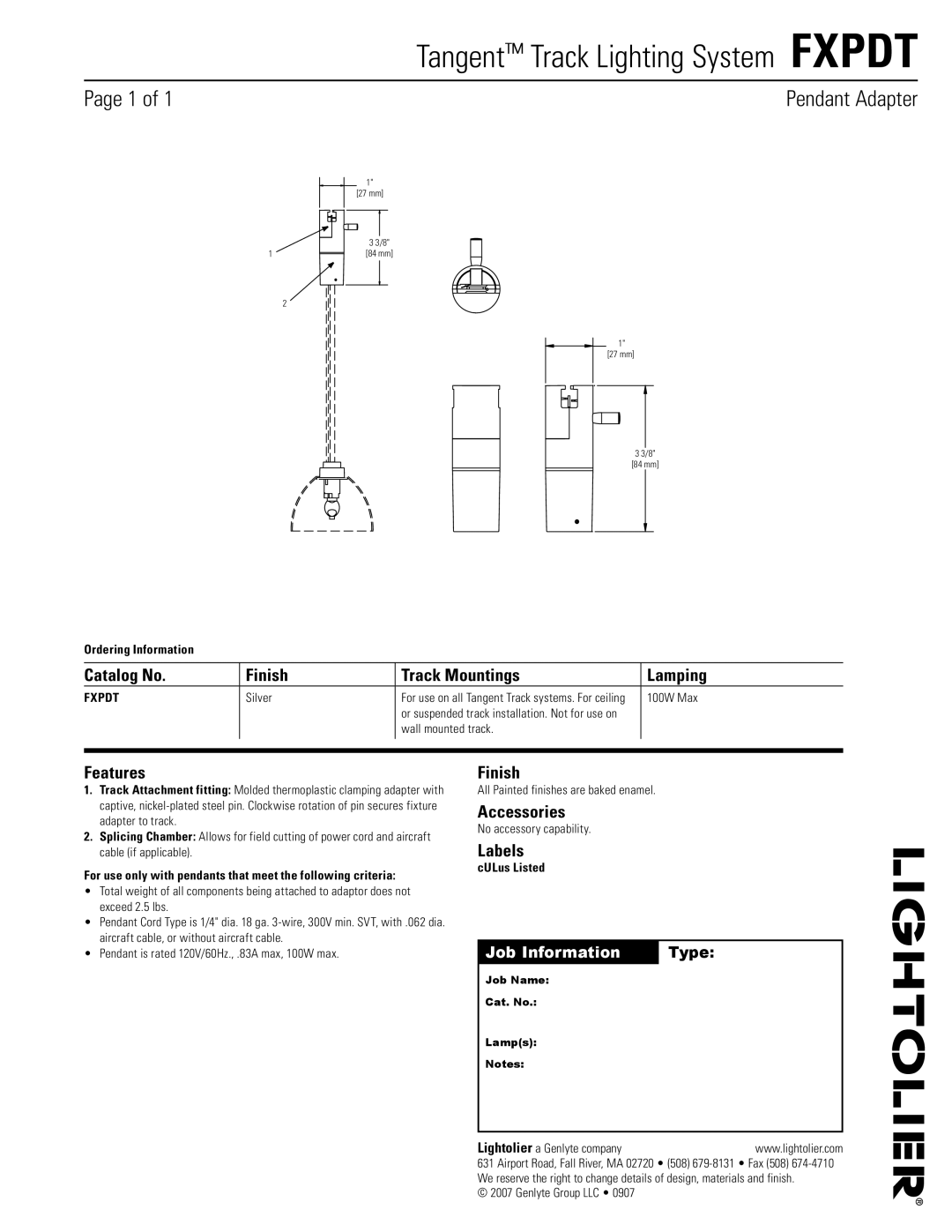

	Tangent™ Track Lighting System  FXPDT
Page of 1	Pendant Adapter

	1"
	[27 mm]
	3	3/8"
1	[84 mm]
	2

1"

[27 mm]

3 3/8"

[84 mm]

Ordering Information

Catalog No.	Finish	Track Mountings	Lamping
FXPDT	Silver	For use on all Tangent Track systems. For ceiling	100W Max
		or suspended track installation. Not for use on
		wall mounted track.

Features

1.Track Attachment fitting: Molded thermoplastic clamping adapter with captive, nickel-plated steel pin. Clockwise rotation of pin secures fixture adapter to track.

2.Splicing Chamber: Allows for field cutting of power cord and aircraft cable (if applicable).

For use only with pendants that meet the following criteria:

•Total weight of all components being attached to adaptor does not exceed 2.5 lbs.

•Pendant Cord Type is 1/4" dia. 18 ga. 3-wire, 300V min. SVT, with .062 dia. aircraft cable, or without aircraft cable.

•Pendant is rated 120V/60Hz., .83A max, 100W max.

Finish

All Painted finishes are baked enamel.

Accessories

No accessory capability.

Labels

cULus Listed

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2007 Genlyte Group LLC • 0907
