Lytecel Recessed Fluorescent LCS6G20LW132

Page 1 of 2 For Continuous Row Mounting, 6" wide x 48", 20 Cell (1 Row) Parabolic Louver, Air Return/Static, 1 Lamp T8, IES RP1 For VDT Areas

Features

•48" long louver gives an uninterrupted louver appearance when row mounted. Ideal for continuous row applications.

•54.1% efficient (1 lamp) semi-specular louver.

•57.6% efficient (1 lamp) specular louver.

•1.7 spacing mounting ratio (1 lamp).

•Semi-specular or specular, low iridescence, pre-anodized aluminum louver.

•Vertical grain on cross blades eliminates reflected lamp image.

•Spring loaded latches (self centering).

•Louver has protective dust guard.

•Only 5-1/2" deep body.

•Black housing exterior for cooler ballast operating temperature.

•UL-Listed twin knockout access plate.

•Meets NYC Code requirements.

•Construction to meet Chicago Plenum Code is available.

•Optional DALI ballast accepts digital dimming commands from computers, scene controllers and automatic control devices.

Mounting Methods

Dimensions

Gexposed T-grid ceiling.

Hold-down

Clip

2" max.

15/16"

or

6"9/16"

End of Row

Fixture

Screw

Continuous

Row Coupler

Side Rail

Hold-down



Clip





Texposed slot T-grid ceiling.

Hold-down

Clip

2" max.

9/16"

6"

5-1/2"

(139mm)

LC6

End

Trim











End Trim



















required for



48"



48"



4-1/4" (108mm)



beginning and



(1220mm)



(1220mm)





























6" (162mm)



end of row.

















Joint of Two Units











Order Catalog























Number:



















LC6 END TRIM













2" x 2-1/2" Access Plate



















with (2) 7/8" K.O.s

















Air Return Slots



7-3/8"









(187mm)





(LCA only)























coupler/clamp (LC85 CLAMP) (Order for end of row)

FixtureFixture

Screw

Continuous

Row Coupler



Side

Hold-down

Rail

Clip





continuous row coupler locks fixtures together for a continuous line of light without cell configuration interruption (supplied with fixture)

NOTE:

If product is to be mounted individually, use LI series, Folio G07-32.

3/07



1-3/4" (44mm)

















39-1/4" (997mm)



















48" (1220mm)

















Job Information





Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte companywww.lightolier.com Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2007 a Genlyte company

Section 2/Folio G07-40

Page 1 Page 2
Page 1
Image 1

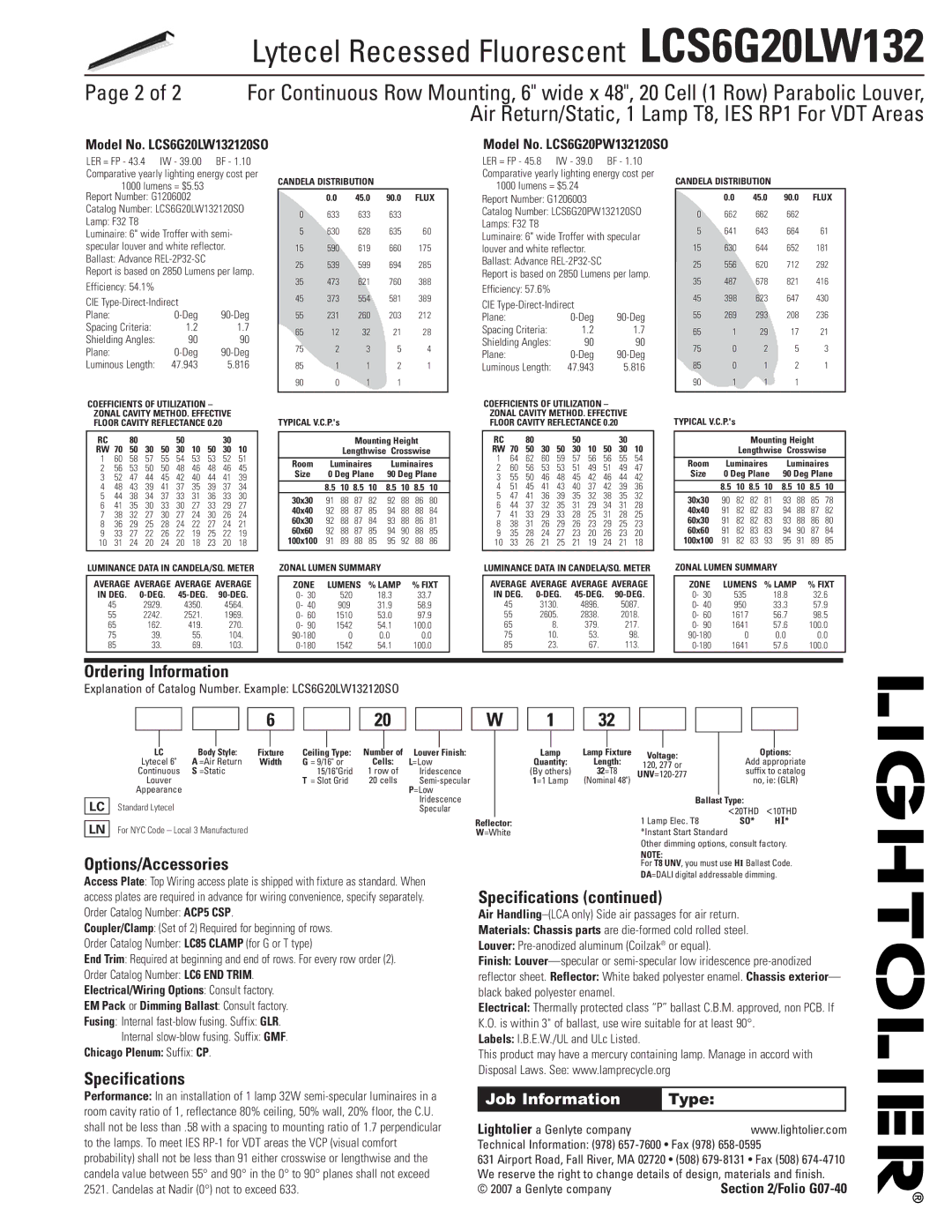

Lightolier LCS6G20LW132 dimensions Features, Mounting Methods Dimensions, LC6 END Trim
