LGS Series Edge-Lit LED Special Wording Sign LGS

Page 1 of 2

AC Only Operation Edge-Lit Special Wording Exit with Universal Mounting

The LGS Series signage provides a slim profile that blends well with any commercial or architectural space. Universal mounting allows for recessed ceiling, surface ceiling, surface end or surface wall mount. White LEDs allows for choice of wording/graphic colors such as blue, black and yellow.

			4.5”
17.25”	4.0”	14.25”	(11.43 cm)
17.25”	(10.16 cm)	(36.19 cm)
(43.81 cm)
	7.28”		10.1”
	(18.49 cm)		(25.43 cm)

How to Order

SERIES	HOUSING	# OF	GRAPHICS	LENS	SPECIAL	FACTORY INSTALLED
	FINISH	FACES	COLOR	INSERT	WORDING	OPTIONS

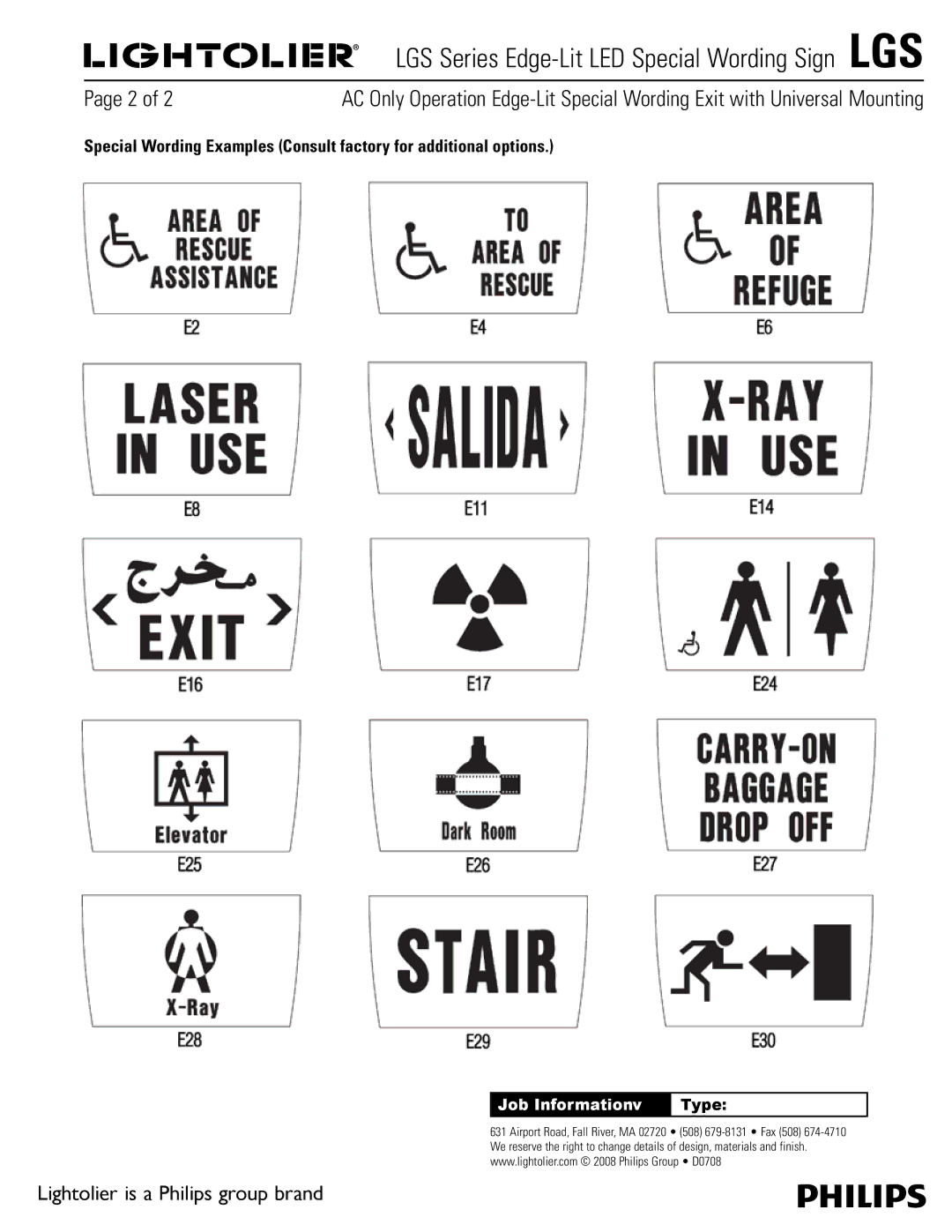

LGS = LG Series	A = Brushed Aluminum	1 = Single	R = Red	Blank = Clear	See Back Page	Blank = No options
White LED AC	B = Black	2 = Double	G = Green	M = Mirror		FL = AC Flasher
Only Signage	W = White		B = Blue			RFL = Remote Switched Flasher
	N = Nickel		K = Black
	G = Gunmetal		Y = Yellow
	BR = Ornamental Bronze
	AC = Aged Copper
	VG = Velvet Green
	GR = Granite

Features

1.Illumination: Illumination is accomplished with the use of high brightness LEDs in an optical array offering even illumination.

2.Housing: All housing components are premium die-cast aluminum construction. A wide range of finishes are available; see How to Order above. A bar hanger kit and trimplate is furnished as a standard feature.

3.Panel: Panel is manufactured from high impact acrylic and silk-screened using computer generated artwork.

4.Electronics: 120/277 VAC dual voltage input with surge-protected, solid- state circuitry.

5.Input Power Requirements: AC Only

120 VAC - 60 Hz, 0.084A, 9.1W, .90Pf

277 VAC - 60 Hz, 0.037A, 9.3W, .90Pf

6.Warranty: Electronics: 5 years

Code Compliance

UL 48 listed, IC rated, UL damp location listing 32°F (0°C) to 104°F (40°C), Meets ADA specifications for wall mounted lighting fixtures

Lightolier is a Philips group brand

Options Description

FL - AC Flasher option enables the sign to operate in a 50% duty cycle flashing mode any time AC power is present. This option allows off or flashing operation. RFL - Remote Switched Flasher option allows for an external, normally open, dry contact switch to control the flashing mode. This mode allows for off, on, or flashing operation.

Accessories

PKIT12B = Pendant Kit, 12", Black Finish

PKIT12W = Pendant Kit, 12", White Finish

NOTE: Custom pendant lengths and colors available, consult factory.

Job Information	Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
