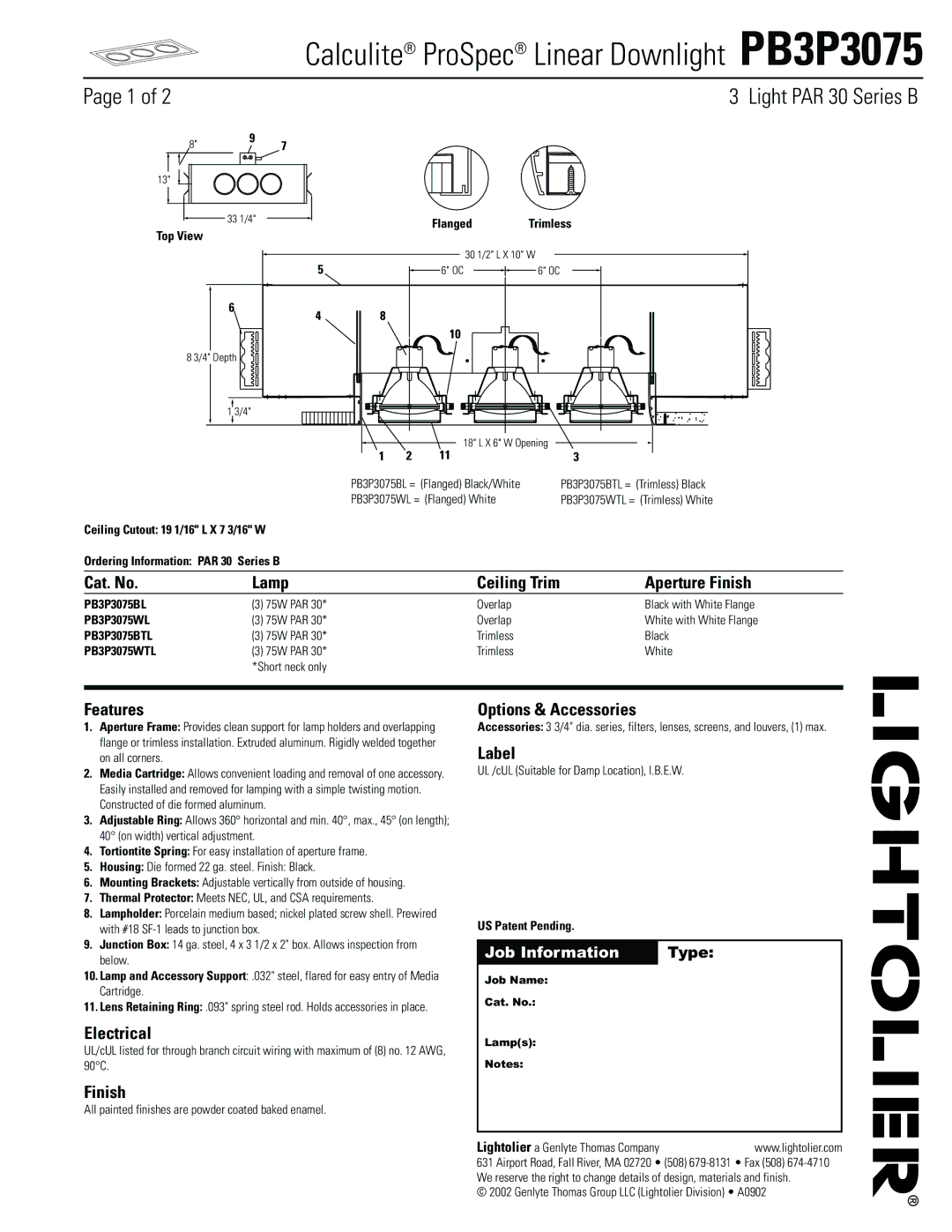

Calculite® ProSpec® Linear Downlight PB3P3075

Page 1 of 2

3 Light PAR 30 Series B

9

8"7

13"

33 1/4"

Flanged

Trimless



Top View

6

5

48

30 1/2" L X 10" W

6" OC



6" OC



10

8 3/4" Depth

1 3/4"











18" L X 6" W Opening











1

2

11



3

















PB3P3075BL = (Flanged) Black/White

PB3P3075BTL = (Trimless) Black



PB3P3075WL = (Flanged) White

PB3P3075WTL = (Trimless) White

Ceiling Cutout: 19 1/16" L X 7 3/16" W















Ordering Information: PAR 30 Series B





























Cat. No.

Lamp





Ceiling Trim



Aperture Finish

PB3P3075BL

(3) 75W PAR 30*





Overlap



Black with White Flange

PB3P3075WL

(3) 75W PAR 30*





Overlap



White with White Flange

PB3P3075BTL

(3) 75W PAR 30*





Trimless



Black

PB3P3075WTL

(3) 75W PAR 30*





Trimless



White



*Short neck only



































Features

1.Aperture Frame: Provides clean support for lamp holders and overlapping flange or trimless installation. Extruded aluminum. Rigidly welded together on all corners.

2.Media Cartridge: Allows convenient loading and removal of one accessory. Easily installed and removed for lamping with a simple twisting motion. Constructed of die formed aluminum.

3.Adjustable Ring: Allows 360° horizontal and min. 40°, max., 45° (on length); 40° (on width) vertical adjustment.

4.Tortiontite Spring: For easy installation of aperture frame.

5.Housing: Die formed 22 ga. steel. Finish: Black.

6.Mounting Brackets: Adjustable vertically from outside of housing.

7.Thermal Protector: Meets NEC, UL, and CSA requirements.

8.Lampholder: Porcelain medium based; nickel plated screw shell. Prewired with #18 SF-1 leads to junction box.

9.Junction Box: 14 ga. steel, 4 x 3 1/2 x 2" box. Allows inspection from below.

10.Lamp and Accessory Support: .032" steel, flared for easy entry of Media Cartridge.

11.Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.

Electrical

UL/cUL listed for through branch circuit wiring with maximum of (8) no. 12 AWG, 90°C.

Finish

All painted finishes are powder coated baked enamel.

Options & Accessories

Accessories: 3 3/4" dia. series, filters, lenses, screens, and louvers, (1) max.

Label

UL /cUL (Suitable for Damp Location), I.B.E.W.

US Patent Pending.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Page 1
Image 1
Lightolier manual Calculite ProSpec Linear Downlight PB3P3075

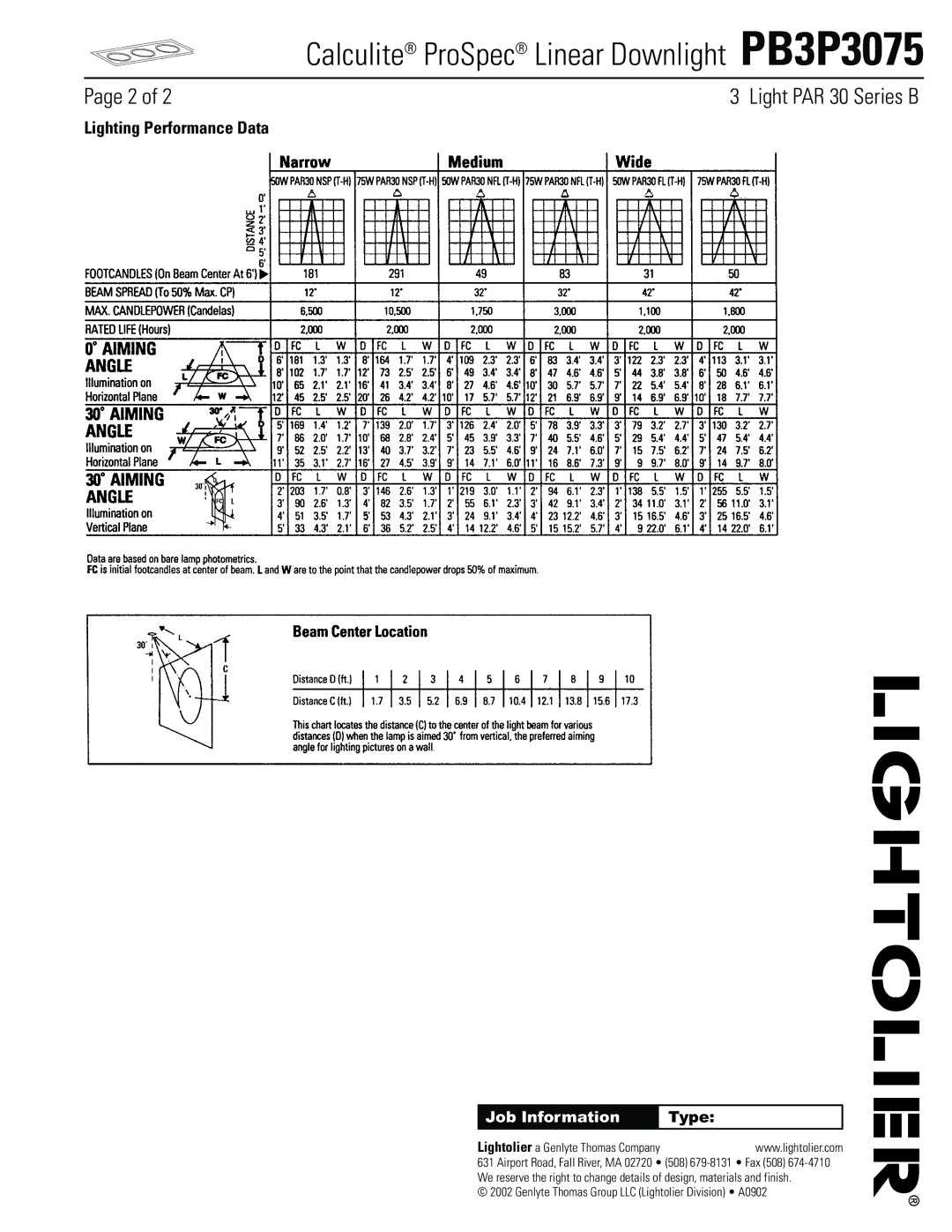

PB3P3075 specifications
