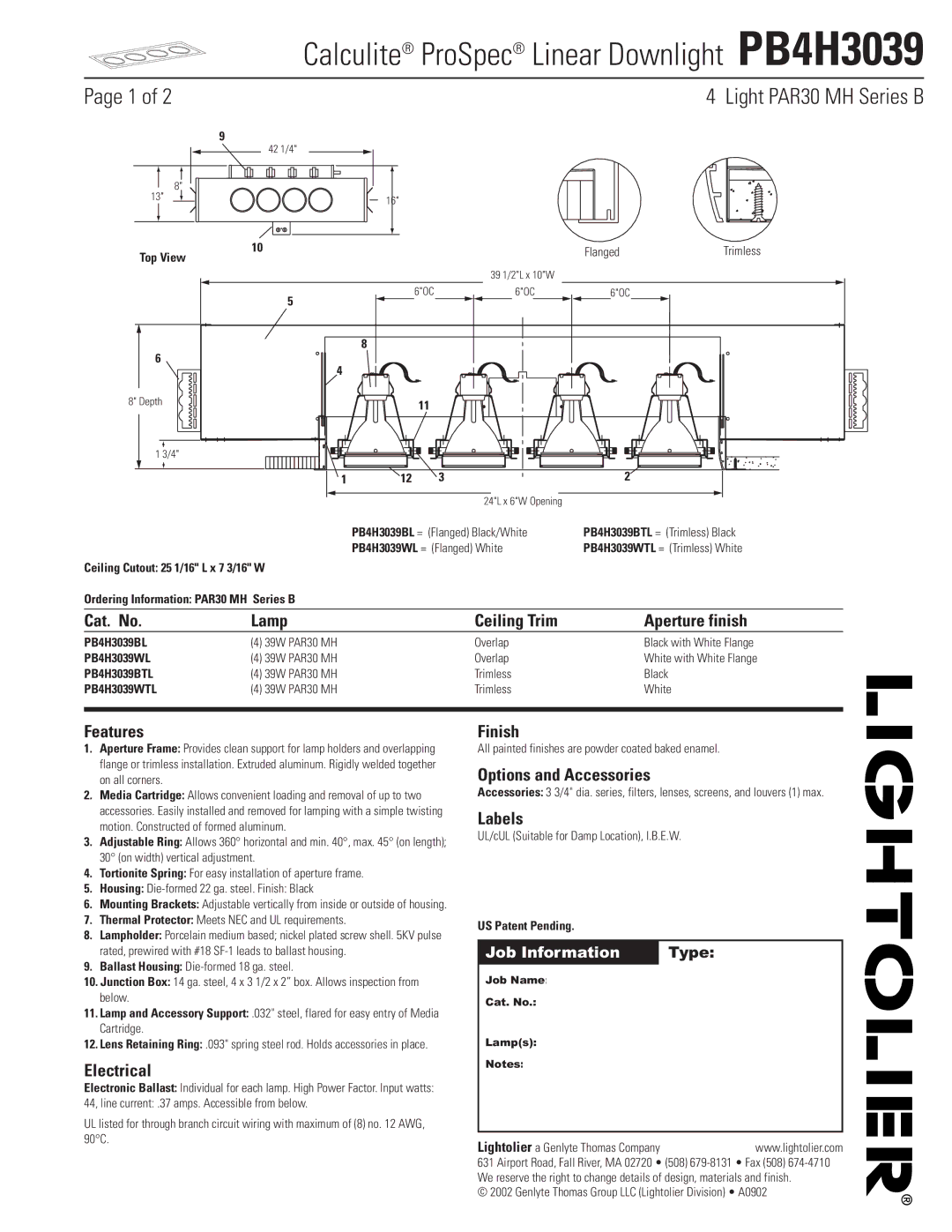

Calculite® ProSpec® Linear Downlight PB4H3039

Page 1 of 2

4 Light PAR30 MH Series B

8"

13"

Top View

6

8" Depth

1 3/4"

9

42 1/4"













16"









10







Flanged

Trimless







39 1/2"L x 10"W





5



6"OC

6"OC

6"OC















8









4















11







1

12

3



2









24"L x 6"W Opening







PB4H3039BL =

(Flanged) Black/White

PB4H3039BTL =

(Trimless) Black



PB4H3039WL =

(Flanged) White

PB4H3039WTL =

(Trimless) White

Ceiling Cutout: 25 1/16" L x 7 3/16" W







Ordering Information: PAR30 MH Series B















Cat. No.

Lamp

Ceiling Trim

Aperture finish

PB4H3039BL

(4) 39W PAR30 MH

Overlap

Black with White Flange

PB4H3039WL

(4) 39W PAR30 MH

Overlap

White with White Flange

PB4H3039BTL

(4) 39W PAR30 MH

Trimless

Black

PB4H3039WTL

(4) 39W PAR30 MH

Trimless

White











Features

1.Aperture Frame: Provides clean support for lamp holders and overlapping flange or trimless installation. Extruded aluminum. Rigidly welded together on all corners.

2.Media Cartridge: Allows convenient loading and removal of up to two accessories. Easily installed and removed for lamping with a simple twisting motion. Constructed of formed aluminum.

3.Adjustable Ring: Allows 360° horizontal and min. 40°, max. 45° (on length); 30° (on width) vertical adjustment.

4.Tortionite Spring: For easy installation of aperture frame.

5.Housing: Die-formed 22 ga. steel. Finish: Black

6.Mounting Brackets: Adjustable vertically from inside or outside of housing.

7.Thermal Protector: Meets NEC and UL requirements.

8.Lampholder: Porcelain medium based; nickel plated screw shell. 5KV pulse rated, prewired with #18 SF-1 leads to ballast housing.

9.Ballast Housing: Die-formed 18 ga. steel.

10.Junction Box: 14 ga. steel, 4 x 3 1/2 x 2” box. Allows inspection from below.

11.Lamp and Accessory Support: .032" steel, flared for easy entry of Media Cartridge.

12.Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.

Electrical

Electronic Ballast: Individual for each lamp. High Power Factor. Input watts:

44, line current: .37 amps. Accessible from below.

UL listed for through branch circuit wiring with maximum of (8) no. 12 AWG, 90°C.

Finish

All painted finishes are powder coated baked enamel.

Options and Accessories

Accessories: 3 3/4" dia. series, filters, lenses, screens, and louvers (1) max.

Labels

UL/cUL (Suitable for Damp Location), I.B.E.W.

US Patent Pending.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
