Sidelyte Recessed Fluorescent SIS2GPF2FT

Page 1 of 2

Direct/Indirect 2' x 2' with Perforated Baskets



Static, 2 Lamp TT5

Direct/indirect side basket appearance.

Perforated mesh lamp shields with white acrylic overlays.

55.1% efficient (2 lamp 40W TT5).

Spacing to mounting ratio 1.4.

Only 6" deep body.

One-piece housing.

Ballast accessible from room side.

Perforated lamp shields hinge for easy relamping.

2 earthquake clips standard.

UL Listed twin knockout access plate.

Not suitable for continuous row mounting.

Mounting Methods

G exposed T-grid ceiling.







1/4" max.

































1-1/2" max.



























15/16"





24"











or 1"















































drywall kit (see options)



































Type "G"





Support



Fixture



(by others)





























Drywall Kit









(see options)





















Dry Wall (by others)























Order Catalog Number: FK92X2 .

2/06

Dimensions

6"

(152mm)

24" (610mm)

23-31/32"

(608mm)

5"

(127mm)

2"x 2-1/2" access plate with two K.O.s (7/8" dia.)

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte company

www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2006 a Genlyte company

Section 5/Folio M17-10

Page 1
Image 1

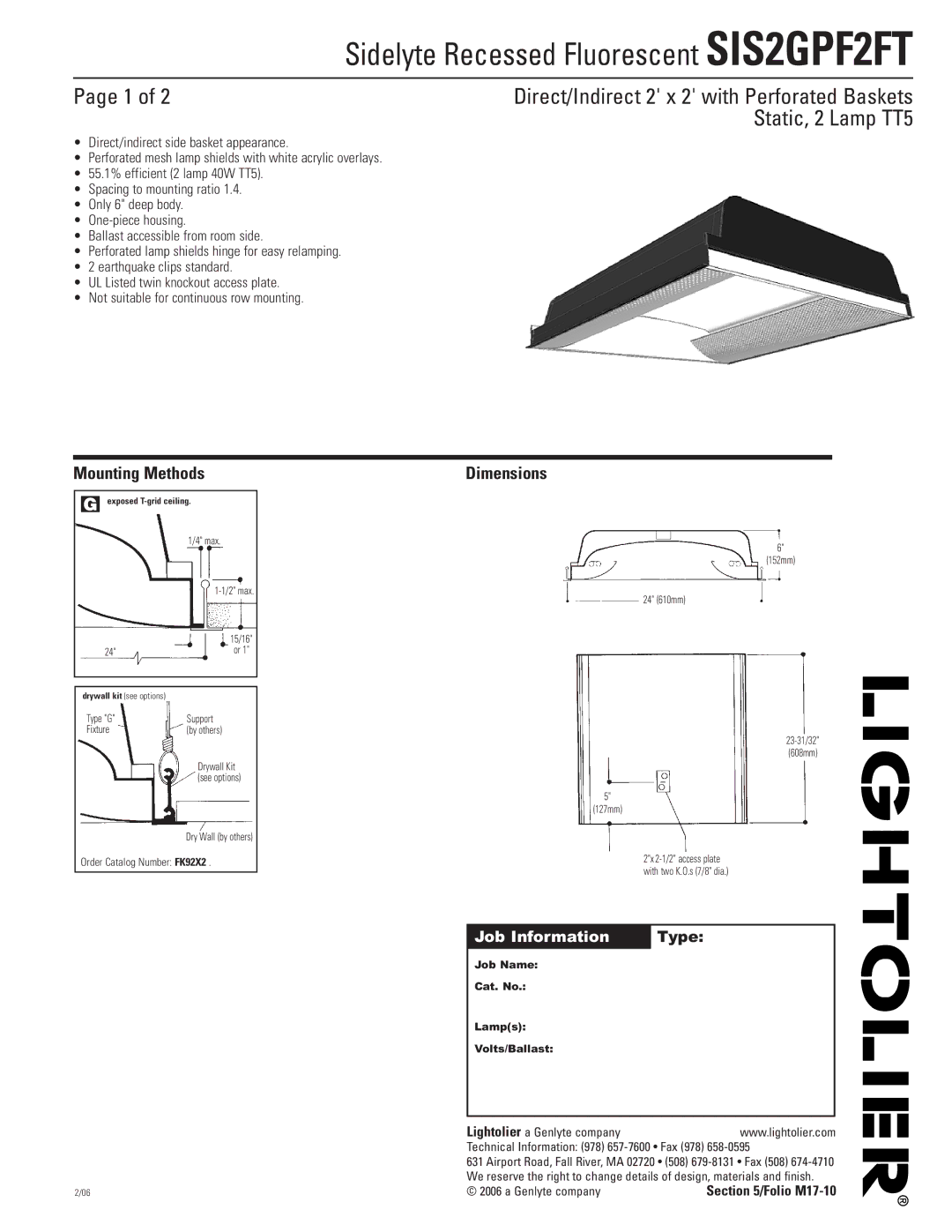

Lightolier SIS2GPF2FT dimensions Mounting Methods, Dimensions, Job Information Type

SIS2GPF2FT specifications

The Lightolier SIS2GPF2FT represents a significant advancement in modern lighting design, combining energy efficiency with cutting-edge technology to deliver superior performance for various applications. Known for its versatility and high-quality illumination, the SIS2GPF2FT is an ideal choice for both commercial and educational environments, enhancing the aesthetic and functional aspects of the spaces it occupies.

One of the standout features of the SIS2GPF2FT is its dual-lamp configuration, allowing for a flexible lighting solution that can easily adapt to different space requirements. This system supports two 4-foot fluorescent lamps, which provide ample brightness while maintaining a low profile. The fixture's design ensures that it can seamlessly integrate into various ceiling types, including recessed and suspended installations.

In terms of efficiency, the SIS2GPF2FT utilizes advanced electronic ballast technology. This not only promotes energy savings but also reduces flicker, providing a more stable light output that is easier on the eyes. The electronic ballast promotes longer lamp life, which translates into less frequent replacements and reduced maintenance costs—a significant benefit for facilities with large lighting needs.

The housing of the SIS2GPF2FT is designed for durability and ease of installation. Constructed from high-quality materials, it is both lightweight and robust, ensuring that it can withstand the rigors of everyday use while maintaining its aesthetic appeal. The fixture's sleek, modern design is complemented by optional lens covers that diffuse light evenly, minimizing glare and enhancing visual comfort in workspaces.

Another notable aspect of the SIS2GPF2FT is its compatibility with a range of control systems, making it ideal for spaces that require dynamic lighting adjustments. This flexibility allows organizations to optimize their lighting configuration, supporting everything from energy-saving routines to customized ambient settings.

Finally, the SIS2GPF2FT is designed with the environment in mind. By adhering to strict energy efficiency standards, it contributes to LEED certification for buildings, supporting sustainable design principles. This not only benefits the planet but also enhances the reputation of organizations that prioritize environmentally-friendly practices.

In summary, the Lightolier SIS2GPF2FT is a prime example of innovative lighting technology, combining efficiency, versatility, and durability into a single fixture. Its ability to adapt to various environments and its compatibility with modern control systems make it a preferred choice for intelligent lighting solutions in today's buildings.
