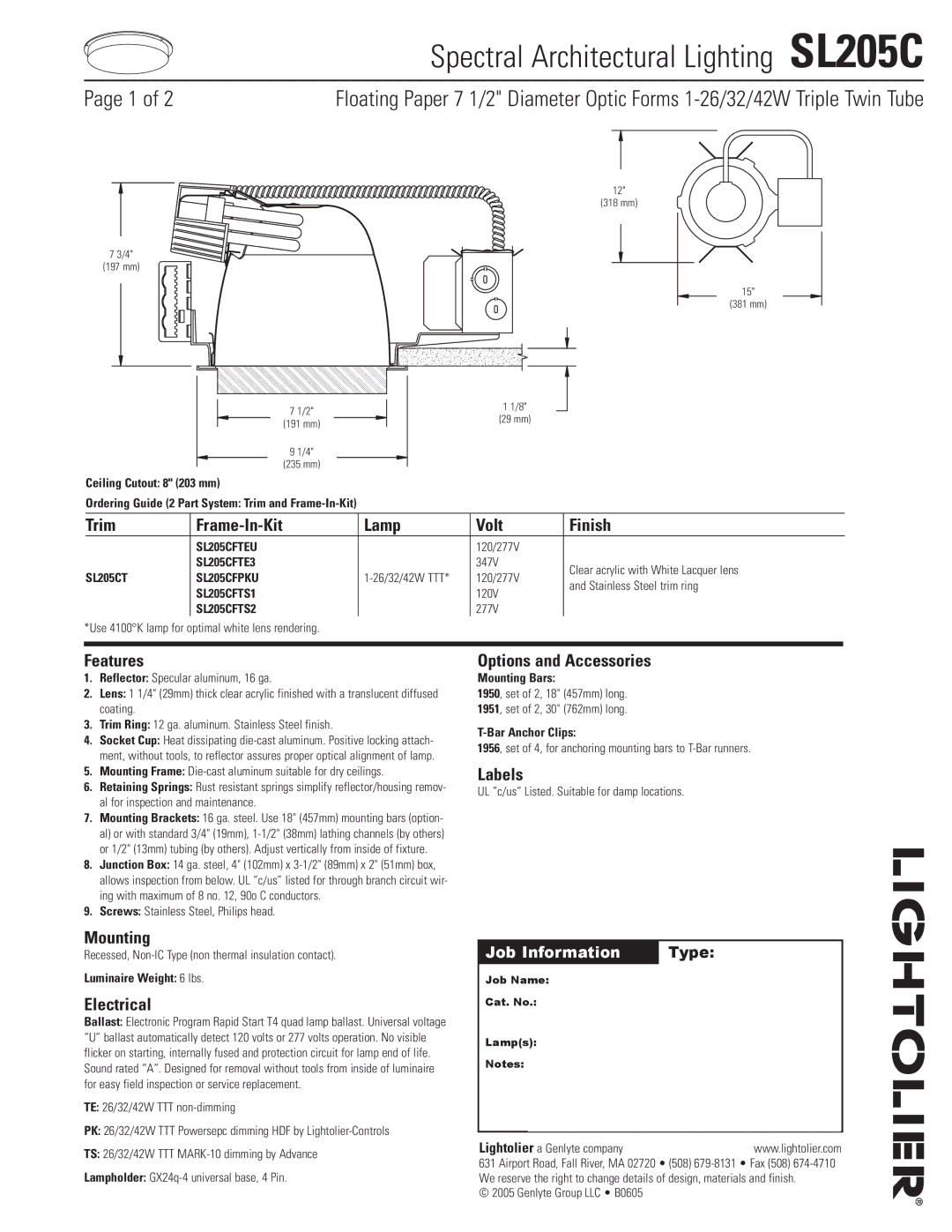

	Spectral Architectural Lighting SL205C
Page 1 of 2	Floating Paper 7 1/2" Diameter Optic Forms 1-26/32/42W Triple Twin Tube

73/4"

(197 mm)

7 1/2"

(191 mm)

9 1/4"

(235 mm)

Ceiling Cutout: 8" (203 mm)

12"

(318 mm)

15"

(381 mm)

11/8" (29 mm)

Ordering Guide (2 Part System: Trim and Frame-In-Kit)

Trim	Frame-In-Kit	Lamp	Volt	Finish
	SL205CFTEU		120/277V
	SL205CFTE3		347V	Clear acrylic with White Lacquer lens
SL205CT	SL205CFPKU	1-26/32/42W TTT*	120/277V
				and Stainless Steel trim ring
	SL205CFTS1		120V
	SL205CFTS2		277V

*Use 4100°K lamp for optimal white lens rendering.

Features

1.Reflector: Specular aluminum, 16 ga.

2.Lens: 1 1/4" (29mm) thick clear acrylic finished with a translucent diffused coating.

3.Trim Ring: 12 ga. aluminum. Stainless Steel finish.

4.Socket Cup: Heat dissipating die-cast aluminum. Positive locking attach- ment, without tools, to reflector assures proper optical alignment of lamp.

5.Mounting Frame: Die-cast aluminum suitable for dry ceilings.

6.Retaining Springs: Rust resistant springs simplify reflector/housing remov- al for inspection and maintenance.

7.Mounting Brackets: 16 ga. steel. Use 18" (457mm) mounting bars (option- al) or with standard 3/4" (19mm), 1-1/2" (38mm) lathing channels (by others) or 1/2" (13mm) tubing (by others). Adjust vertically from inside of fixture.

8.Junction Box: 14 ga. steel, 4" (102mm) x 3-1/2" (89mm) x 2" (51mm) box, allows inspection from below. UL “c/us” listed for through branch circuit wir- ing with maximum of 8 no. 12, 90o C conductors.

9.Screws: Stainless Steel, Philips head.

Mounting

Recessed, Non-IC Type (non thermal insulation contact).

Luminaire Weight: 6 lbs.

Electrical

Ballast: Electronic Program Rapid Start T4 quad lamp ballast. Universal voltage “U” ballast automatically detect 120 volts or 277 volts operation. No visible flicker on starting, internally fused and protection circuit for lamp end of life. Sound rated “A”. Designed for removal without tools from inside of luminaire for easy field inspection or service replacement.

TE: 26/32/42W TTT non-dimming

PK: 26/32/42W TTT Powersepc dimming HDF by Lightolier-Controls

TS: 26/32/42W TTT MARK-10 dimming by Advance

Lampholder: GX24q-4 universal base, 4 Pin.

Options and Accessories

Mounting Bars:

1950, set of 2, 18" (457mm) long.

1951, set of 2, 30" (762mm) long.

T-Bar Anchor Clips:

1956, set of 4, for anchoring mounting bars to T-Bar runners.

Labels

UL “c/us” Listed. Suitable for damp locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

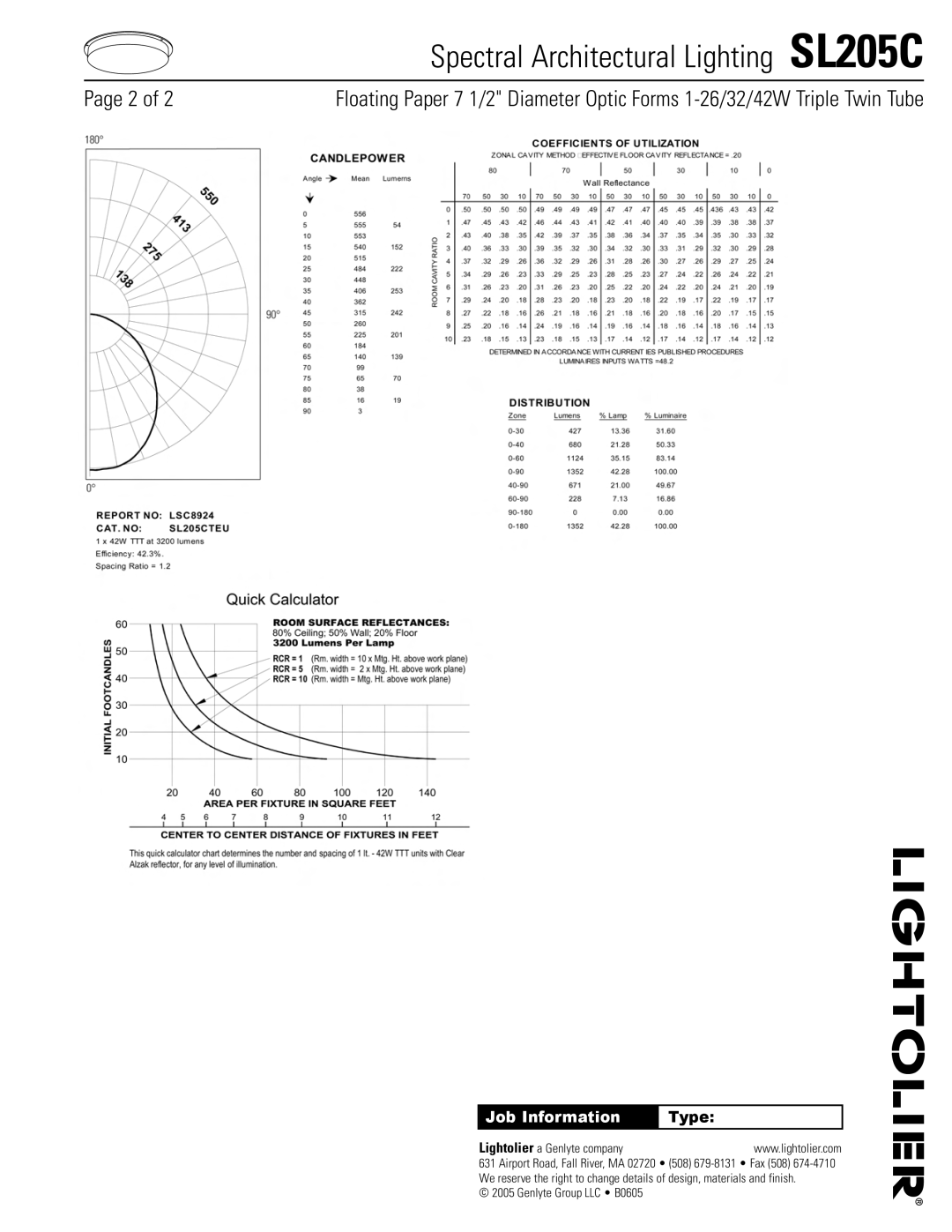

© 2005 Genlyte Group LLC • B0605
