SECTION 6/Folio N30-10



CLEANGUARD WET LOCATION WES SERIES 1X4

Page 1 of 2

1' x 4' RECESSED FLUORESCENT, FOR WET LOCATIONS, COVERED CEILING USE



1 OR 2 LAMPS, T8 OR T12

Features

UL and C-UL Listed for wet or damp locations for covered ceiling use.

Full perimeter gasketing (closed cell Neoprene) between door frame and lens, between housing and door frame.

Door frame is post painted, baked acrylic enamel.

4-3/4" deep body.

64.6% efficient (T8).

Turned up edges for safe handling.

Fixture ends turned-in for safe handling.

Mitered corner steel lens frame.

Spring loaded rooster head latches.

18 gauge steel hinges.

Flat and regressed aluminum doors available.

MOUNTING METHODS

exposed T-grid ceiling (with flat steel frame)

1/4" max.

1-1/2" max.

12"

15/16" or 1"

drywall kit (see options)

Support

Type “G” (by others)

FIxture

Drywall Kit

(See Options)

Drywall

(by others)

Ceiling Opening

15/16"

12-5/16" x 48-5/16"



DIMENSIONS

F

plaster ceiling/flanged.

(with regressed aluminum frame)

Plaster

Opening

12-1/8"

1-1/8" min.

3-3/4" max.

13/16"

12-11/16"

gasketing detail

Fixture

Gasketing

(Close Cell Neoprene)

Lens

Door Frame

Job Information

Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Companywww.lightolier.com Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) A0902

Page 1
Image 1

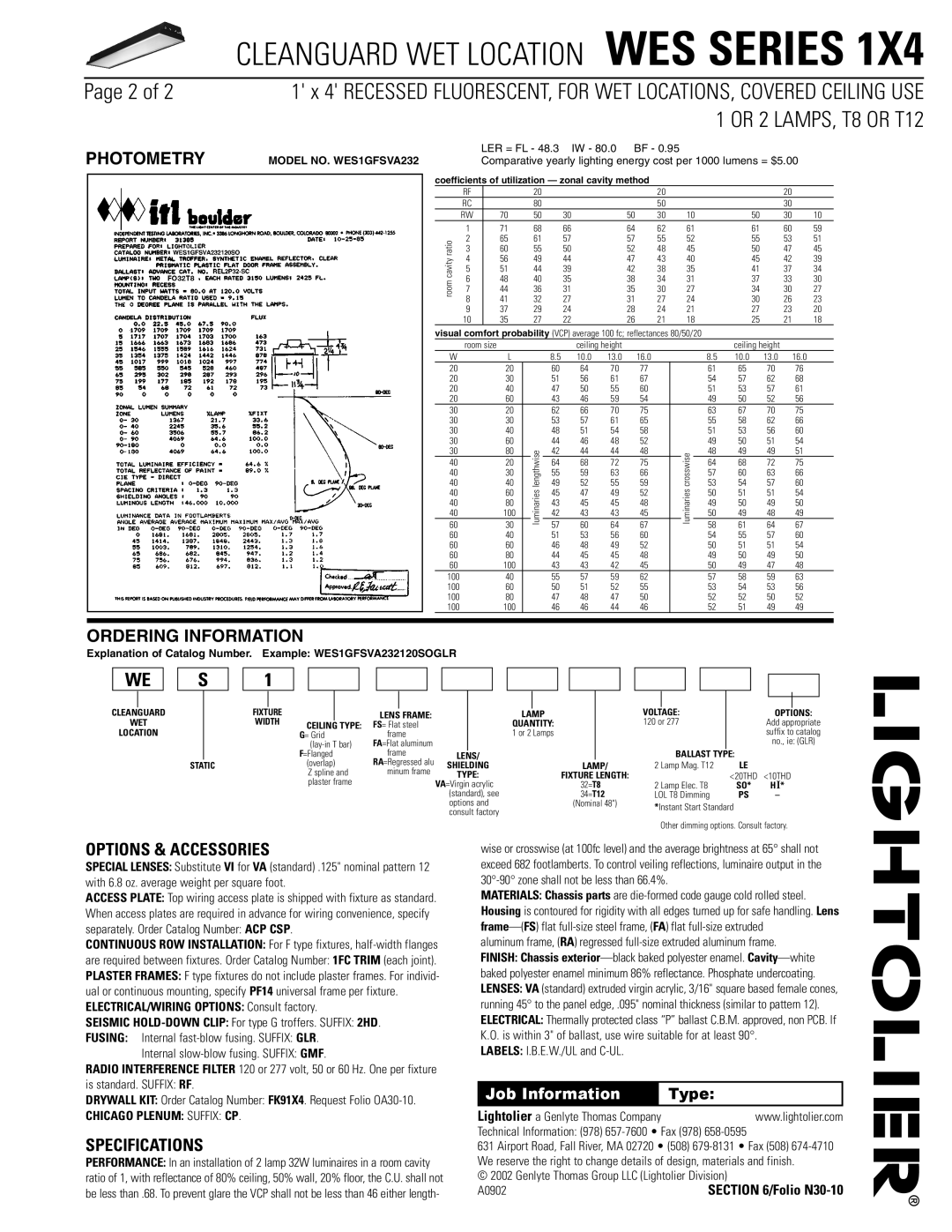

Lightolier WES SERIES 1X4 dimensions Mounting Methods, Dimensions, Job Information Type

WES SERIES 1X4 specifications
