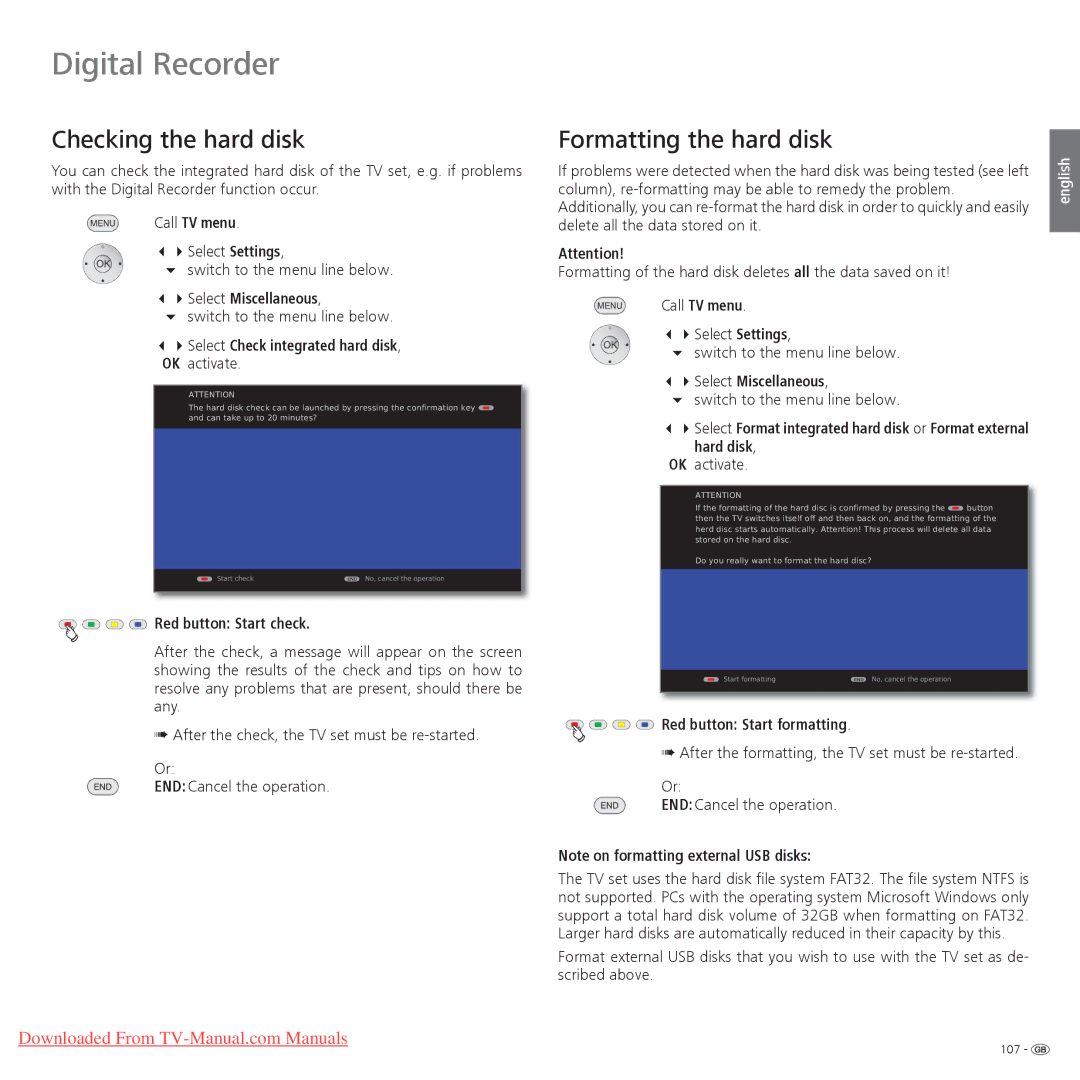

Loewe TV Manual and Troubleshooting for Individual Compose Series

Digital Recorder

Checking the hard disk

You can check the integrated hard disk of the TV set, e.g. if problems with the Digital Recorder function occur.

Call TV menu.

Select Settings,

switch to the menu line below.

Select Miscellaneous,

switch to the menu line below.

Select Check integrated hard disk, OKactivate.

ATTENTION

The hard disk check can be launched by pressing the confirmation key and can take up to 20 minutes?

Start check No, cancel the operation

Red button: Start check.

After the check, a message will appear on the screen showing the results of the check and tips on how to resolve any problems that are present, should there be any.

➠After the check, the TV set must be re-started.

Or:

END: Cancel the operation.

Formatting the hard disk

If problems were detected when the hard disk was being tested (see left column), re-formatting may be able to remedy the problem. Additionally, you can re-format the hard disk in order to quickly and easily delete all the data stored on it.

Attention!

Formatting of the hard disk deletes all the data saved on it!

Call TV menu.

Select Settings,

switch to the menu line below.

Select Miscellaneous,

switch to the menu line below.

Select Format integrated hard disk or Format external hard disk,

OKactivate.

ATTENTION

If the formatting of the hard disc is confirmed by pressing the button then the TV switches itself off and then back on, and the formatting of the herd disc starts automatically. Attention! This process will delete all data stored on the hard disc.

Do you really want to format the hard disc?

Start formatting No, cancel the operation

Red button: Start formatting.

➠After the formatting, the TV set must be re-started.

Or:

END: Cancel the operation.

Note on formatting external USB disks:

The TV set uses the hard disk file system FAT32. The file system NTFS is not supported. PCs with the operating system Microsoft Windows only support a total hard disk volume of 32GB when formatting on FAT32. Larger hard disks are automatically reduced in their capacity by this.

Format external USB disks that you wish to use with the TV set as de- scribed above.

english
