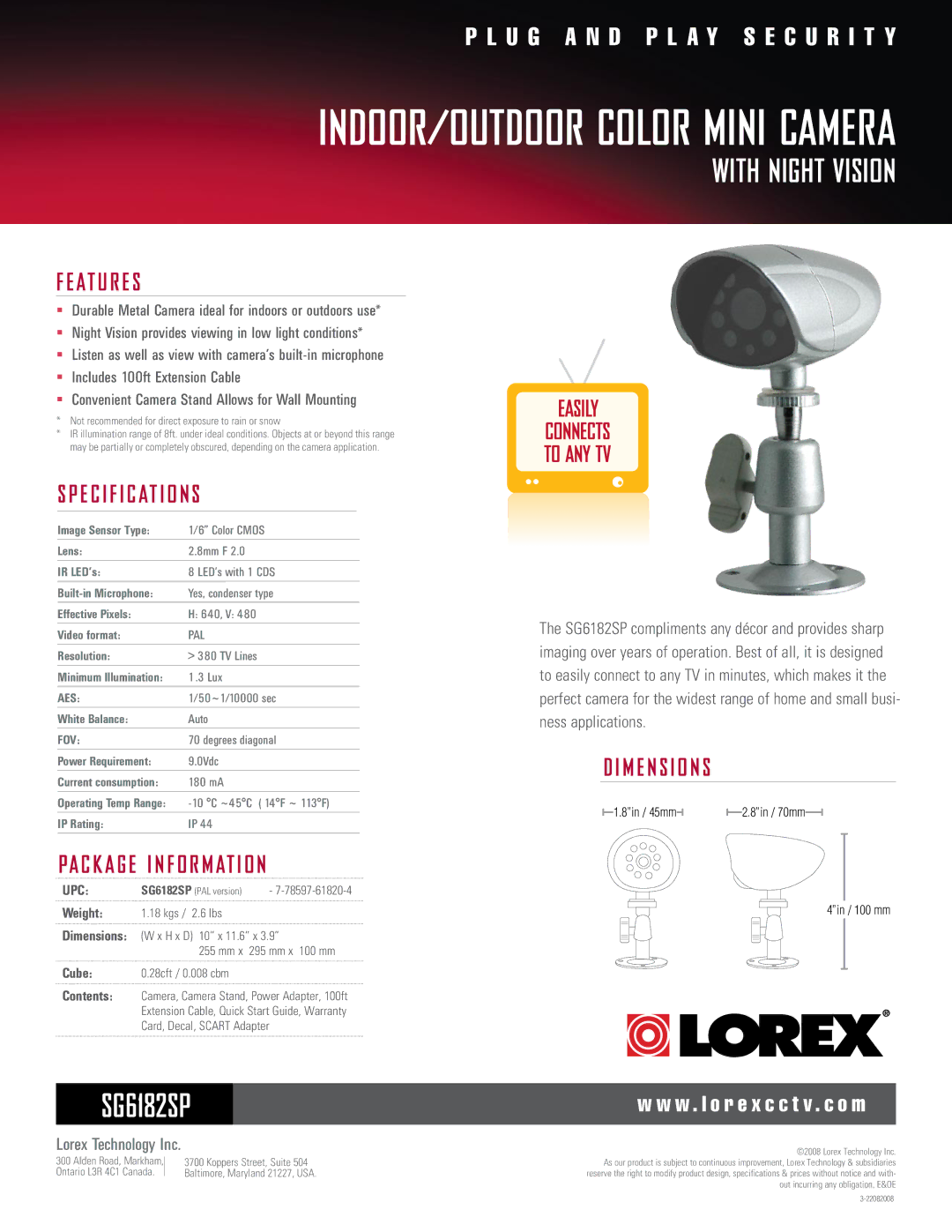

LOREX Technology SG6182SP specifications E c i f i c at i o n s, M e n s i o n s

P L U G A N D P L A Y S E C U R I T Y

INDOOR/OUTDOOR COLOR MINI CAMERA

with NIGHT VISION

F E AT U R E S

ßDurable Metal Camera ideal for indoors or outdoors use*

ßNight Vision provides viewing in low light conditions*

ßListen as well as view with camera’s built-in microphone

ßIncludes 100ft Extension Cable

ßConvenient Camera Stand Allows for Wall Mounting

*Not recommended for direct exposure to rain or snow

*IR illumination range of 8ft. under ideal conditions. Objects at or beyond this range may be partially or completely obscured, depending on the camera application.

S p e c i f i c at i o n s

Image Sensor Type:	1/6” Color CMOS
Lens:	2.8mm F 2.0
IR LED’s:	8 LED’s with 1 CDS
Built-in Microphone:	Yes, condenser type
Effective Pixels:	H: 640, V: 480
Video format:	PAL
Resolution:	> 380 TV Lines
Minimum Illumination:	1.3 Lux
AES:	1/50~1/10000 sec
White Balance:	Auto
FOV:	70 degrees diagonal
Power Requirement:	9.0Vdc
Current consumption:	180 mA
Operating Temp Range:	-10 °C ~45°C ( 14°F ~ 113°F)
IP Rating:	IP 44

pa c k a g e I n f o r m at i o n

UPC:	SG6182SP (PAL version)	- 7-78597-61820-4
Weight:	1.18 kgs / 2.6 lbs
Dimensions:	(W x H x D) 10” x 11.6” x 3.9”
	255 mm x 295 mm x 100 mm
Cube:	0.28cft / 0.008 cbm
Contents:	Camera, Camera Stand, Power Adapter, 100ft
	Extension Cable, Quick Start Guide, Warranty

Card, Decal, SCART Adapter

The SG6182SP compliments any décor and provides sharp imaging over years of operation. Best of all, it is designed to easily connect to any TV in minutes, which makes it the perfect camera for the widest range of home and small busi- ness applications.

d i m e n s i o n s

1.8”in / 45mm 2.8”in / 70mm

4”in / 100 mm

SG6182SP		w w w . l o r e x c c t v . c o m
Lorex Technology Inc.		©2008 Lorex Technology Inc.
300 Alden Road, Markham,	3700 Koppers Street, Suite 504
		As our product is subject to continuous improvement, Lorex Technology & subsidiaries
Ontario L3R 4C1 Canada.	Baltimore, Maryland 21227, USA.	reserve the right to modify product design, specifications & prices without notice and with-

out incurring any obligation. E&OE

3-22082008
