Magnadyne MV-VS2 user manual Installation, Surface Mounting, Panel Mounting

Model: MV-VS2

Installation and User Manual

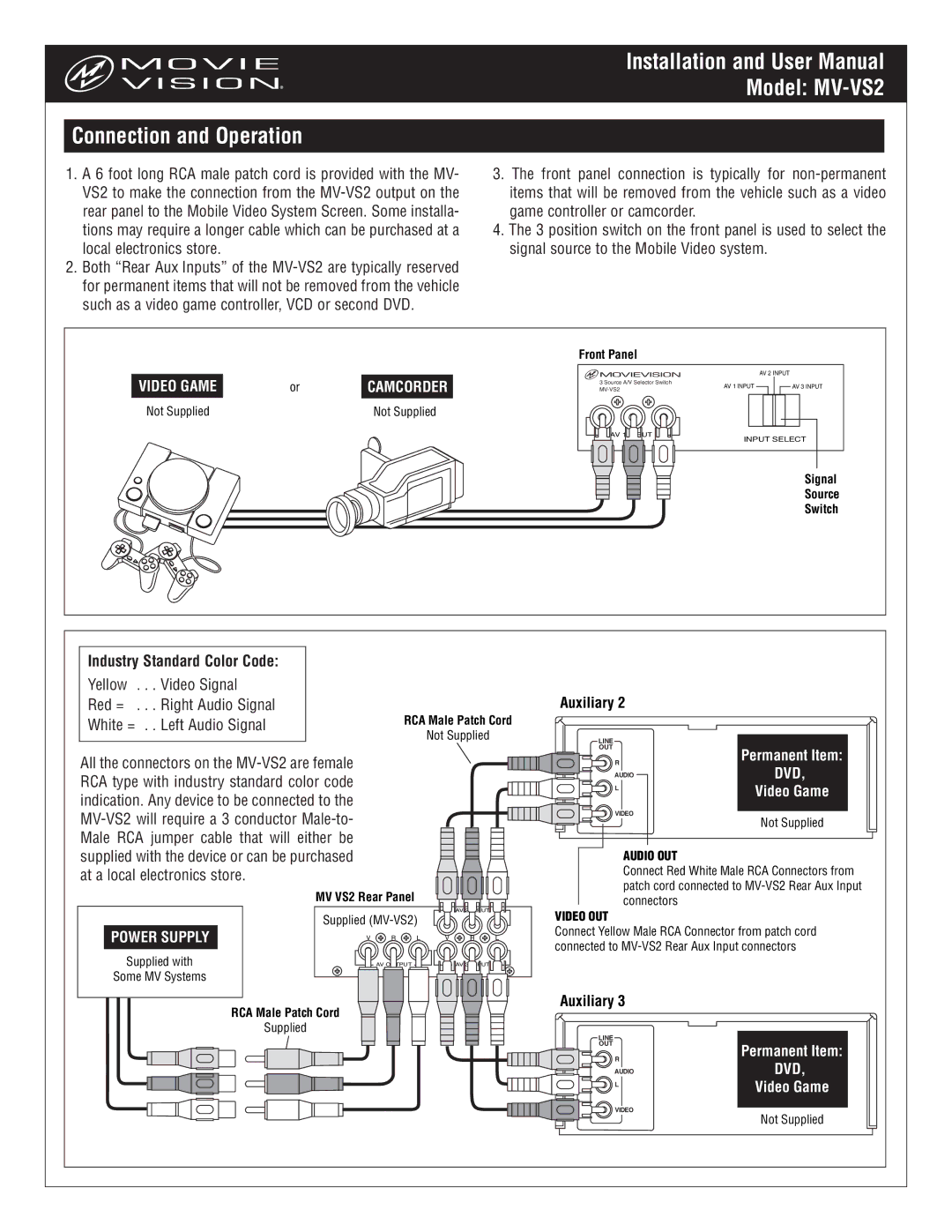

The MV-VS2 is a mechanical video and audio switching device used to increase the number of inputs to the Mobile Video System providing greater system flexibility and ease of use. Follow the enclosed diagrams to make proper connections.

Installation

The MV-VS2 has 3-way mounting capability. It can be mounted under the dash or under a ledge, on the floor or on top of a ledge and it can also be panel mounted in a cabinet, console or wall.

Installation Notes:

1.Choose a mounting location that provides easy access by the end user.

2.Choose a solid mounting surface that will withstand the pulling and pushing force when the end user is plugging in and disconnecting devices.

3.If panel mounting, follow the recommendations in point #2. The mounting surface must be able to withstand the pulling and pushing force.

Surface Mounting:

Use the “L” brackets provided to secure the MV-VS2 into place. The brackets can be placed at the top of the MV-VS2 cabinet for under dash or under ledge mounting or at the bottom of the cab- inet for floor or surface mounting. DO NOT mount the MV-VS2 on uneven surfaces which will cause the brackets or chassis to bend or flex excessively.

Panel Mounting:

Remove the “L” brackets from the MV-VS2 housing and slip on the panel mount adapter. Use the screws you removed from the “L” brackets to secure the panel mount adapter to the MV-VS2 chassis. You must cut a hole in the mounting surface approximately 5” x 1-3/4” in size.

Under Dash Mounting

								AV	2 INPUT	3 INPUT
									AV
							AV	1 INPUT
				tor	Swi	tch
		Selec
	ce A/V
3 Sour
-VS2
MV									SELECT
								INPUT
	AV		1 INPUT
Surface Mounting
								AV	2 INPUT	3 INPUT
									AV
							AV	1 INPUT
				tor	Swi	tch
		Selec
	ce A/V
3 Sour
-VS2									CT
MV
									SELE
								INPUT
	AV		1 INPUT

Hole Opening

13/4"

5"

Panel Mounting
									AV	2 INPUT	3 INPUT
										AV
								AV	1 INPUT
						tor	Swi	tch
			Selec
	ce	A/V
3 Sour
-VS2										CT
MV
										SELE
									INPUT
		AV		1	INPUT

© 2006 Copyright Magnadyne Corporation MV-VS2-INS Rev. A 2-15-06
