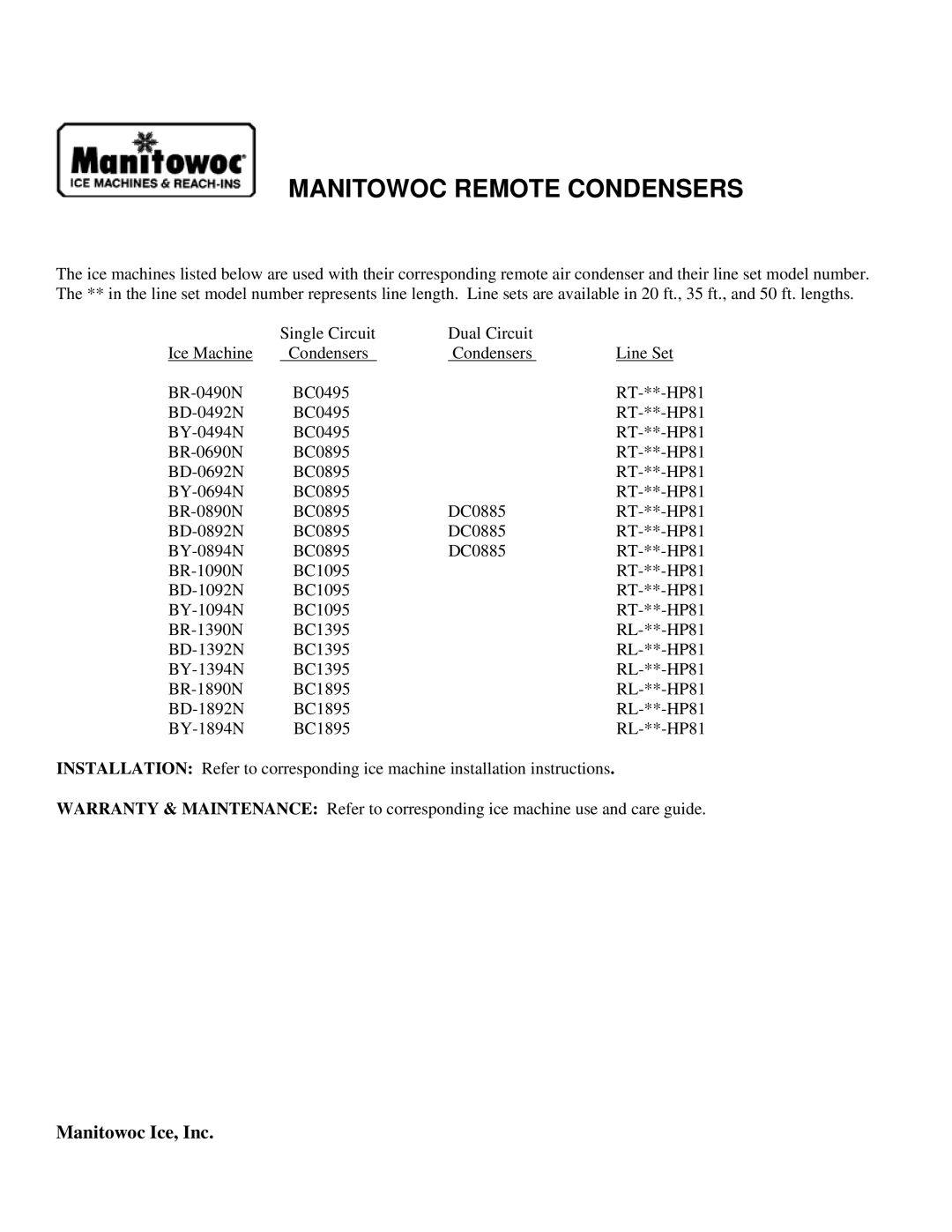

MANITOWOC REMOTE CONDENSERS

The ice machines listed below are used with their corresponding remote air condenser and their line set model number. The ** in the line set model number represents line length. Line sets are available in 20 ft., 35 ft., and 50 ft. lengths.

Ice Machine

Single Circuit

Dual Circuit



Condensers

Condensers

Line Set

BR-0490N

BC0495



RT-**-HP81

BD-0492N

BC0495



RT-**-HP81

BY-0494N

BC0495



RT-**-HP81

BR-0690N

BC0895



RT-**-HP81

BD-0692N

BC0895



RT-**-HP81

BY-0694N

BC0895



RT-**-HP81

BR-0890N

BC0895

DC0885

RT-**-HP81

BD-0892N

BC0895

DC0885

RT-**-HP81

BY-0894N

BC0895

DC0885

RT-**-HP81

BR-1090N

BC1095



RT-**-HP81

BD-1092N

BC1095



RT-**-HP81

BY-1094N

BC1095



RT-**-HP81

BR-1390N

BC1395



RL-**-HP81

BD-1392N

BC1395



RL-**-HP81

BY-1394N

BC1395



RL-**-HP81

BR-1890N

BC1895



RL-**-HP81

BD-1892N

BC1895



RL-**-HP81

BY-1894N

BC1895



RL-**-HP81

INSTALLATION: Refer to corresponding ice machine installation instructions.

WARRANTY & MAINTENANCE: Refer to corresponding ice machine use and care guide.

Manitowoc Ice, Inc.

Page 1
Image 1
Manitowoc Ice BR-0490N installation instructions Manitowoc Remote Condensers, Manitowoc Ice, Inc

BR-0490N specifications

The Manitowoc Ice BR-0490N is a high-performance ice maker renowned for its reliable production and efficient design. Aimed primarily at commercial establishments such as restaurants, bars, and hotels, this model stands out due to its superior capabilities and advanced features.

One of the key characteristics of the BR-0490N is its impressive ice production capacity. This machine can produce up to 490 pounds of clear, cubed ice per day, making it ideal for high-demand environments. Featuring a durable stainless-steel exterior, the unit not only ensures longevity but also maintains a sleek appearance that complements various settings.

The BR-0490N employs Manitowoc's innovative ice-making technology, which includes an efficient air-cooled condenser. This system allows for a straightforward installation process while minimizing energy consumption, making it environmentally friendly and cost-effective. In addition, the unit focuses on maximizing productivity while reducing operating costs, ensuring businesses can maintain a high volume of ice output without exorbitant utility bills.

In terms of user convenience, the BR-0490N features a built-in storage bin that can accommodate up to 250 pounds of ice. This allows operators to have a ready supply of ice on hand, minimizing the need for frequent refills. The machine is designed with a straightforward interface, making it easy for staff to operate and monitor ice production levels.

Another notable feature of the BR-0490N is its advanced cleaning and maintenance capabilities. The machine is equipped with programmable cleaning cycles that simplify the upkeep process, ensuring that the unit remains sanitary and continues to produce high-quality ice. This proactive maintenance feature is vital in maintaining ice hygiene standards, which is crucial for the food service industry.

Furthermore, the Manitowoc Ice BR-0490N's compact footprint allows it to fit seamlessly into various installation spaces, making it an ideal choice for businesses with limited storage areas. Its versatility is an added advantage, as it can be paired with different ice dispensers according to user needs.

In summary, the Manitowoc Ice BR-0490N combines high ice production capacity, energy-efficient technology, and user-friendly features. Its robust design, advanced functionalities, and ease of maintenance make it a standout choice for any commercial establishment in need of reliable ice production.
