Manitowoc Ice installation instructions K00047 ADAPTER KIT, Installation Instructions

K00047 ADAPTER KIT

Installation Instructions

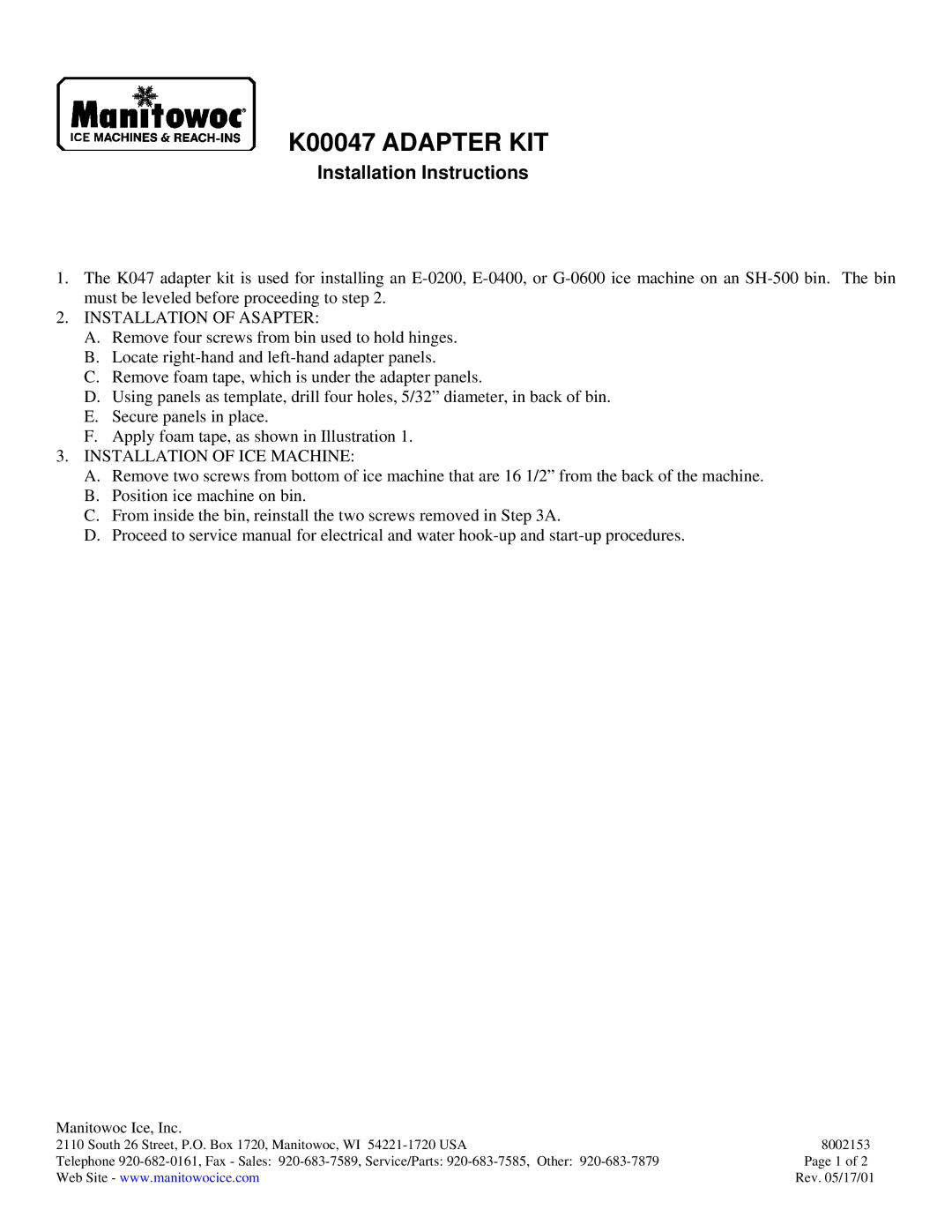

1.The K047 adapter kit is used for installing an E-0200, E-0400, or G-0600 ice machine on an SH-500 bin. The bin must be leveled before proceeding to step 2.

2.INSTALLATION OF ASAPTER:

A.Remove four screws from bin used to hold hinges.

B.Locate right-hand and left-hand adapter panels.

C.Remove foam tape, which is under the adapter panels.

D.Using panels as template, drill four holes, 5/32” diameter, in back of bin.

E.Secure panels in place.

F.Apply foam tape, as shown in Illustration 1.

3.INSTALLATION OF ICE MACHINE:

A.Remove two screws from bottom of ice machine that are 16 1/2” from the back of the machine.

B.Position ice machine on bin.

C.From inside the bin, reinstall the two screws removed in Step 3A.

D.Proceed to service manual for electrical and water hook-up and start-up procedures.
