K00384 Ice Machine Stand
Installation Instructions
WARNING
The stand must be secured to the wall with the bracket and fasteners provided in this kit. The security bracket must be attached to two studs.
The ice machine must be secured to the stand top cover with the supplied bolts (4) and washers (4). The stand top cover must be secured to the stand with the screws (2) provided.
Material List
TOP |
| REAR | FRONT | BRACE | SIDE | CAP | TOP |
PANEL |
| PANEL | PANEL | PANEL | PANEL | PLUG | COVER |
|
|
|
| (2) | (2) | (4) | SCREWS |
|
|
|
|
|
|
| (2) |
|
|
|
|
|
|
| SECURITY |
|
|
|
|
|
|
| BRACKET |
| LEG | BASE |
| TOP | BOLT (4) |
| BOLT (2) |
SUPPORT |
|
| WASHER (2) | ||||
ANGLE | (4) |
|
| COVER | WASHER (4) |
| NUT (2) |
(2) |
|
|
|
|
|
|
|
Cabinet Assembly
Step 1 - Slide side panels onto | Step 2 - Place support angles | Step 3 - Screw legs into the base | |
base. | under the side panels. | (through support angles & side panels). | |

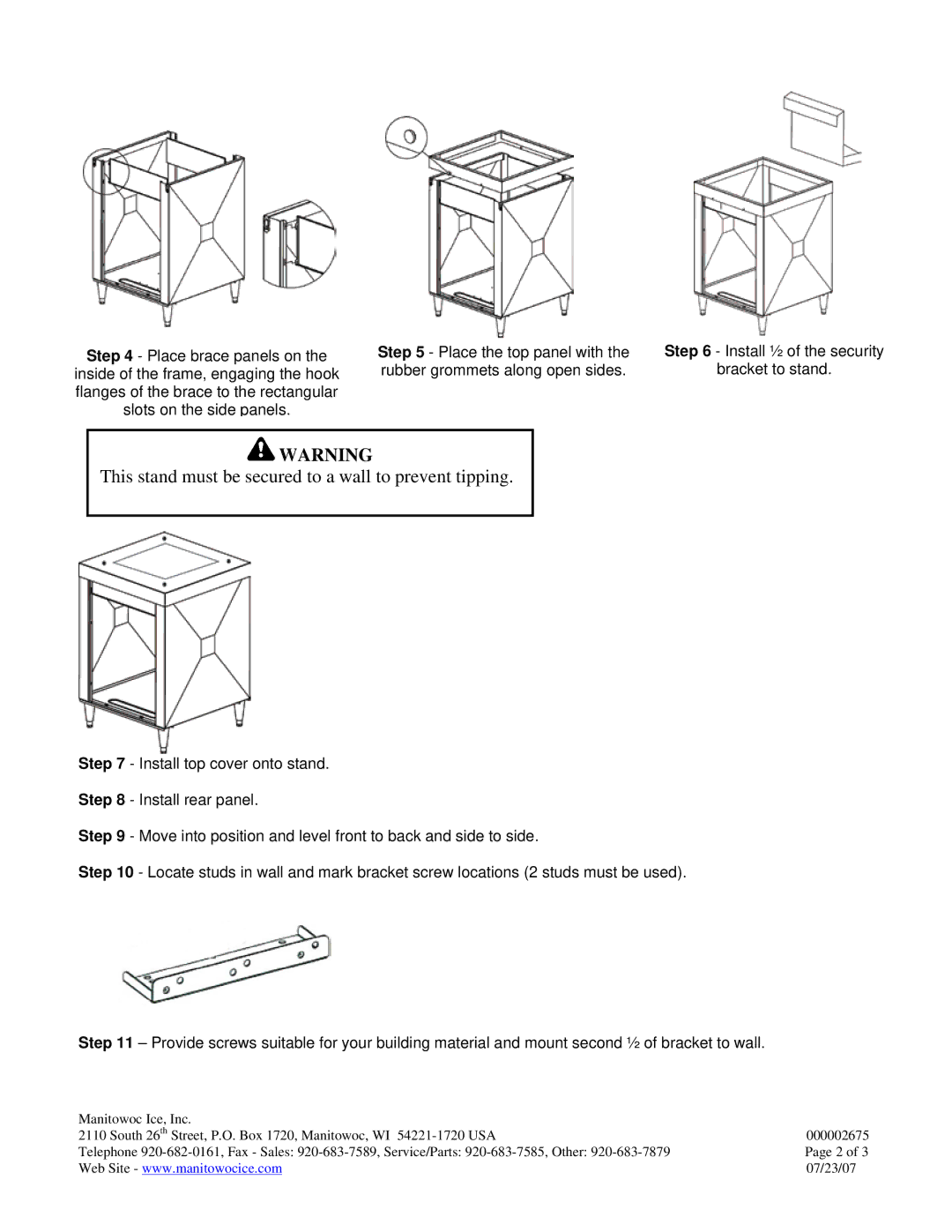

Manitowoc Ice, Inc. |
|
|
|
2110 South 26th Street, P.O. Box 1720, Manitowoc, WI |
| 000002675 | |
Telephone | Page 1 of 3 | ||
Web Site - www.manitowocice.com |
|
| 07/23/07 |
