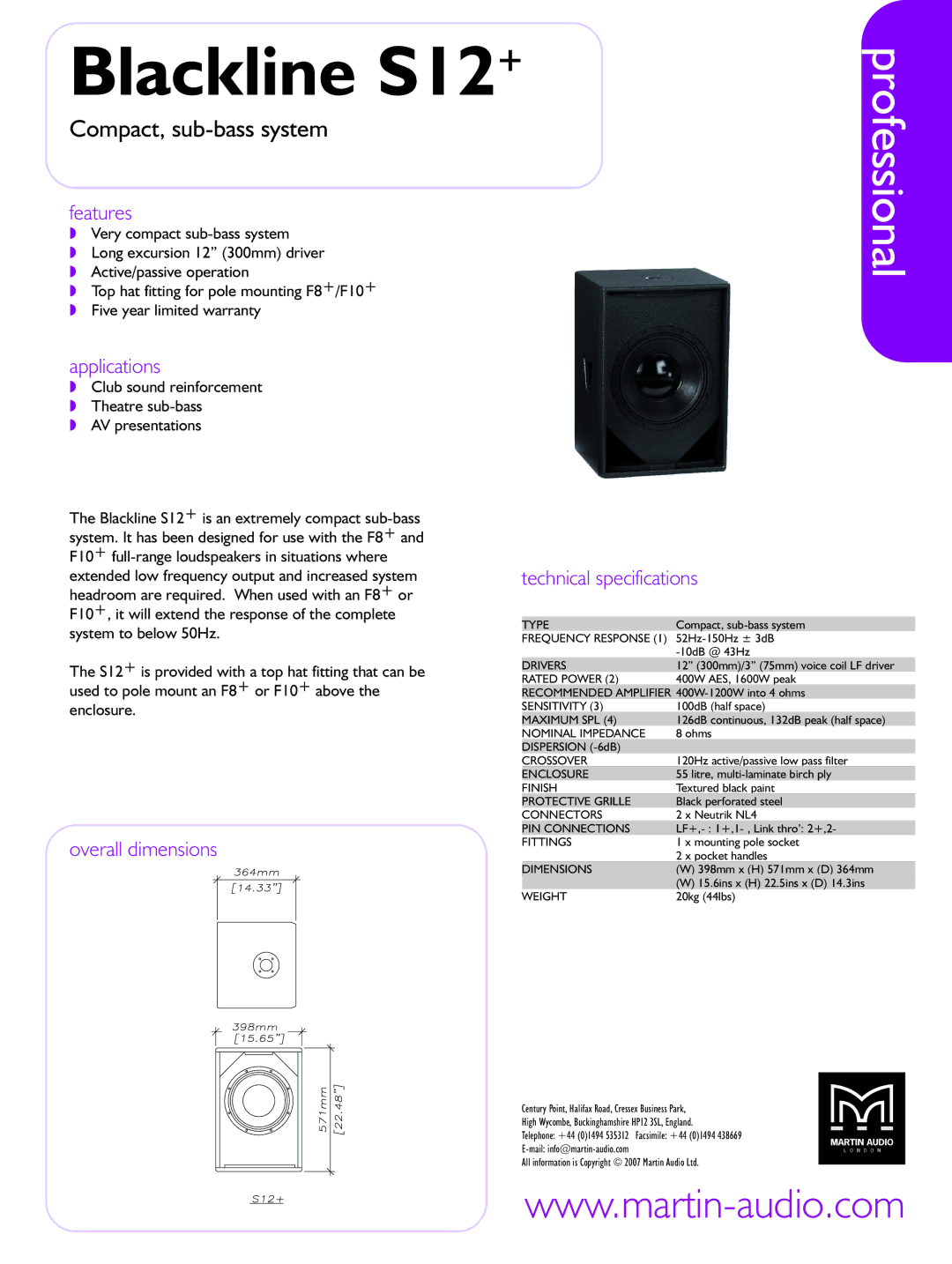

Blackline S12+
Compact, sub-bass system
features
Very compact sub-bass system
Long excursion 12” (300mm) driver
Active/passive operation
Top hat fitting for pole mounting F8+/F10+
Five year limited warranty
applications
Club sound reinforcement
Theatre sub-bass
AV presentations
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2007 Martin Audio Ltd.
The Blackline S12+is an extremely compact sub-bass
system. It has been designed for use with the F8+and
F10+full-range loudspeakers in situations where
extended low frequency output and increased system
headroom are required. When used with an F8+or
F10+, it will extend the response of the complete
system to below 50Hz.
The S12+is provided with a top hat fitting that can be
used to pole mount an F8+or F10+above the
enclosure.
www.martin-audio.com
overall dimensions
technical specifications
TYPE Compact, sub-bass system
FREQUENCY RESPONSE (1) 52Hz-150Hz ±3dB
-10dB @ 43Hz
DRIVERS 12” (300mm)/3” (75mm) voice coil LF driver
RATED POWER (2) 400W AES, 1600W peak
RECOMMENDED AMPLIFIER 400W-1200W into 4 ohms
SENSITIVITY (3) 100dB (half space)
MAXIMUM SPL (4) 126dB continuous, 132dB peak (half space)
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB)
CROSSOVER 120Hz active/passive low pass filter
ENCLOSURE 55 litre, multi-laminate birch ply
FINISH Textured black paint
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 2 x Neutrik NL4
PIN CONNECTIONS LF+,- : 1+,1- , Link thro’: 2+,2-
FITTINGS 1 x mounting pole socket
2 x pocket handles
DIMENSIONS (W) 398mm x (H) 571mm x (D) 364mm
(W) 15.6ins x (H) 22.5ins x (D) 14.3ins
WEIGHT 20kg (44lbs)
