Blackline S15+

Compact, vented sub-bass system

features

Compact vented sub-bass

Direct radiating 15” (380mm) driver

High temperature 4” (100mm) voice coil

Top hat fitting for pole mounting F12+/F15+

Five year limited warranty

applications

professional

Club sound reinforcement

Theatre sub-bass

AV presentations

The compact Blackline S15+ sub-bass system has been designed to be used with Blackline F12+ or F15+ full- range systems to extend and increase the total low frequency output power. The S15+ provides good bass punch from a new, long-excursion, 15” (380mm)/4” (100mm) voice coil driver with a water resistant cone and triple roll surround.

The S15+ is provided with a top hat fitting that can be used to pole mount an F10+ or F12+ above the enclosure.

overall dimensions

technical specifications

TYPE

Compact, vented sub-bass system

FREQUENCY RESPONSE (1)

45Hz-120Hz ± 3dB



-10dB @ 40Hz

DRIVERS

15” (380mm)/4” (100mm) voice coil LF driver

RATED POWER (2)

750W AES, 3000W peak

RECOMMENDED AMPLIFIER 600W-1500W into 4 ohms

SENSITIVITY (3)

101dB (half space)

MAXIMUM SPL (4)

129.5dB continuous, 135.5dB peak (half space)

NOMINAL IMPEDANCE

8 ohms

DISPERSION (-6dB)



CROSSOVER

120Hz active/passive low pass filter

ENCLOSURE

100 litre, multi-laminate birch ply

FINISH

Textured black paint

PROTECTIVE GRILLE

Black perforated steel

CONNECTORS

2 x Neutrik NL4

PIN CONNECTIONS

LF+,- : 1+,1- , Link thro’: 2+,2-

FITTINGS

1 x mounting pole socket



2 x pocket handles

DIMENSIONS

(W) 470mm x (H) 690mm x (D) 496mm



(W) 18.5ins x (H) 27.2ins x (D) 19.5ins

WEIGHT

38.5kg (84.5lbs)

Century Point, Halifax Road, Cressex Business Park, High Wycombe, Buckinghamshire HP12 3SL, England.

Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669

E-mail: info@martin-audio.com

All information is Copyright © 2007 Martin Audio Ltd.

www.martin-audio.com

Page 1

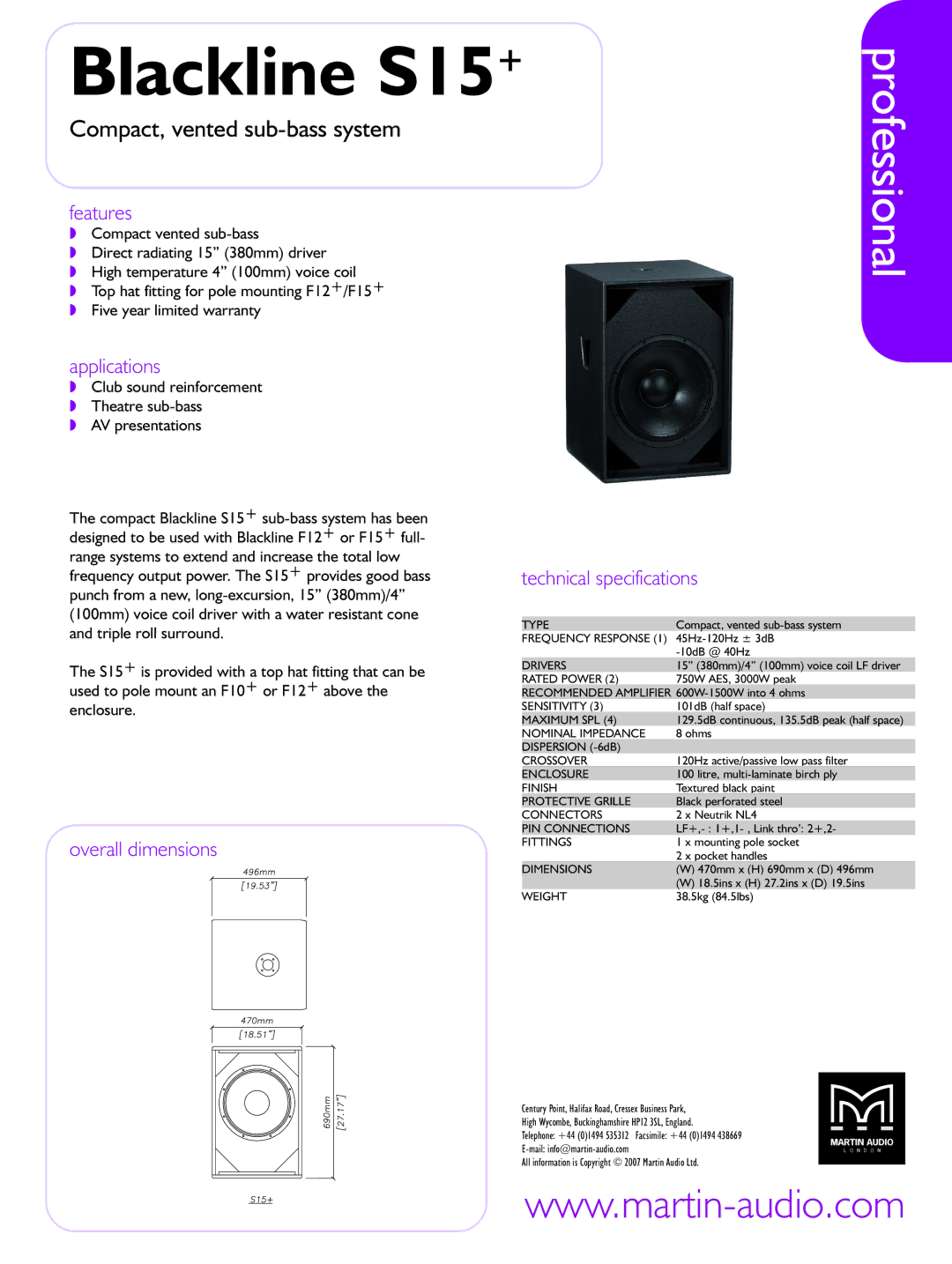

Image 1
Martin Audio technical specifications Blackline S15+, Professional, Compact, vented sub-bass system

S15+ specifications

The Martin Audio S15+ is a high-performance subwoofer designed for powerful low-frequency reproduction in various applications, including live sound, theatrical productions, and installations. Renowned for its quality and reliability, the S15+ continues Martin Audio's legacy of producing exceptional loudspeakers that meet the demanding needs of audio professionals.

One of the standout features of the S15+ is its dual 15-inch Neodymium drivers, which deliver impressive output and efficiency. This driver configuration allows the subwoofer to produce deep, impactful bass frequencies down to 30 Hz, ensuring a solid foundation for any audio system. Whether it’s the rumble of a cinematic soundtrack or the punch of a rock concert, the S15+ excels in providing dynamic range and clarity.

The S15+ is engineered with a unique rear-facing port design that enhances its low-frequency response while minimizing distortion. This design not only aids in extending the subwoofer's low-end performance but also ensures that the sound remains tight and articulate, even at high SPL levels. This is particularly crucial in demanding live sound environments where clarity and precision are vital.

In terms of build quality, the S15+ features a robust cabinet constructed from high-grade plywood, which contributes to its durability and resonance control. The enclosure is finished with a rugged, weather-resistant coating, making it suitable for both indoor and outdoor applications. Additionally, the subwoofer is equipped with threaded mounting points, facilitating easy rigging and installation.

The versatility of the S15+ is further enhanced by its compatibility with various Martin Audio systems, allowing integrators and sound engineers to configure the ideal setup for specific needs. It can be easily paired with full-range loudspeakers, creating a seamless integration that provides comprehensive coverage across the frequency spectrum.

The Martin Audio S15+ is a powerful subwoofer that combines cutting-edge technology with practical features, making it an ideal choice for professionals pursuing superior sound quality. Its performance, build quality, and design flexibility make it a valuable asset in any sound reinforcement scenario, providing the low-frequency support necessary for today's demanding audio environments. Whether in a concert setting, a corporate event, or a permanent installation, the S15+ represents a blend of innovation and reliability that professionals in the audio industry have come to trust.
