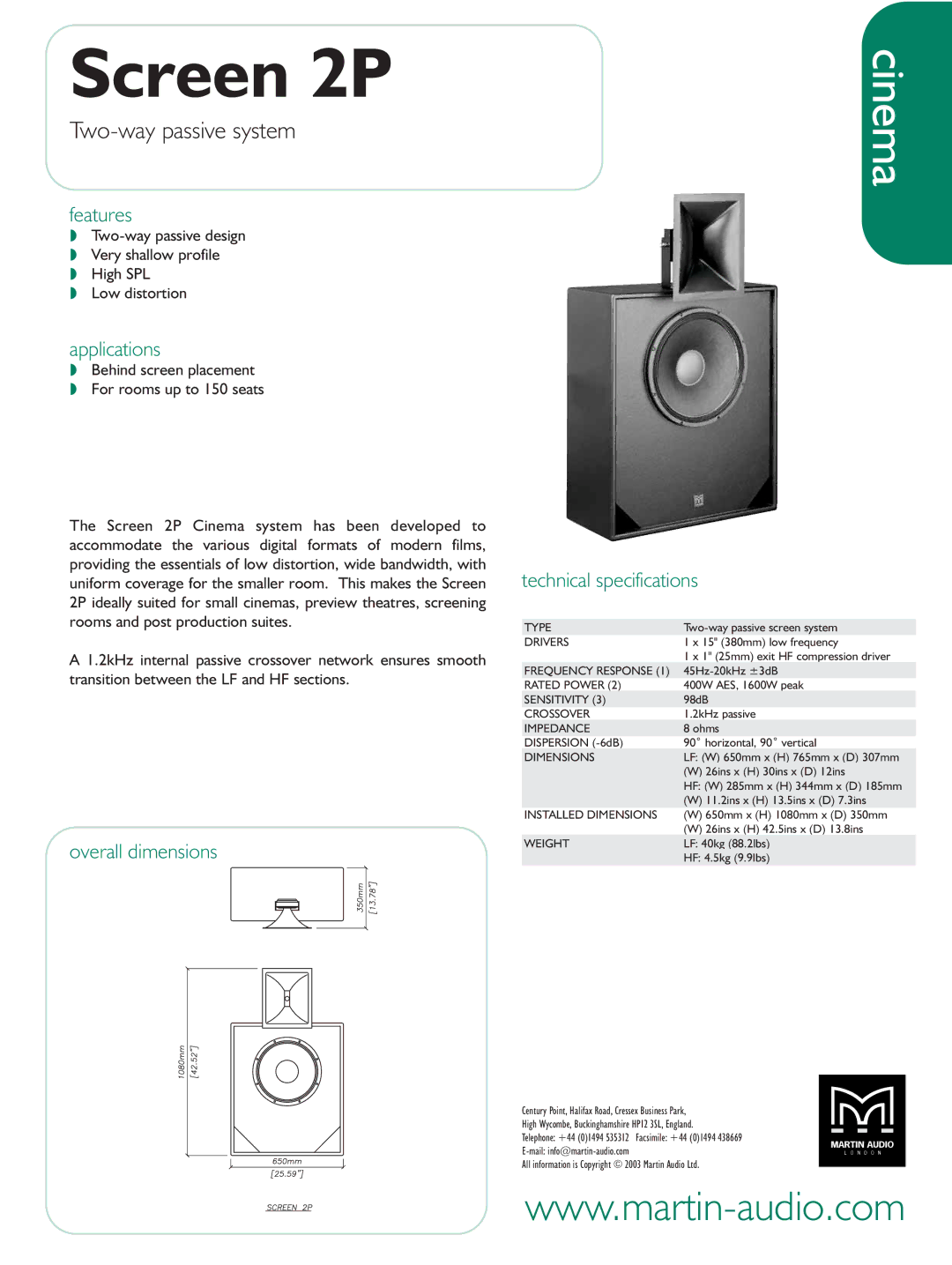

Screen 2P
Two-way passive system
features
!
!Very shallow profile
!High SPL
!Low distortion
applications
!Behind screen placement
!For rooms up to 150 seats
The Screen 2P Cinema system has been developed to accommodate the various digital formats of modern films, providing the essentials of low distortion, wide bandwidth, with uniform coverage for the smaller room. This makes the Screen 2P ideally suited for small cinemas, preview theatres, screening rooms and post production suites.
A 1.2kHz internal passive crossover network ensures smooth transition between the LF and HF sections.
overall dimensions
cinema
technical specifications
TYPE | |
DRIVERS | 1 x 15" (380mm) low frequency |
| 1 x 1" (25mm) exit HF compression driver |
FREQUENCY RESPONSE (1) | |
RATED POWER (2) | 400W AES, 1600W peak |
SENSITIVITY (3) | 98dB |
CROSSOVER | 1.2kHz passive |
IMPEDANCE | 8 ohms |
DISPERSION | 90˚ horizontal, 90˚ vertical |
DIMENSIONS | LF: (W) 650mm x (H) 765mm x (D) 307mm |
| (W) 26ins x (H) 30ins x (D) 12ins |
| HF: (W) 285mm x (H) 344mm x (D) 185mm |
| (W) 11.2ins x (H) 13.5ins x (D) 7.3ins |
INSTALLED DIMENSIONS | (W) 650mm x (H) 1080mm x (D) 350mm |
| (W) 26ins x (H) 42.5ins x (D) 13.8ins |
WEIGHT | LF: 40kg (88.2lbs) |
| HF: 4.5kg (9.9lbs) |
