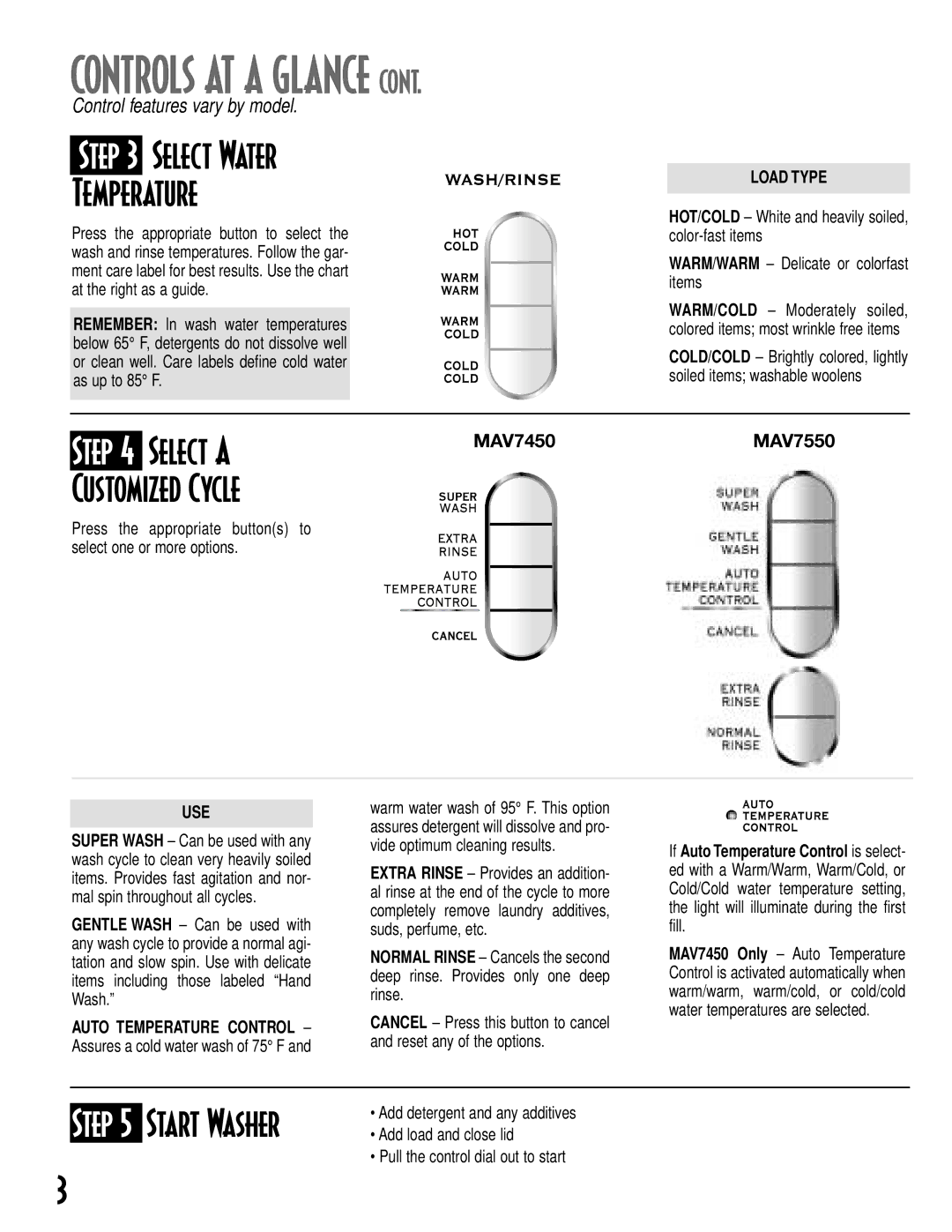

CONTROLS AT A GLANCE CONT.
Control features vary by model.
Step 3 Select Water
Temperature
Press the appropriate button to select the wash and rinse temperatures. Follow the gar- ment care label for best results. Use the chart at the right as a guide.
REMEMBER: In wash water temperatures below 65° F, detergents do not dissolve well or clean well. Care labels define cold water as up to 85° F.
LOAD TYPE
HOT/COLD – White and heavily soiled,
WARM/WARM – Delicate or colorfast items
WARM/COLD – Moderately soiled, colored items; most wrinkle free items
COLD/COLD – Brightly colored, lightly soiled items; washable woolens
Step 4 | Select A | MAV7450 | MAV7550 |
|
| ||
Customized Cycle | SUPER |
| |
Press the appropriate button(s) to select one or more options.
CANCEL
USE
SUPER WASH – Can be used with any wash cycle to clean very heavily soiled items. Provides fast agitation and nor- mal spin throughout all cycles.
GENTLE WASH – Can be used with any wash cycle to provide a normal agi- tation and slow spin. Use with delicate items including those labeled “Hand Wash.”
AUTO TEMPERATURE CONTROL – Assures a cold water wash of 75° F and
warm water wash of 95° F. This option assures detergent will dissolve and pro- vide optimum cleaning results.
EXTRA RINSE – Provides an addition- al rinse at the end of the cycle to more completely remove laundry additives, suds, perfume, etc.
NORMAL RINSE – Cancels the second deep rinse. Provides only one deep rinse.
CANCEL – Press this button to cancel and reset any of the options.
If Auto Temperature Control is select- ed with a Warm/Warm, Warm/Cold, or Cold/Cold water temperature setting, the light will illuminate during the first fill.
MAV7450 Only – Auto Temperature Control is activated automatically when warm/warm, warm/cold, or cold/cold water temperatures are selected.
Step 5 Start Washer
•Add detergent and any additives
•Add load and close lid
•Pull the control dial out to start
3
