29" and 27" Gas Dryer

PRODUCT MODEL NUMBERS MGDC500V MGDC700V

Gas supply: This dryer is equipped for

use with Natural gas. It is design-certified by CSA International for LP (propane or butane) gases with appropriate conversion. The gas line must include 1/8" NPT minimum plugged tapping accessible for test gauge connection, immediately upstream of the gas connection to the dryer. 1/2" IPS pipe is recommended.

3/8" approved aluminum or copper tubing is acceptable for lengths under 20 ft (6.1 m) if local codes and gas supplier permit.

If you are using Natural gas, do not use copper tubing.

3/8" flare x 3/8" NPT adapter fitting between dryer pipe and 3/8" approved tubing. Lengths over 20 ft (6.1 m) should use larger tubing and a different size adapter fitting.

If your dryer has been converted to use LP gas, 3/8" LP compatible copper tubing can be used. If the total length of the supply line is more than 20 ft (6.1 m), use larger pipe. NOTE: Pipe-joint compounds that resist the action of LP gas must be used. Do not use TEFLON®† tape.

Must include a shutoff valve.

In the U.S.A.:

An individual manual shutoff valve must be installed within six (6) feet (1.8 m) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1.

In Canada:

An individual manual shutoff valve must be installed in accordance with the B149.1, Natural Gas and Propane Installation Code. It is recommended that an individual manual shutoff valve be installed within six (6) feet (1.8 m) of the dryer.

The location should be easy to reach for opening and closing.

Electrical: 120-volt, 60-Hz, AC-only,

15- or 20-amp fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is also recommended that a separate circuit serving only this dryer be provided. Exhaust venting: Exhaust your dryer to the outside. 4" (102 mm) diameter vent is required. Rigid or flexible metal exhaust vent must be used. Do Not use plastic or metal foil vent. Exhaust outlet hood must be at least 12" (305 mm) from the ground or any object that may be in the path of the exhaust.

†®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

PRODUCT DIMENSIONS

29" Model

433/8"

151/4"



223/4"



223/4"





(387 mm)



(578 mm)

433/8"

(578 mm)

433/8"



(1102 mm)



433/8"



(1102 mm)



(1102 mm)

133/4"



(1102 mm)























(349 mm)

*26"



*273/4"



*273/4"



*273/4"



(660 mm)

(705 mm)



(705 mm)



(705 mm)





29"







29"







29"



29"





A.



B.



C.

D.





(737 mm)



(737 mm)



(737 mm)

(737 mm)



27" Model









A. Small Opening Side-Swing Door





233/4"







B. Large Opening Side-Swing Door



43"

(603 mm)

43"

133/4"



C. Wide Opening Side-Swing Door



(1092 mm)



(1092 mm)



D. Wide Opening Hamper Door



































(349 mm)







*291/2"



*291/2"











(749 mm)



(749 mm)

27"











27"













B.



D.











(687 mm)



(687 mm)























Most installations require a minimum 5 1/2" (140 mm) clearance behind the dryer for the exhaust vent with elbow.

RECESSED AREA AND CLOSET INSTALLATION

For closet installation with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable.













3"*











14"max.*

48in2.*

(76mm)











(356 mm)





18"*







(310cm)2



A. Recessed area

(457 mm)



























B. Side view - closet or confined area











24in.2 *

3"*

C. Closet door with vents











(155cm)2

(76mm)



1"

29"

1"

1"*

27¾"







(25mm)

(737 mm)

(25mm) (25mm)(705mm)







27"

29¾"/4



A.

1

C.

B.

(686mm)

(705mm)



EXHAUST VENTING









*Required spacing











Exhaust your dryer to the outside. 4" (102 mm)

Vent System Chart





diameter vent is required. Rigid or flexible metal











exhaust vent must be used. Do not use plastic or



Number

Type of vent

Box/louvered

Angled hoods

metal foil vet. Exhaust hood must be at least 12"



90° turns or



hoods





elbows







(305 mm) from the ground or any object that may









0

Rigid metal

64 ft. (20 m)

58 ft. (17.7 m)

be in the path of the exhaust.











1

Rigid metal

54 ft. (16.5 m)

48 ft. (14.6 m)















Hood styles: Box and Louvered hoods styles are



2

Rigid metal

44 ft. (13.4 m)

38 ft. (11.6 m)

recommended.



3

Rigid metal

35 ft. (10.7 m)

29 ft. (8.8 m)



4

Rigid metal

27 ft. (8.2 m)

21 ft. (6.4 m)

4"



NOTE: Side and bottom exhaust installations for 27" wide

(102 mm)



models have a 90º turn inside the dryer. To determine maximum

Box hood style

exhaust length, add one 90º turn to the chart.















4"

2.5"

Vent System Chart (29" Wide Long Vent Models Only)



















(102 mm)

(64 mm)











4"



Louvered style

Acceptable hood style

Number

Type of vent

Box, louvered,







(102 mm)



90° turns or



or angled hoods

The vent system chart provides venting requirments

elbows





that will help to achieve the best drying performance.

0

Rigid metal

120 ft. (36.6 m)

















1

Rigid metal

110 ft. (33.5 m)

Vent system chart: NOTE: Side and bottom exhaust







2

Rigid metal

100 ft. (30.5 m)

installations have a 90° turn inside the dryer. To







3

Rigid metal

90 ft. (27.4 m)

determine maximum exhaust length, add one 90°







4

Rigid metal

80 ft. (24.4 m)

turn to the chart.













5

Rigid metal

70 ft. (21.3 m)

















Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Ref. W10296135

Instructions packed with product. Specifications subject to change without notice.

12/2009

Page 1 Page 1
Page 1
Image 1

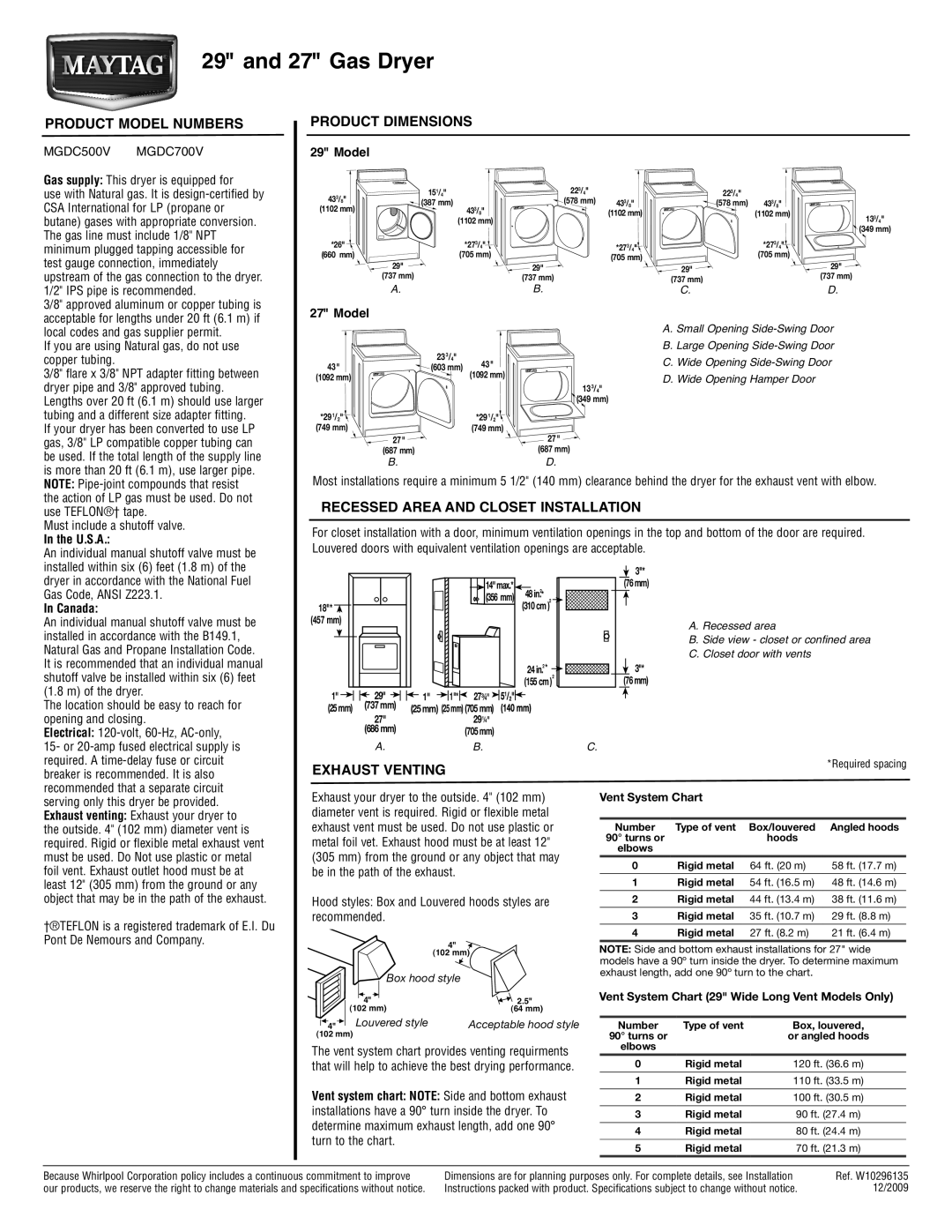

Maytag dimensions Product Model Numbers MGDC500V MGDC700V, Product Dimensions, Recessed Area and Closet Installation
