Maytag TDL-0050B-B warranty Technical Bulletin, Brand, Admiral, Amana, Crosley, Jenn-Air, Maytag

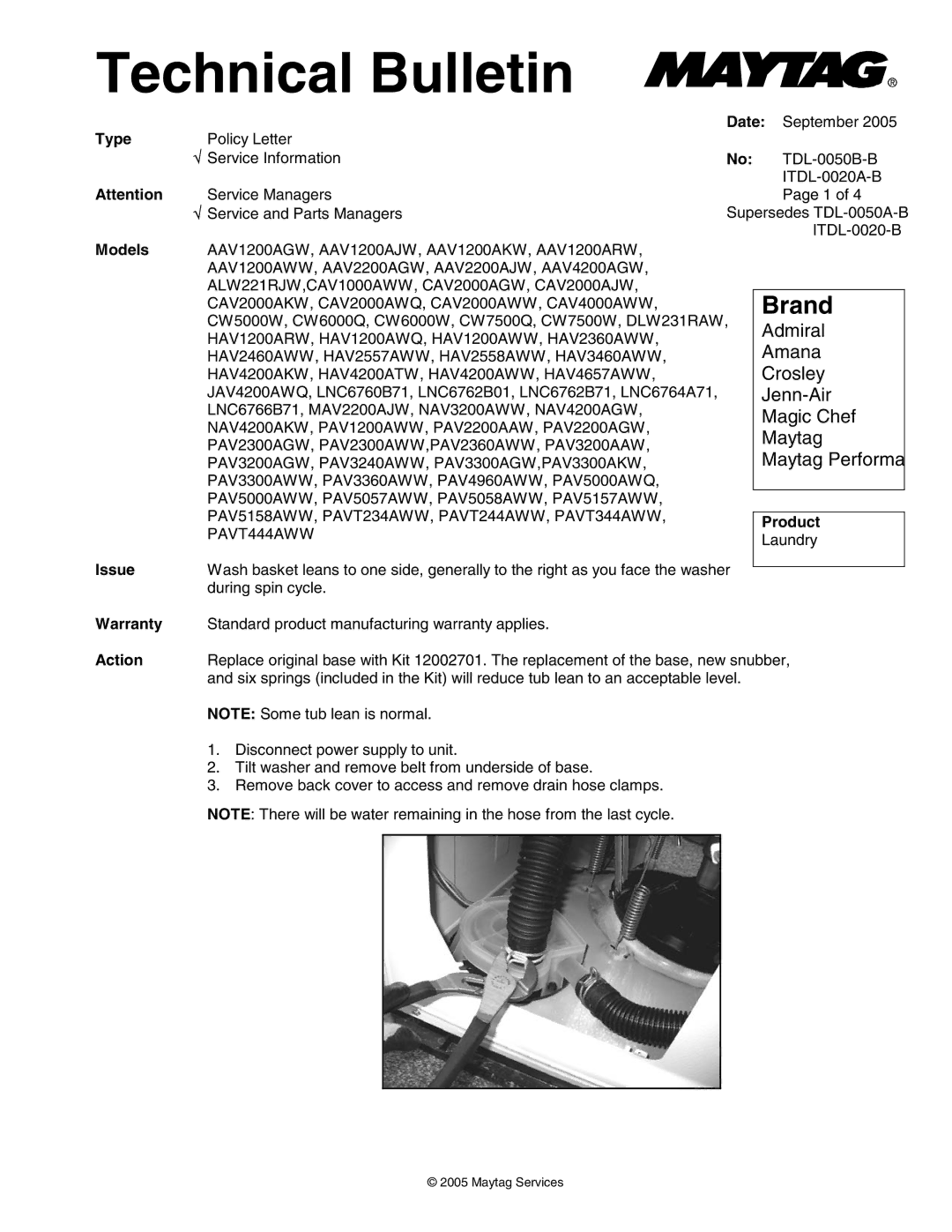

Technical Bulletin

Type	Policy Letter	Date: September 2005
	√ Service Information	No: TDL-0050B-B
Attention			ITDL-0020A-B
	Service Managers		Page 1 of 4
	√ Service and Parts Managers	Supersedes TDL-0050A-B
			ITDL-0020-B
Models	AAV1200AGW, AAV1200AJW, AAV1200AKW, AAV1200ARW,
	AAV1200AWW, AAV2200AGW, AAV2200AJW, AAV4200AGW,
	ALW221RJW,CAV1000AWW, CAV2000AGW, CAV2000AJW,
	CAV2000AKW, CAV2000AWQ, CAV2000AWW, CAV4000AWW,		Brand
	CW5000W, CW6000Q, CW6000W, CW7500Q, CW7500W, DLW231RAW,		Admiral
	HAV1200ARW, HAV1200AWQ, HAV1200AWW, HAV2360AWW,
			Amana
	HAV2460AWW, HAV2557AWW, HAV2558AWW, HAV3460AWW,
	HAV4200AKW, HAV4200ATW, HAV4200AWW, HAV4657AWW,		Crosley
	JAV4200AWQ, LNC6760B71, LNC6762B01, LNC6762B71, LNC6764A71,		Jenn-Air
	LNC6766B71, MAV2200AJW, NAV3200AWW, NAV4200AGW,		Magic Chef
	NAV4200AKW, PAV1200AWW, PAV2200AAW, PAV2200AGW,
			Maytag
	PAV2300AGW, PAV2300AWW,PAV2360AWW, PAV3200AAW,
			Maytag Performa
	PAV3200AGW, PAV3240AWW, PAV3300AGW,PAV3300AKW,
	PAV3300AWW, PAV3360AWW, PAV4960AWW, PAV5000AWQ,
	PAV5000AWW, PAV5057AWW, PAV5058AWW, PAV5157AWW,
	PAV5158AWW, PAVT234AWW, PAVT244AWW, PAVT344AWW,
			Product
	PAVT444AWW
			Laundry
Issue	Wash basket leans to one side, generally to the right as you face the washer
	during spin cycle.

Warranty Standard product manufacturing warranty applies.

Action Replace original base with Kit 12002701. The replacement of the base, new snubber, and six springs (included in the Kit) will reduce tub lean to an acceptable level.

NOTE: Some tub lean is normal.

1.Disconnect power supply to unit.

2.Tilt washer and remove belt from underside of base.

3.Remove back cover to access and remove drain hose clamps.

NOTE: There will be water remaining in the hose from the last cycle.

© 2005 Maytag Services
