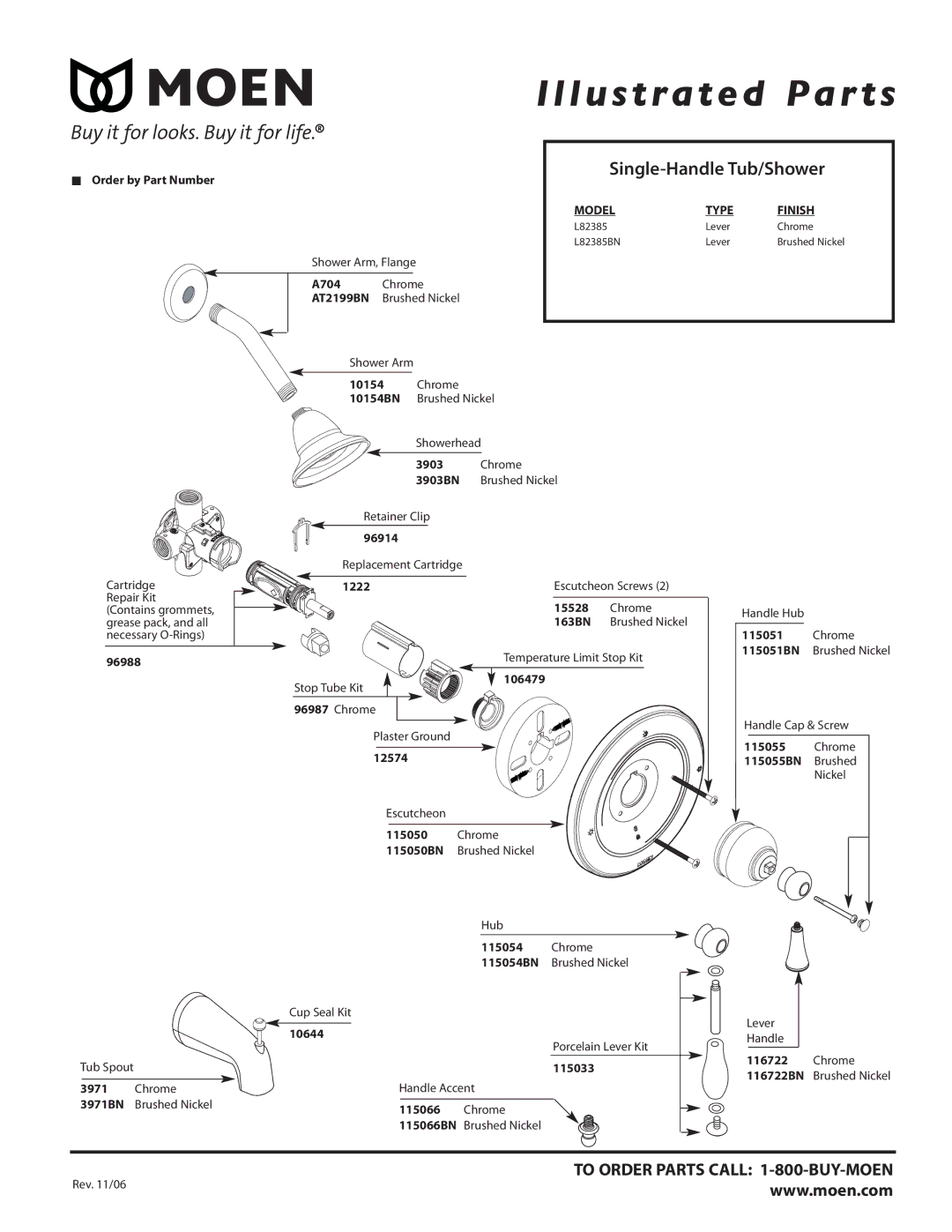

Illustrated Par ts
■Order by Part Number
Shower Arm, Flange
A704 Chrome
AT2199BN Brushed Nickel
Shower Arm
10154 Chrome 10154BN Brushed Nickel
Showerhead
Single-Handle Tub/Shower
MODEL | TYPE | FINISH |
L82385 | Lever | Chrome |
L82385BN | Lever | Brushed Nickel |
3903 Chrome 3903BN Brushed Nickel
Retainer Clip
96914
Cartridge
Repair Kit
(Contains grommets, grease pack, and all necessary
Replacement Cartridge |
|
|
|
|
| Escutcheon Screws (2) | |
1222 |
| ||
|
|
|
|
| 15528 | Chrome | |
|
| 163BN | Brushed Nickel |
Handle Hub
115051 Chrome
96988
Stop Tube Kit
Temperature Limit Stop Kit
106479
115051BN Brushed Nickel
96987 Chrome
| LL |
IN | WA |
TH |
|
Plaster Ground
12574
ALL
THINW
Handle Cap & Screw
115055 Chrome 115055BN Brushed
Nickel
Tub Spout
3971 Chrome 3971BN Brushed Nickel
Escutcheon
115050 Chrome
115050BN Brushed Nickel
Hub
115054 Chrome
115054BN Brushed Nickel
Cup Seal Kit
10644
Porcelain Lever Kit
115033
Handle Accent
115066 Chrome
115066BN Brushed Nickel
Lever
Handle
116722 Chrome
116722BN Brushed Nickel
TO ORDER PARTS CALL: 1-800-BUY-MOEN
Rev. 11/06 | www.moen.com |
|
