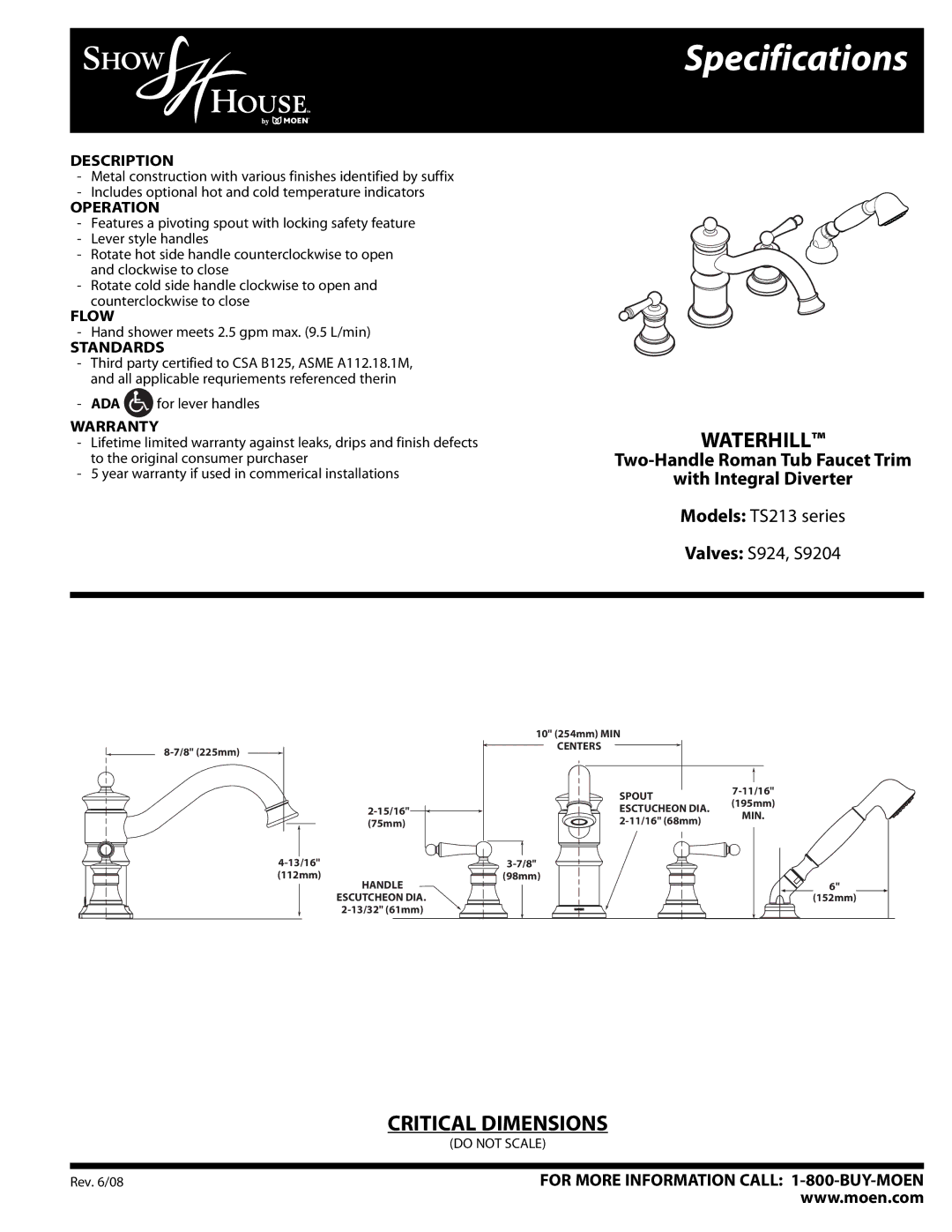

Specifications
DESCRIPTION-Metal construction with various finishes identified by suffix
-Includes optional hot and cold temperature indicators
OPERATION-Features a pivoting spout with locking safety feature
-Lever style handles
-Rotate hot side handle counterclockwise to open and clockwise to close
-Rotate cold side handle clockwise to open and counterclockwise to close
FLOW-Hand shower meets 2.5 gpm max. (9.5 L/min)
STANDARDS-Third party certified to CSA B125, ASME A112.18.1M, and all applicable requriements referenced therin
-ADA for lever handles
WARRANTY-Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser
-5 year warranty if used in commerical installations
WATERHILL™
Two-Handle Roman Tub Faucet Trim
with Integral Diverter
Models: TS213 series
Valves: S924, S9204
| 10" (254mm) MIN |
| |
CENTERS |
| ||
|
| ||
| SPOUT | ||
| (195mm) | ||
ESCTUCHEON DIA. | |||
MIN. | |||
(75mm) | |||
|
(112mm) | (98mm) |
HANDLE | 6" |
ESCUTCHEON DIA. | (152mm) |
|
| CRITICAL DIMENSIONS |
| (DO NOT SCALE) |
|
|
|
|
Rev. 6/08 | FOR MORE INFORMATION CALL: |
| www.moen.com |
