Specifications

DESCRIPTION

- Metal construction with various finishes identified by suffix

- 1/2" IPS connections will accept standard ball nose connection for 3/8” tubing - Includes optional hot and cold temperature indicators

- Hydrolock™ quick connect installation - Includes metal pop-up waste assembly - For use with S948 valve

- Designed to be installed through 3, 1-1/8” dia. holes

OPERATION

- Lever style handles

- Features a pivoting spout with self-centering feature

- Maximum handle rotation angle is 90˚ to full on for either handle

- Rotate hot side handle counterclockwise to open and clockwise to close - Rotate cold side handle clockwise to open and counterclockwise to close

FLOW

- Flow is limited to 1.5 gpm max (5.7 L/min) at 60 psi, for products made before October 2008 flow is limited to 2.2 gpm max. (8.3 L/min)

CARTRIDGE

-1224 cartridge design with nonmetallic/nonferrous and stainless steel materials

STANDARDS

-Third party certified to WaterSense,® CSA B125.1, ASME A112.18.1, ICC A117.1 and all applicable requirements referenced therein

-Certified to ANSI/NSF 61/9

-Complies with California Proposition 65 and with the Federal Safe Drinking Water Act

-ADA for lever handles

WARRANTY

-Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser

-5 year warranty if used in commercial installations

WATERHILL™

Two-Handle Widespread

Lavatory Faucet Trim

Models: TS418 series

Valve: S948





8" (203mm) - 16" (406mm)





Centers

2-15/16"



(75mm)







5-25/32"





(147mm)

ESCUTCHEON DIA.

3-7/8"

ESCUTCHEON DIA.

(98mm)

2-13/32"

2-23/32"



(61mm)



(69mm)





1-1/4” (32mm) MAX.





DECK THICKNESS



QUICK CONNECT





HOSE ASSEMBLY



5-25/32" (147mm)

3-7/32" (82mm)

1-11/32" (34mm)

LIFT ROD



NOTE: FOR DECK THICKNESS 1-3/8” - 3”, USE SERVICE KIT #115001. VALVES INSTALL THROUGH 1-1/4” DIA. HOLE



CRITICAL DIMENSIONS



(DO NOT SCALE)









Rev. 6/08

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN



www.moen.com

Page 1

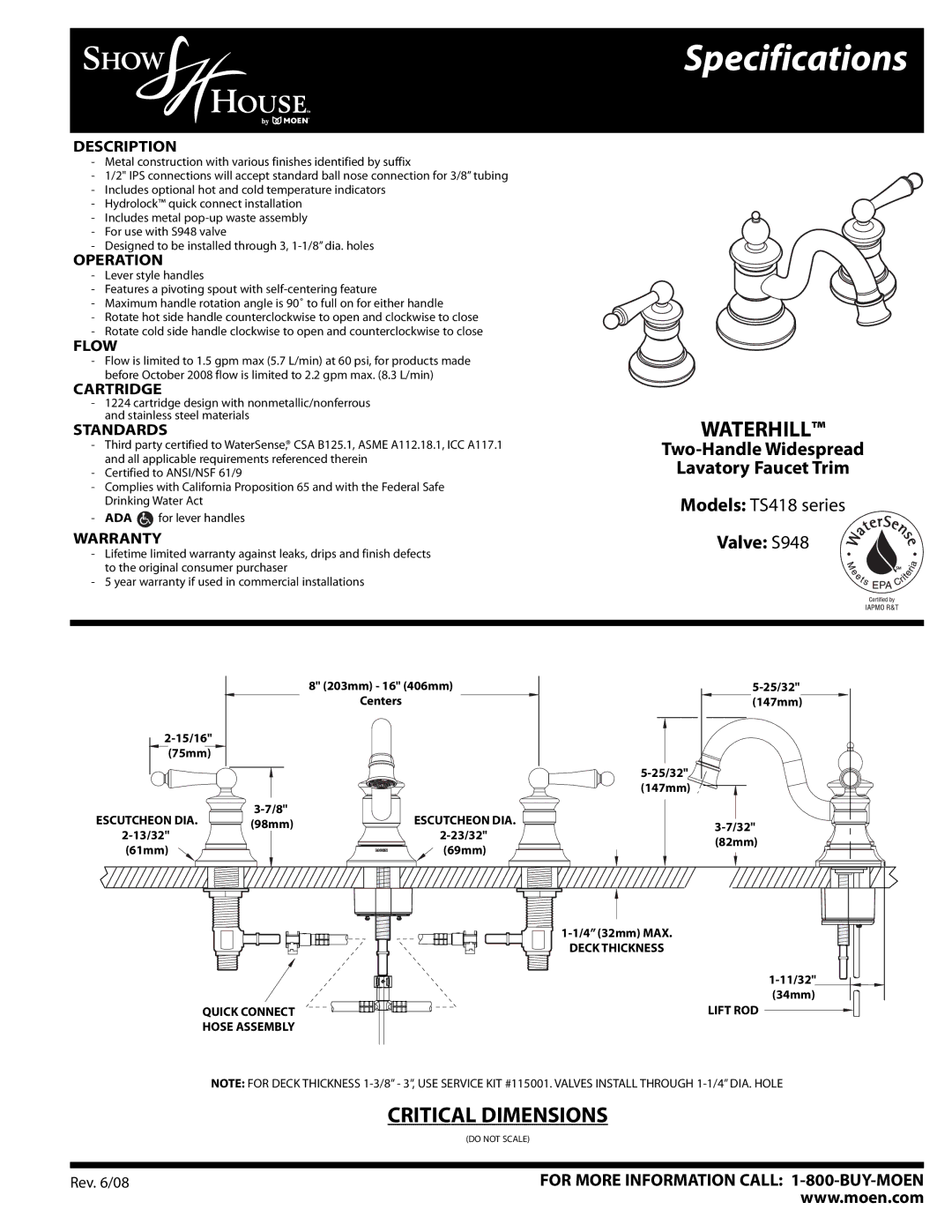

Image 1
Moen TS418 series specifications Specifications, Waterhill, Two-Handle Widespread Lavatory Faucet Trim, Valve S948

TS418 series specifications
