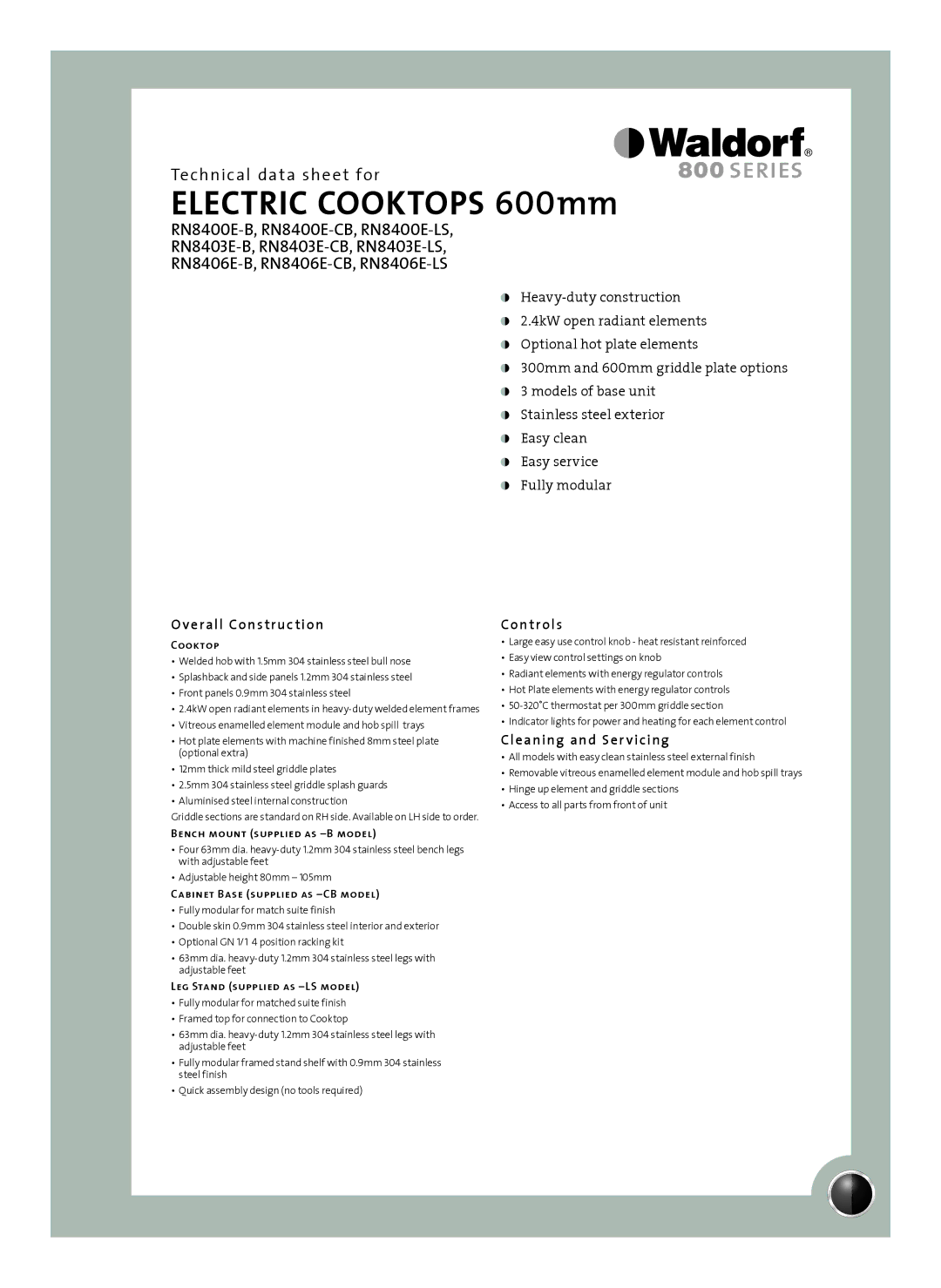

Technical data sheet for

ELECTRIC COOKTOPS 600mm

RN8400E-B, RN8400E-CB, RN8400E-LS,

RN8403E-B, RN8403E-CB, RN8403E-LS,

RN8406E-B, RN8406E-CB, RN8406E-LS

Heavy-duty construction 2.4kW open radiant elements Optional hot plate elements

300mm and 600mm griddle plate options 3 models of base unit

Stainless steel exterior Easy clean

Easy service Fully modular

Overall Construction

Cooktop

•Welded hob with 1.5mm 304 stainless steel bull nose

•Splashback and side panels 1.2mm 304 stainless steel

•Front panels 0.9mm 304 stainless steel

•2.4kW open radiant elements in heavy-duty welded element frames

•Vitreous enamelled element module and hob spill trays

•Hot plate elements with machine finished 8mm steel plate (optional extra)

•12mm thick mild steel griddle plates

•2.5mm 304 stainless steel griddle splash guards

•Aluminised steel internal construction

Griddle sections are standard on RH side. Available on LH side to order.

Controls

•Large easy use control knob - heat resistant reinforced

•Easy view control settings on knob

•Radiant elements with energy regulator controls

•Hot Plate elements with energy regulator controls

•50-320˚C thermostat per 300mm griddle section

•Indicator lights for power and heating for each element control

Cleaning and Ser vicing

•All models with easy clean stainless steel external finish

•Removable vitreous enamelled element module and hob spill trays

•Hinge up element and griddle sections

•Access to all parts from front of unit

Bench mount (supplied as –B model)

•Four 63mm dia. heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet

•Adjustable height 80mm – 105mm

Cabinet Base (supplied as –CB model)

•Fully modular for match suite finish

•Double skin 0.9mm 304 stainless steel interior and exterior

•Optional GN 1/1 4 position racking kit

•63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet

Leg Stand (supplied as –LS model)

•Fully modular for matched suite finish

•Framed top for connection to Cooktop

•63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet

•Fully modular framed stand shelf with 0.9mm 304 stainless steel finish

•Quick assembly design (no tools required)
