7

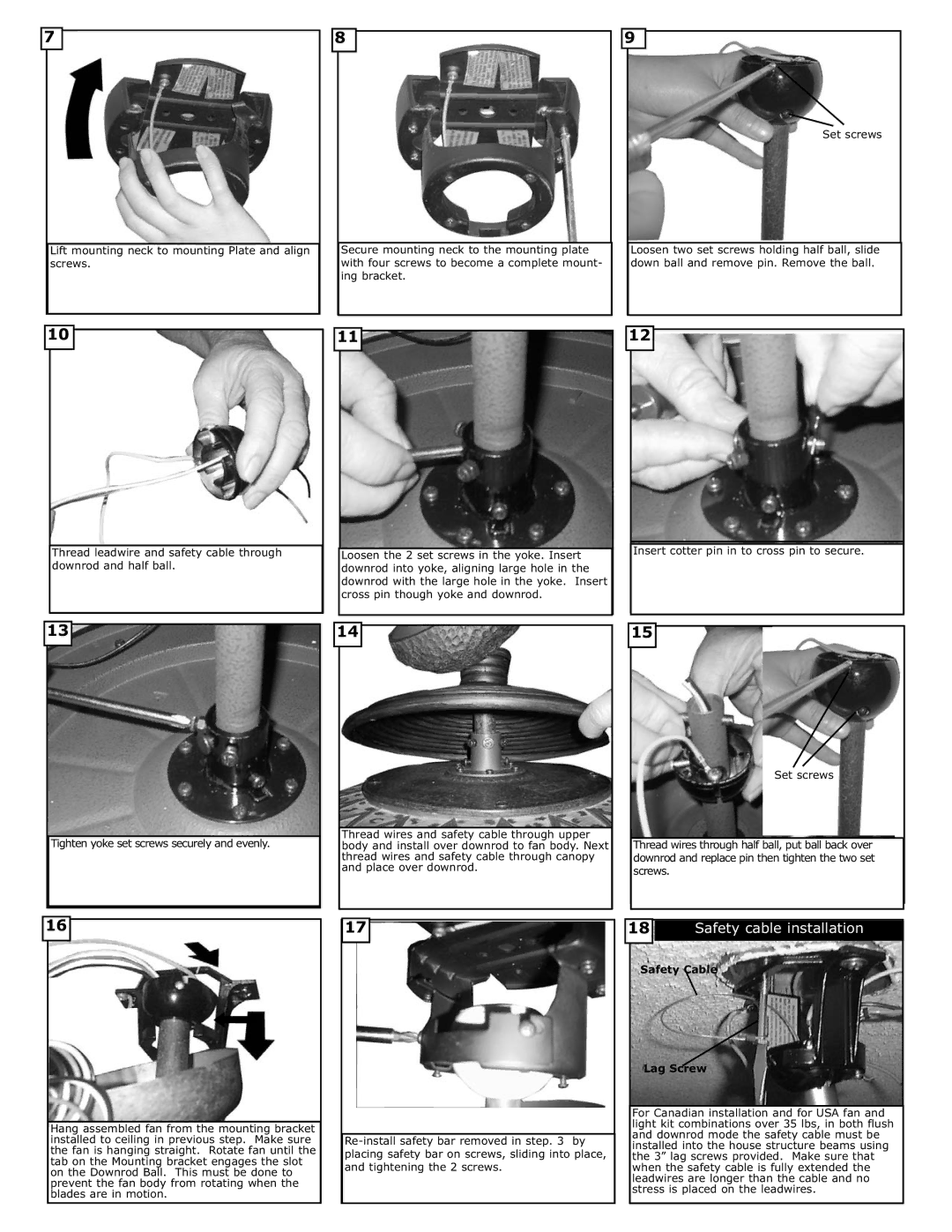

Lift mounting neck to mounting Plate and align screws.
10
Thread leadwire and safety cable through downrod and half ball.
13
Tighten yoke set screws securely and evenly.
16
Hang assembled fan from the mounting bracket installed to ceiling in previous step. Make sure the fan is hanging straight. Rotate fan until the tab on the Mounting bracket engages the slot on the Downrod Ball. This must be done to prevent the fan body from rotating when the blades are in motion.
8
Secure mounting neck to the mounting plate with four screws to become a complete mount- ing bracket.
11
Loosen the 2 set screws in the yoke. Insert downrod into yoke, aligning large hole in the downrod with the large hole in the yoke. Insert cross pin though yoke and downrod.
14
Thread wires and safety cable through upper body and install over downrod to fan body. Next thread wires and safety cable through canopy and place over downrod.
17
9
Set screws
Loosen two set screws holding half ball, slide down ball and remove pin. Remove the ball.
12
Insert cotter pin in to cross pin to secure.
15
Set screws
Thread wires through half ball, put ball back over downrod and replace pin then tighten the two set screws.
18
Safety cable installation
Safety Cable
Lag Screw
For Canadian installation and for USA fan and light kit combinations over 35 lbs, in both flush and downrod mode the safety cable must be installed into the house structure beams using the 3” lag screws provided. Make sure that when the safety cable is fully extended the leadwires are longer than the cable and no stress is placed on the leadwires.
