New Holland

TV6070 BidirectionalTractor Specifications

TV6070

MODEL



TV6070

Rated PTO power, HP (kw)



105 (78)

ENGINE





Make/model



FPT

Type



6-cylinder parent bore diesel

Fuel Injection



Bosch mechanical pump, direct injection

Bare engine power, HP (kw)



155 (116)

Rated speed, RPM



2,200

Idle speed, RPM



850-950

Displacement, cu. in. (L)



6 / 411 (6 / 6.7)

Aspiration



Turbocharged/air-air intercooled

Air cleaner

Dual element dry with aspirated spin tube precleaner

Cold start aids



Grid heater/coolant block heater

Bio diesel compatibility



Up to 100%

ELECTRICAL





Type



12v negative ground

Batteries



Two group 31 low maintenance

Cold start rating, each, CCA



950

Alternator, amps



120

TRANSMISSION





Type



Multi-range closed-loop hydrostatic

Pump

Variable displacement, mechanical operator control

Motor

Electronically controlled 8-range variable displacement

Ground speeds in ranges, MPH (KPH)

1

0 to 6.7 (10.8)





2

0 to 7.7 (12.4)



3

0 to 8.3 (13.4)



4

0 to 9.1 (14.6)



5

0 to 10.3 (16.6)



6

0 to 11.6 (18.7)



7

0 to 16.2 (26.0)



8

0 to 19.5 (31.4)

Braking

Dynamic braking by moving lever to neutral position

AXLES AND BRAKES





Axle type



HD flange with inboard planetary reduction

Differential lock, cab end



Standard

Differential lock, engine end



Optional

Oscillation, degrees



10

Brake type



Wet disc in cab-end axle, hydraulic actuation

Total brake area, in.2 (cm2)



507 (3271)

Parking brake



Cable actuation of service brakes

PTO SYSTEMS





Type



Mechanical 540/1000 RPM

Shafts



Interchangeable 1 3/8" diameter

Locations:

cab end

Standard



engine end

Optional

Engagement



Electro-hydraulic

Page 1of 2

Page 1

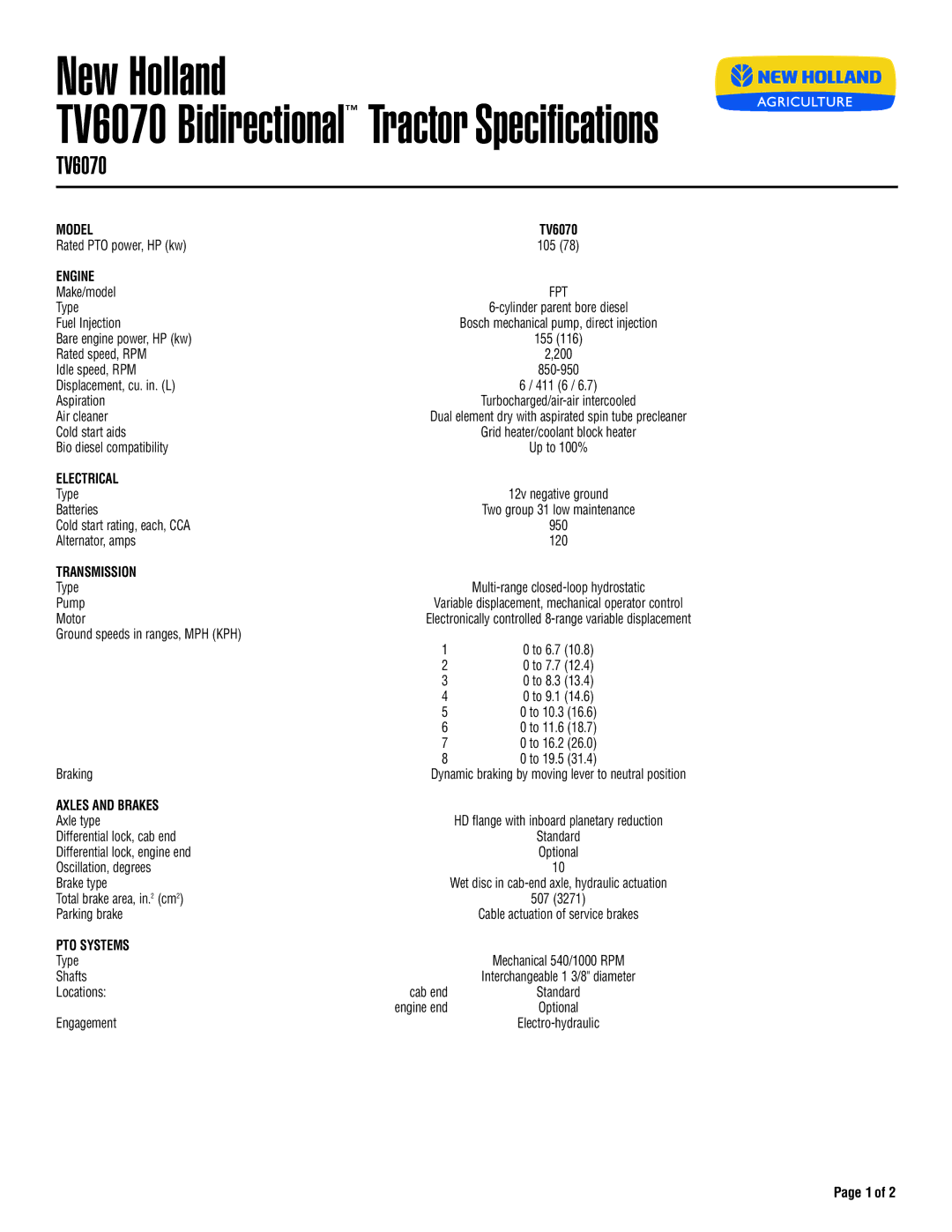

Image 1
New Holland TV6070 specifications Model, Engine, Electrical, Transmission, Axles and Brakes, PTO Systems

TV6070 specifications

The New Holland TV6070 is a powerful and versatile tractor that is part of the renowned T6000 Series. This model is designed to meet the demands of modern farmers, delivering exceptional performance and reliability while maintaining ease of use and comfort. With a robust engine and advanced technologies, the TV6070 stands out as an essential tool for a variety of agricultural tasks.

One of the standout features of the TV6070 is its engine. It is equipped with a fuel-efficient, turbocharged 6-cylinder engine that delivers impressive horsepower, allowing for optimal performance even under heavy loads. This engine is designed with advanced fuel injection technology, ensuring maximum efficiency and reduced emissions, making it an environmentally friendly choice for farmers.

The TV6070 also comes with a unique and user-friendly Command Grip control system, providing operators with an intuitive way to manage the tractor's functions. This control system allows for easy access to key functions such as throttle control, transmission management, and hydraulic functions, all from a single, ergonomic handle.

In terms of transmission, the TV6070 offers both manual and Power Command options. With the Power Command transmission, operators can enjoy seamless shifting and enhanced productivity. The fully synchronized 16x16 transmission option allows for precise speed adjustments, catering to various field conditions and tasks.

Another significant characteristic of the New Holland TV6070 is its hydraulic system. The tractor boasts a high-capacity hydraulic pump that ensures efficient operation of implements and attachments. With up to four remote hydraulic outlets available, the TV6070 can handle multiple tasks simultaneously, improving overall productivity on the farm.

Additionally, the spacious and comfortable cab of the TV6070 provides excellent visibility and reduced noise levels, enhancing the operator's experience during long working hours. The adjustable seating and climate control system make it a welcoming working environment, intended to minimize operator fatigue.

Finally, the TV6070 is built with durability in mind. Its robust chassis and high-quality materials ensure that it can withstand the rigors of agricultural work, making it a reliable choice for any farming operation. In summary, the New Holland TV6070 combines power, efficiency, and comfort, catering perfectly to the needs of modern agriculture.
