LVRD500, LVU40 instruction sheet
1
1
4
4
Download
4 pages, 2.83 Mb

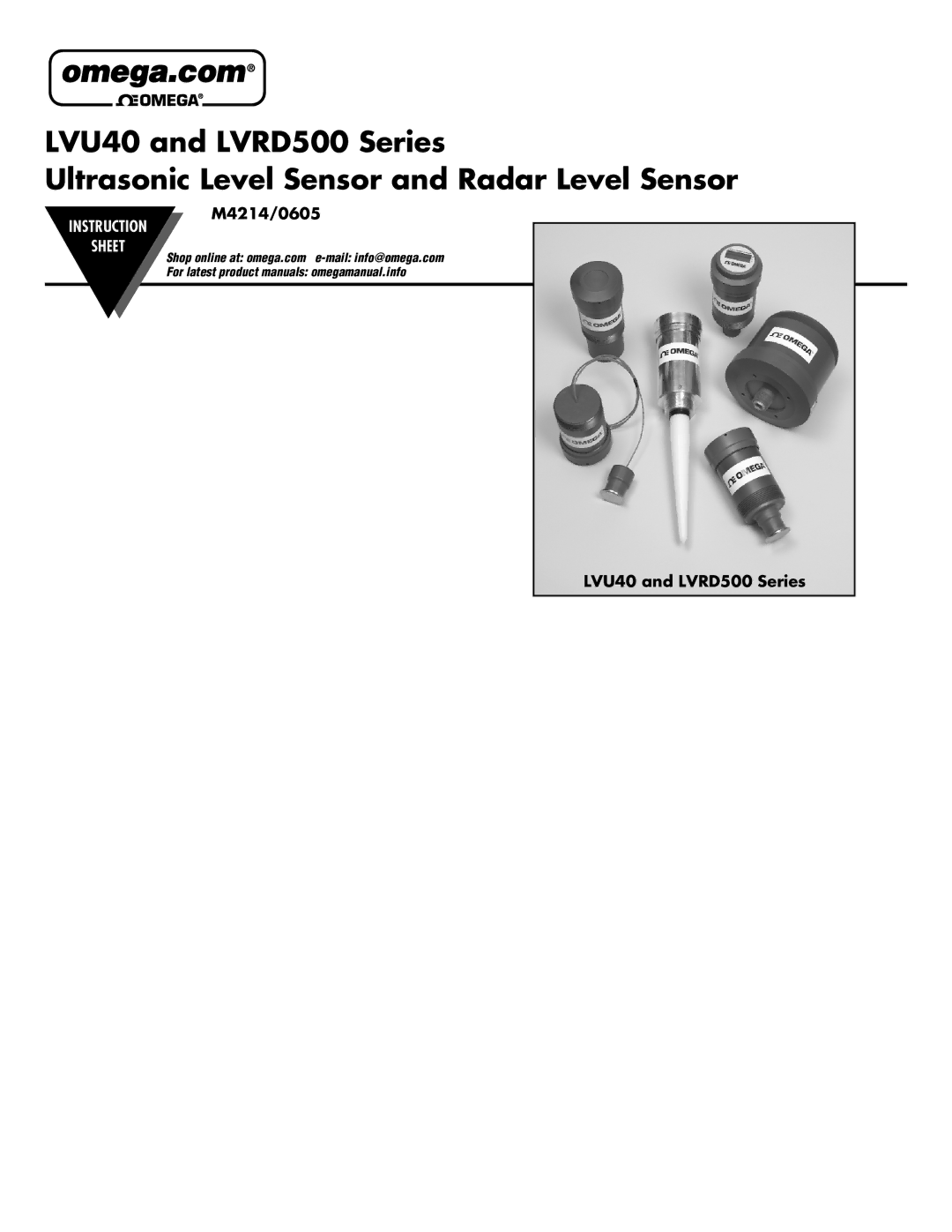

LVU40 and LVRD500 Series
Ultrasonic Level Sensor and Radar Level Sensor
INSTRUCTION
SHEET
M4214/0605
Shop online at: omega.com e-mail: info@omega.com
For latest product manuals: omegamanual.info
LVU40 and LVRD500 Series
Contents
Main

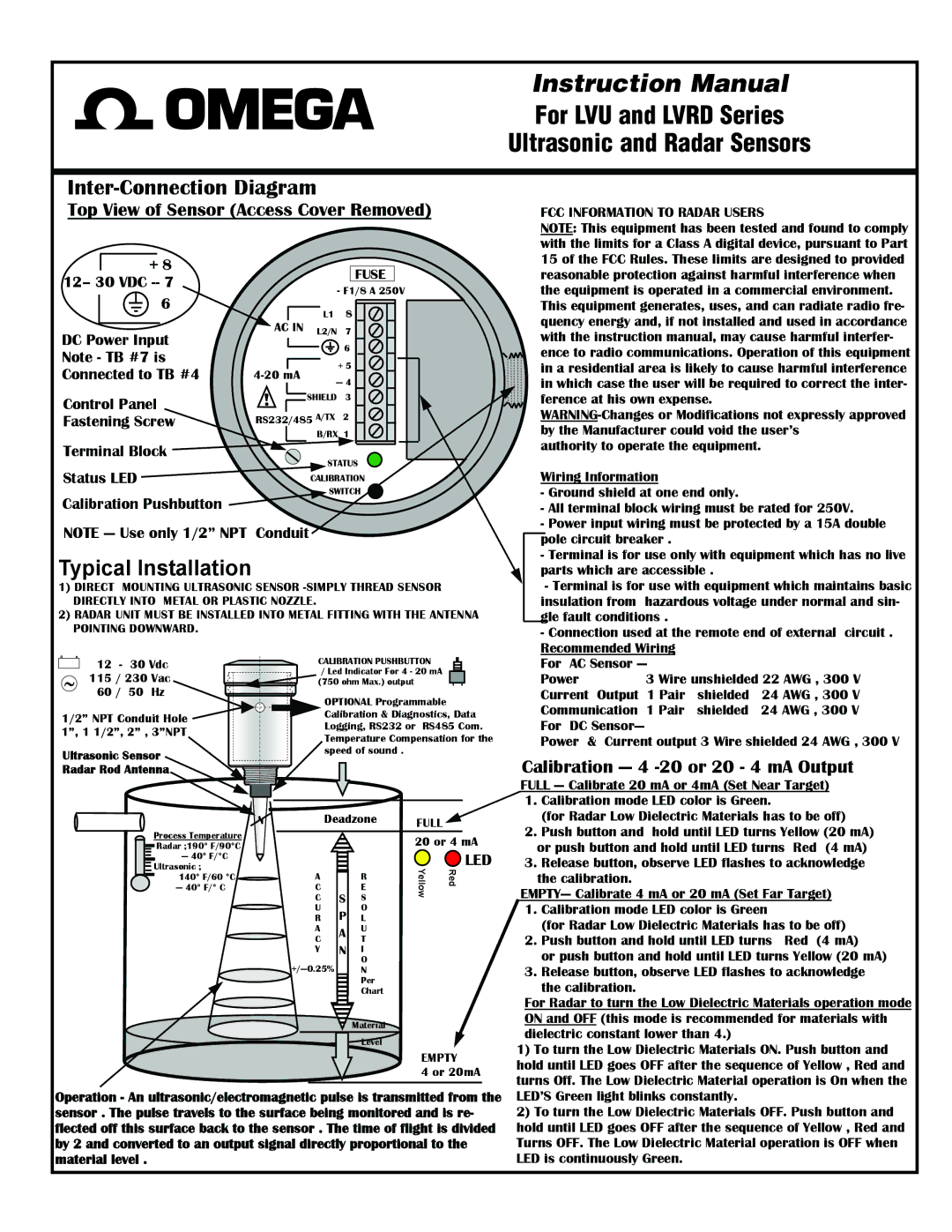

Inter-Connection Diagram
Top View of Sensor (Access Cover Removed)
Terminal Block
Typical Installation
Instruction Manual For LVU and LVRD Series Ultrasonic and Radar Sensors

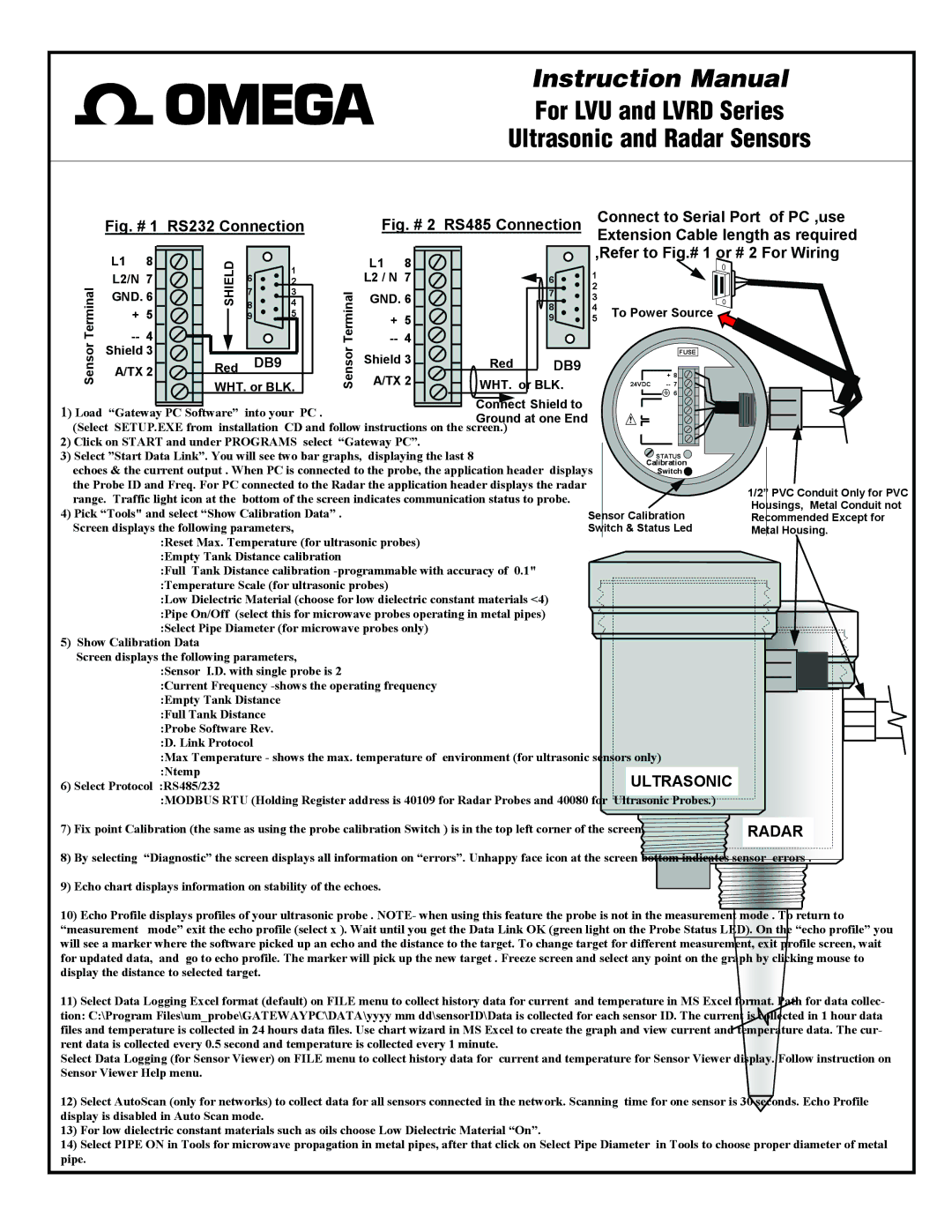

Fig. # 2 RS485 Connection
DB9
Instruction Manual For LVU and LVRD Series Ultrasonic and Radar Sensors

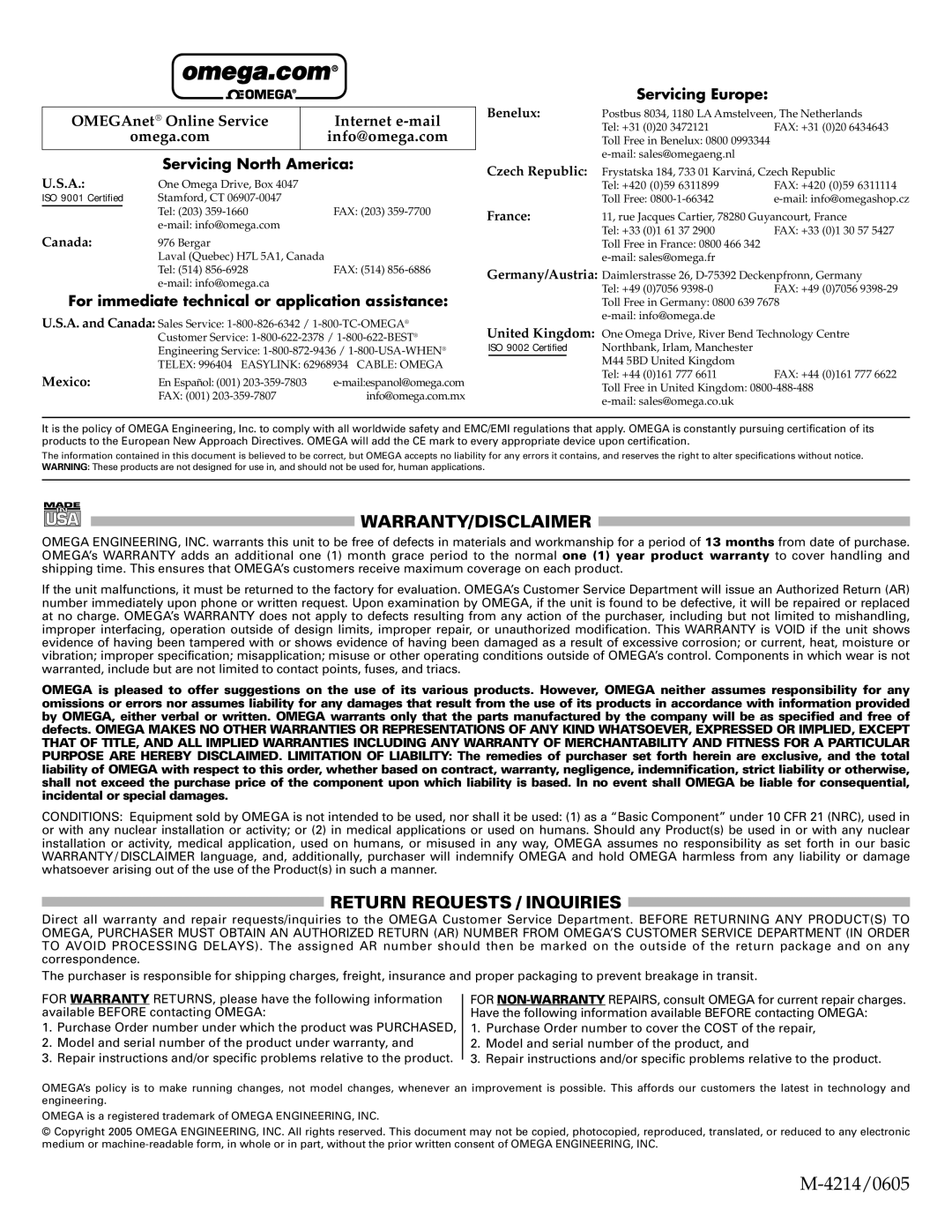

WARRANTY/DISCLAIMER
Servicing North America:
U.S.A.:
Canada:
M-4214/0605
RETURN REQUESTS /INQUIRIES
