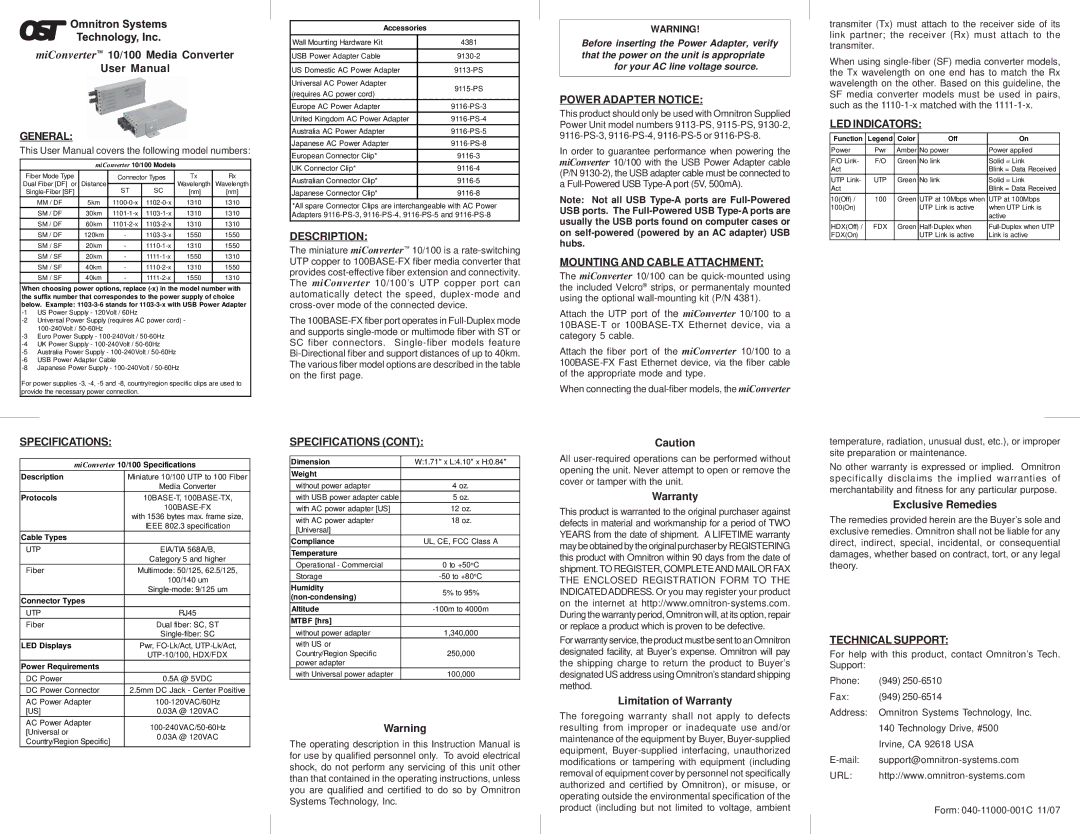

miConverter™ 10/100 Media Converter

User Manual

GENERAL:

This User Manual covers the following model numbers:

miConverter 10/100 Models

Fiber Mode Type		Connector Types		Tx	Rx
Dual Fiber [DF] or	Distance			Wavelength	Wavelength
Single-Fiber [SF]		ST	SC	[nm]	[nm]
MM / DF	5km	1100-0-x	1102-0-x	1310	1310
SM / DF	30km	1101-1-x	1103-1-x	1310	1310
SM / DF	60km	1101-2-x	1103-2-x	1310	1310
SM / DF	120km	-	1103-3-x	1550	1550
SM / SF	20km	-	1110-1-x	1310	1550
SM / SF	20km	-	1111-1-x	1550	1310
SM / SF	40km	-	1110-2-x	1310	1550
SM / SF	40km	-	1111-2-x	1550	1310

When choosing power options, replace (-x) in the model number with the suffix number that correspondes to the power supply of choice below. Example: 1103-3-6 stands for 1103-3-x with USB Power Adapter -1 US Power Supply - 120Volt / 60Hz

-2 Universal Power Supply (requires AC power cord) - 100-240Volt / 50-60Hz

-3 Euro Power Supply - 100-240Volt / 50-60Hz -4 UK Power Supply - 100-240Volt / 50-60Hz

-5 Australia Power Supply - 100-240Volt / 50-60Hz -6 USB Power Adapter Cable

-8 Japanese Power Supply - 100-240Volt / 50-60Hz

For power supplies -3, -4, -5 and -8, country/region specific clips are used to provide the necessary power connection.

Accessories

Wall Mounting Hardware Kit	4381
USB Power Adapter Cable	9130-2
US Domestic AC Power Adapter	9113-PS
Universal AC Power Adapter	9115-PS
(requires AC power cord)
Europe AC Power Adapter	9116-PS-3
United Kingdom AC Power Adapter	9116-PS-4
Australia AC Power Adapter	9116-PS-5
Japanese AC Power Adapter	9116-PS-8
European Connector Clip*	9116-3
UK Connector Clip*	9116-4
Australian Connector Clip*	9116-5
Japanese Connector Clip*	9116-8

*All spare Connector Clips are interchangeable with AC Power Adapters 9116-PS-3, 9116-PS-4, 9116-PS-5 and 9116-PS-8

DESCRIPTION:

The miniature miConverter™ 10/100 is a rate-switching UTP copper to 100BASE-FX fiber media converter that provides cost-effective fiber extension and connectivity. The miConverter 10/100’s UTP copper port can automatically detect the speed, duplex-mode and cross-over mode of the connected device.

The 100BASE-FX fiber port operates in Full-Duplex mode and supports single-mode or multimode fiber with ST or SC fiber connectors. Single-fiber models feature Bi-Directional fiber and support distances of up to 40km. The various fiber model options are described in the table on the first page.

WARNING!

Before inserting the Power Adapter, verify that the power on the unit is appropriate

for your AC line voltage source.

POWER ADAPTER NOTICE:

This product should only be used with Omnitron Supplied Power Unit model numbers 9113-PS, 9115-PS, 9130-2, 9116-PS-3, 9116-PS-4, 9116-PS-5 or 9116-PS-8.

In order to guarantee performance when powering the miConverter 10/100 with the USB Power Adapter cable (P/N 9130-2), the USB adapter cable must be connected to a Full-Powered USB Type-A port (5V, 500mA).

Note: Not all USB Type-A ports are Full-Powered USB ports. The Full-Powered USB Type-A ports are usually the USB ports found on computer cases or on self-powered (powered by an AC adapter) USB hubs.

MOUNTING AND CABLE ATTACHMENT:

The miConverter 10/100 can be quick-mounted using the included Velcro® strips, or permanentaly mounted using the optional wall-mounting kit (P/N 4381).

Attach the UTP port of the miConverter 10/100 to a 10BASE-T or 100BASE-TX Ethernet device, via a category 5 cable.

Attach the fiber port of the miConverter 10/100 to a 100BASE-FX Fast Ethernet device, via the fiber cable of the appropriate mode and type.

When connecting the dual-fiber models, the miConverter

transmiter (Tx) must attach to the receiver side of its link partner; the receiver (Rx) must attach to the transmiter.

When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other. Based on this guideline, the SF media converter models must be used in pairs, such as the 1110-1-x matched with the 1111-1-x.

LED INDICATORS:

Function	Legend	Color	Off	On
Power	Pwr	Amber	No power	Power applied
F/O Link-	F/O	Green	No link	Solid = Link
Act				Blink = Data Received
UTP Link-	UTP	Green	No link	Solid = Link
Act				Blink = Data Received
10(Off) /	100	Green	UTP at 10Mbps when	UTP at 100Mbps
100(On)			UTP Link is active	when UTP Link is
				active
HDX(Off) /	FDX	Green	Half-Duplex when	Full-Duplex when UTP
FDX(On)			UTP Link is active	Link is active

SPECIFICATIONS:

miConverter 10/100 Specifications
Description	Miniature 10/100 UTP to 100 Fiber
	Media Converter
Protocols	10BASE-T, 100BASE-TX,
	100BASE-FX
	with 1536 bytes max. frame size,
	IEEE 802.3 specification
Cable Types
UTP	EIA/TIA 568A/B,
	Category 5 and higher
Fiber	Multimode: 50/125, 62.5/125,
	100/140 um
	Single-mode: 9/125 um
Connector Types
UTP	RJ45
Fiber	Dual fiber: SC, ST
	Single-fiber: SC
LED Displays	Pwr, FO-Lk/Act, UTP-Lk/Act,
	UTP-10/100, HDX/FDX
Power Requirements
DC Power	0.5A @ 5VDC
DC Power Connector	2.5mm DC Jack - Center Positive
AC Power Adapter	100-120VAC/60Hz
[US]	0.03A @ 120VAC
AC Power Adapter	100-240VAC/50-60Hz
[Universal or
	0.03A @ 120VAC
Country/Region Specific]

SPECIFICATIONS (CONT):

Dimension	W:1.71" x L:4.10" x H:0.84"
Weight
without power adapter	4 oz.
with USB power adapter cable	5 oz.
with AC power adapter [US]	12 oz.
with AC power adapter	18 oz.
[Universal]
Compliance	UL, CE, FCC Class A
Temperature
Operational - Commercial	0 to +50oC
Storage	-50 to +80oC
Humidity	5% to 95%
(non-condensing)
Altitude	-100m to 4000m
MTBF [hrs]
without power adapter	1,340,000
with US or
Country/Region Specific	250,000
power adapter
with Universal power adapter	100,000

Warning

The operating description in this Instruction Manual is for use by qualified personnel only. To avoid electrical shock, do not perform any servicing of this unit other than that contained in the operating instructions, unless you are qualified and certified to do so by Omnitron Systems Technology, Inc.

Caution

All user-required operations can be performed without opening the unit. Never attempt to open or remove the cover or tamper with the unit.

Warranty

This product is warranted to the original purchaser against defects in material and workmanship for a period of TWO YEARS from the date of shipment. A LIFETIME warranty may be obtained by the original purchaser by REGISTERING this product with Omnitron within 90 days from the date of shipment. TO REGISTER, COMPLETEAND MAIL OR FAX THE ENCLOSED REGISTRATION FORM TO THE INDICATEDADDRESS. Or you may register your product on the internet at http://www.omnitron-systems.com. During the warranty period, Omnitron will, at its option, repair or replace a product which is proven to be defective.

For warranty service, the product must be sent to an Omnitron designated facility, at Buyer’s expense. Omnitron will pay the shipping charge to return the product to Buyer’s designated US address using Omnitron’s standard shipping method.

Limitation of Warranty

The foregoing warranty shall not apply to defects resulting from improper or inadequate use and/or maintenance of the equipment by Buyer, Buyer-supplied equipment, Buyer-supplied interfacing, unauthorized modifications or tampering with equipment (including removal of equipment cover by personnel not specifically authorized and certified by Omnitron), or misuse, or operating outside the environmental specification of the product (including but not limited to voltage, ambient

temperature, radiation, unusual dust, etc.), or improper site preparation or maintenance.

No other warranty is expressed or implied. Omnitron specifically disclaims the implied warranties of merchantability and fitness for any particular purpose.

Exclusive Remedies

The remedies provided herein are the Buyer’s sole and exclusive remedies. Omnitron shall not be liable for any direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any legal theory.

TECHNICAL SUPPORT:

For help with this product, contact Omnitron’s Tech. Support:

Phone:	(949) 250-6510
Fax:	(949) 250-6514
Address: Omnitron Systems Technology, Inc.
	140 Technology Drive, #500
	Irvine, CA 92618 USA
E-mail:	support@omnitron-systems.com
URL:	http://www.omnitron-systems.com
