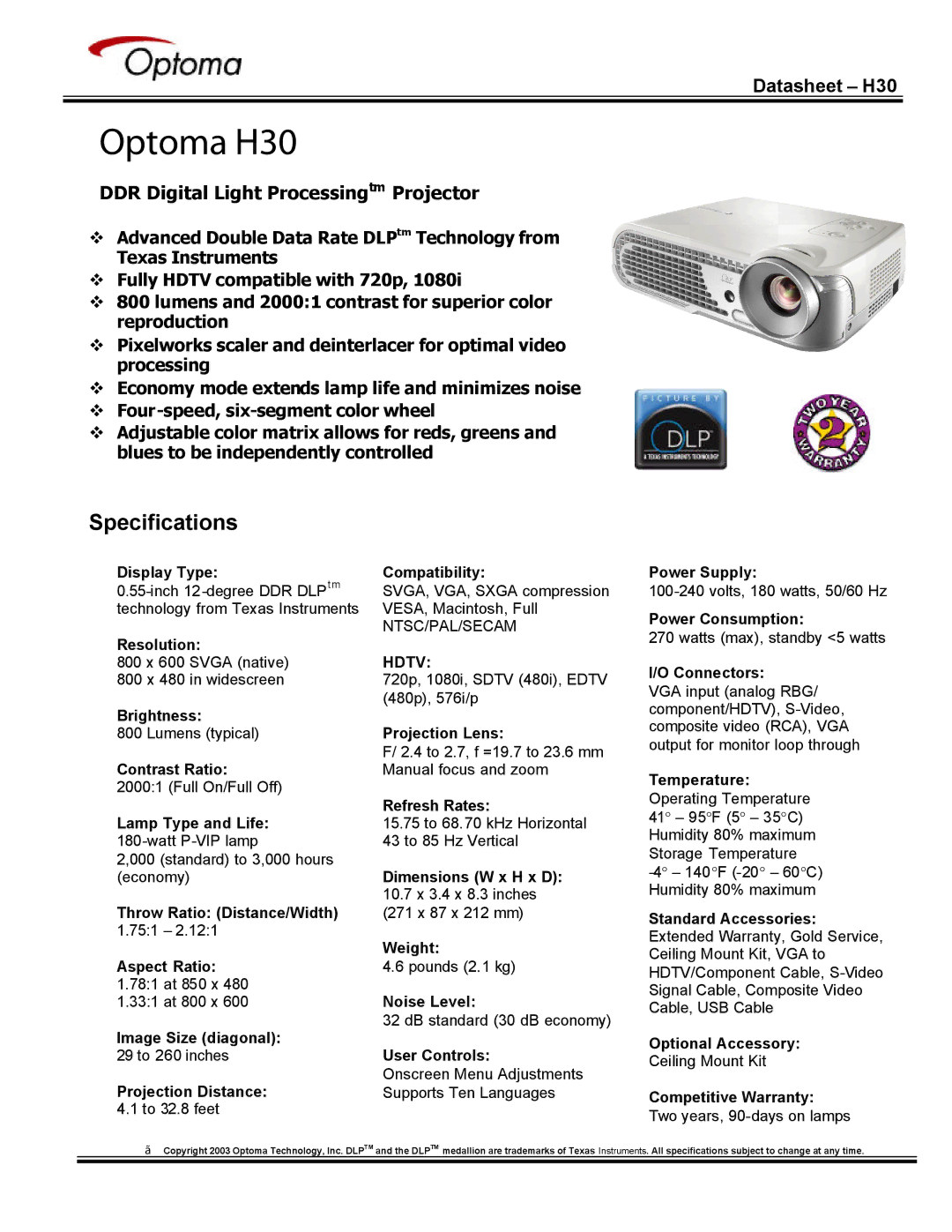

Optoma H30

DDR Digital Light Processingtm Projector

vAdvanced Double Data Rate DLPtm Technology from Texas Instruments

vFully HDTV compatible with 720p, 1080i

v800 lumens and 2000:1 contrast for superior color reproduction

vPixelworks scaler and deinterlacer for optimal video processing

vEconomy mode extends lamp life and minimizes noise

vFour-speed, six-segment color wheel

vAdjustable color matrix allows for reds, greens and blues to be independently controlled

Datasheet – H30

Specifications

Display Type:

0.55-inch 12-degree DDR DLPtm technology from Texas Instruments

Resolution:

800 x 600 SVGA (native)

800 x 480 in widescreen

Brightness:

800 Lumens (typical)

Contrast Ratio:

2000:1 (Full On/Full Off)

Lamp Type and Life:

180-watt P-VIP lamp

2,000 (standard) to 3,000 hours (economy)

Throw Ratio: (Distance/Width)

1.75:1 – 2.12:1

Aspect Ratio: 1.78:1 at 850 x 480 1.33:1 at 800 x 600

Image Size (diagonal):

29 to 260 inches

Projection Distance:

4.1 to 32.8 feet

Compatibility:

SVGA, VGA, SXGA compression VESA, Macintosh, Full

NTSC/PAL/SECAM

HDTV:

720p, 1080i, SDTV (480i), EDTV (480p), 576i/p

Projection Lens:

F/ 2.4 to 2.7, f =19.7 to 23.6 mm Manual focus and zoom

Refresh Rates:

15.75to 68.70 kHz Horizontal 43 to 85 Hz Vertical

Dimensions (W x H x D):

10.7x 3.4 x 8.3 inches

(271 x 87 x 212 mm)

Weight:

4.6 pounds (2.1 kg)

Noise Level:

32 dB standard (30 dB economy)

User Controls:

Onscreen Menu Adjustments Supports Ten Languages

Power Supply:

100-240 volts, 180 watts, 50/60 Hz

Power Consumption:

270 watts (max), standby <5 watts

I/O Connectors:

VGA input (analog RBG/ component/HDTV), S-Video, composite video (RCA), VGA output for monitor loop through

Temperature:

Operating Temperature

41° – 95°F (5° – 35°C) Humidity 80% maximum Storage Temperature -4°– 140°F (-20°– 60°C) Humidity 80% maximum

Standard Accessories: Extended Warranty, Gold Service, Ceiling Mount Kit, VGA to HDTV/Component Cable, S-Video Signal Cable, Composite Video Cable, USB Cable

Optional Accessory:

Ceiling Mount Kit

Competitive Warranty:

Two years, 90-days on lamps

ã Copyright 2003 Optoma Technology, Inc. DLPT M and the DLPTM medallion are trademarks of Texas Instruments. All specifications subject to change at any time.
