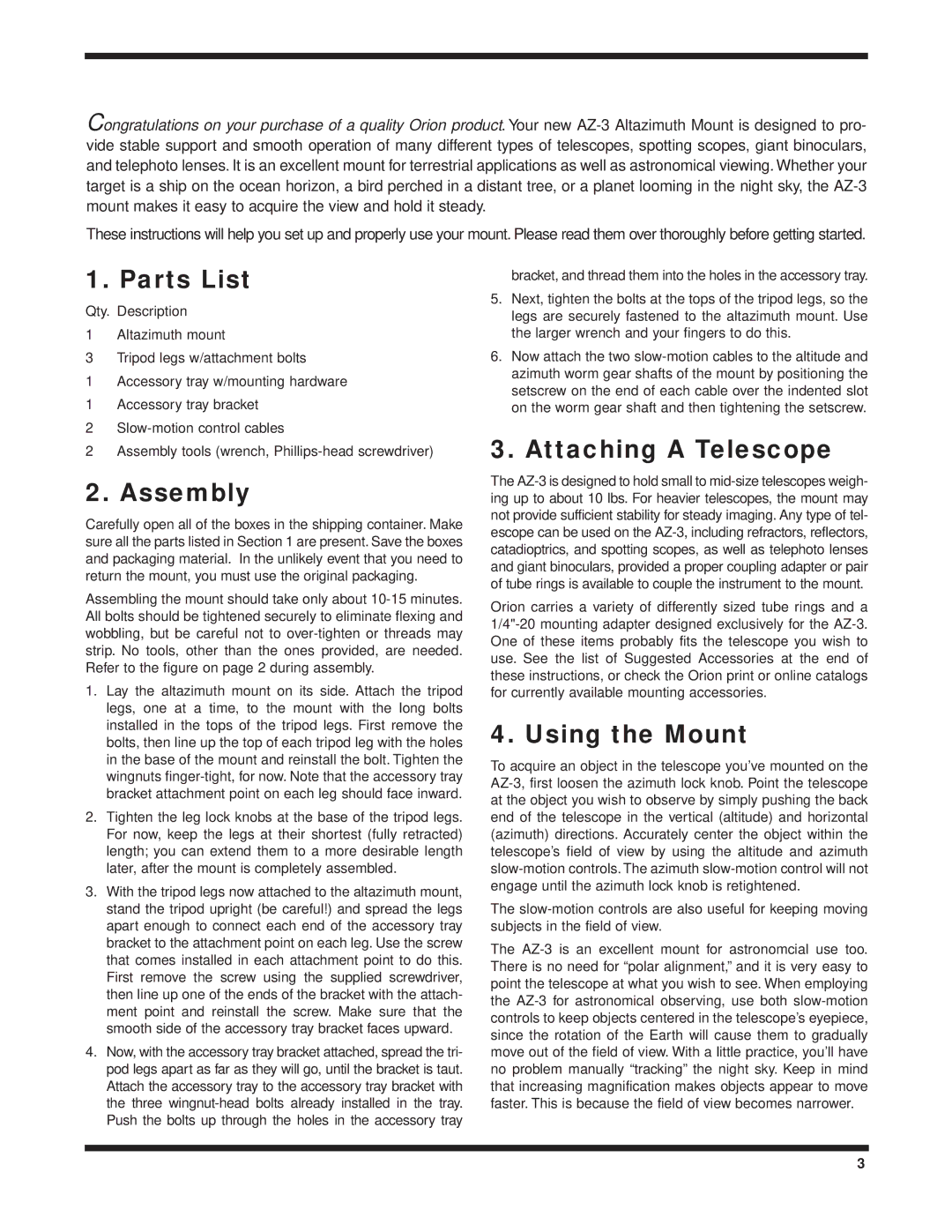

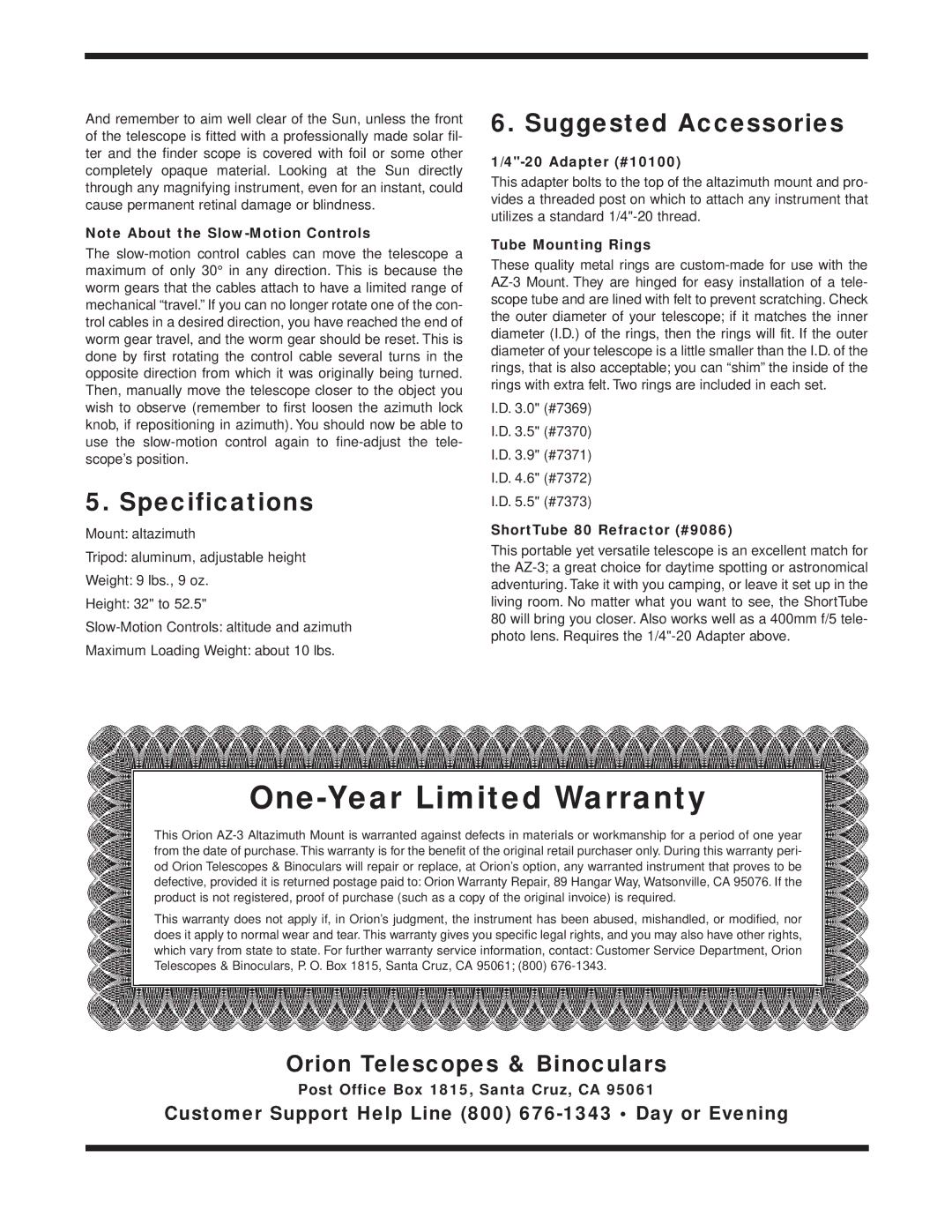

And remember to aim well clear of the Sun, unless the front of the telescope is fitted with a professionally made solar fil- ter and the finder scope is covered with foil or some other completely opaque material. Looking at the Sun directly through any magnifying instrument, even for an instant, could cause permanent retinal damage or blindness.

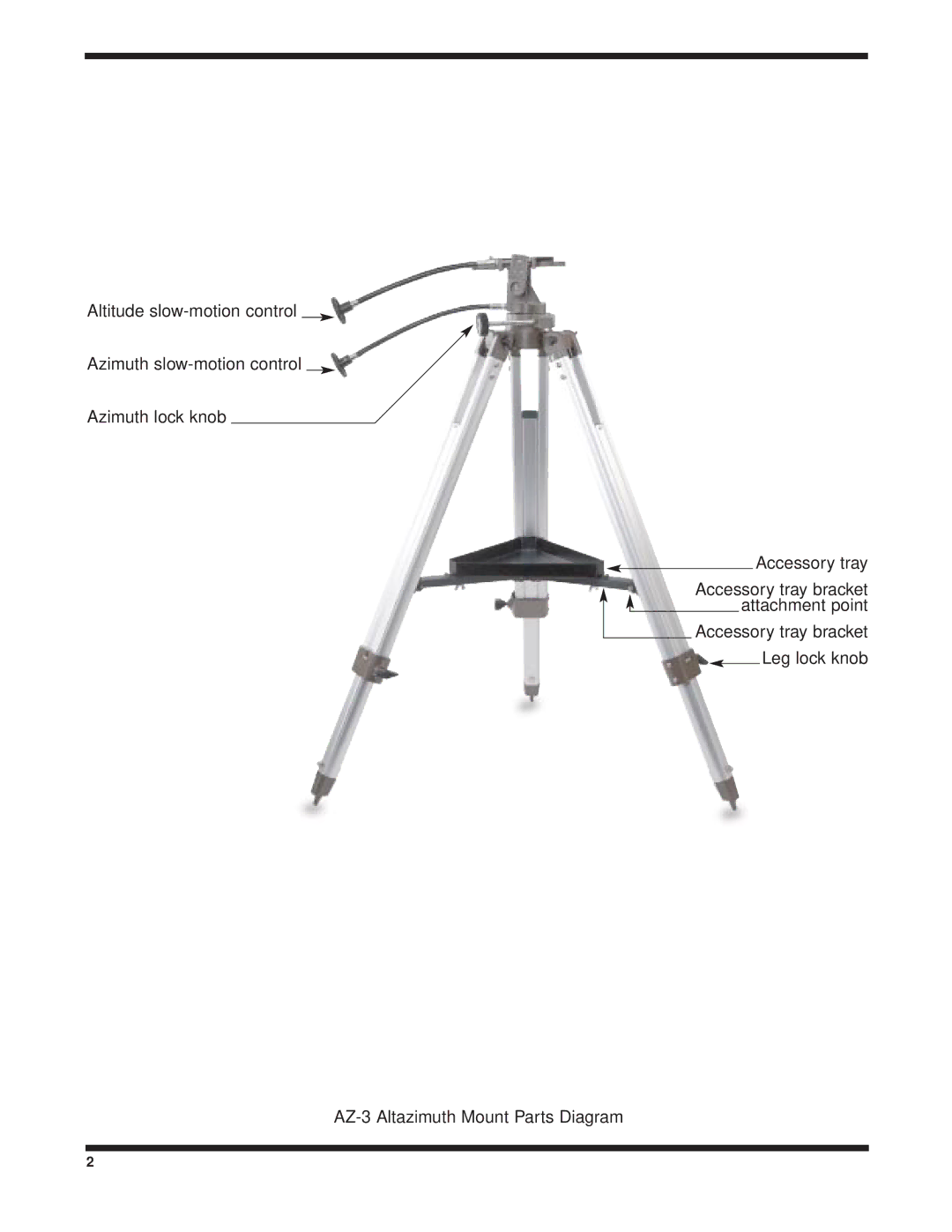

Note About the Slow-Motion Controls

The slow-motion control cables can move the telescope a maximum of only 30° in any direction. This is because the worm gears that the cables attach to have a limited range of mechanical “travel.” If you can no longer rotate one of the con- trol cables in a desired direction, you have reached the end of worm gear travel, and the worm gear should be reset. This is done by first rotating the control cable several turns in the opposite direction from which it was originally being turned. Then, manually move the telescope closer to the object you wish to observe (remember to first loosen the azimuth lock knob, if repositioning in azimuth). You should now be able to use the slow-motion control again to fine-adjust the tele- scope’s position.

5. Specifications

Mount: altazimuth

Tripod: aluminum, adjustable height

Weight: 9 lbs., 9 oz.

Height: 32" to 52.5"

Slow-Motion Controls: altitude and azimuth

Maximum Loading Weight: about 10 lbs.

6. Suggested Accessories

1/4"-20 Adapter (#10100)

This adapter bolts to the top of the altazimuth mount and pro- vides a threaded post on which to attach any instrument that utilizes a standard 1/4"-20 thread.

Tube Mounting Rings

These quality metal rings are custom-made for use with the AZ-3 Mount. They are hinged for easy installation of a tele- scope tube and are lined with felt to prevent scratching. Check the outer diameter of your telescope; if it matches the inner diameter (I.D.) of the rings, then the rings will fit. If the outer diameter of your telescope is a little smaller than the I.D. of the rings, that is also acceptable; you can “shim” the inside of the rings with extra felt. Two rings are included in each set.

I.D. 3.0" (#7369)

I.D. 3.5" (#7370)

I.D. 3.9" (#7371)

I.D. 4.6" (#7372)

I.D. 5.5" (#7373)

ShortTube 80 Refractor (#9086)

This portable yet versatile telescope is an excellent match for the AZ-3; a great choice for daytime spotting or astronomical adventuring. Take it with you camping, or leave it set up in the living room. No matter what you want to see, the ShortTube 80 will bring you closer. Also works well as a 400mm f/5 tele- photo lens. Requires the 1/4"-20 Adapter above.

One-Year Limited Warranty

This Orion AZ-3 Altazimuth Mount is warranted against defects in materials or workmanship for a period of one year from the date of purchase. This warranty is for the benefit of the original retail purchaser only. During this warranty peri- od Orion Telescopes & Binoculars will repair or replace, at Orion’s option, any warranted instrument that proves to be defective, provided it is returned postage paid to: Orion Warranty Repair, 89 Hangar Way, Watsonville, CA 95076. If the product is not registered, proof of purchase (such as a copy of the original invoice) is required.

This warranty does not apply if, in Orion’s judgment, the instrument has been abused, mishandled, or modified, nor does it apply to normal wear and tear. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. For further warranty service information, contact: Customer Service Department, Orion Telescopes & Binoculars, P. O. Box 1815, Santa Cruz, CA 95061; (800) 676-1343.

Orion Telescopes & Binoculars

Post Office Box 1815, Santa Cruz, CA 95061

Customer Support Help Line (800) 676-1343 • Day or Evening
