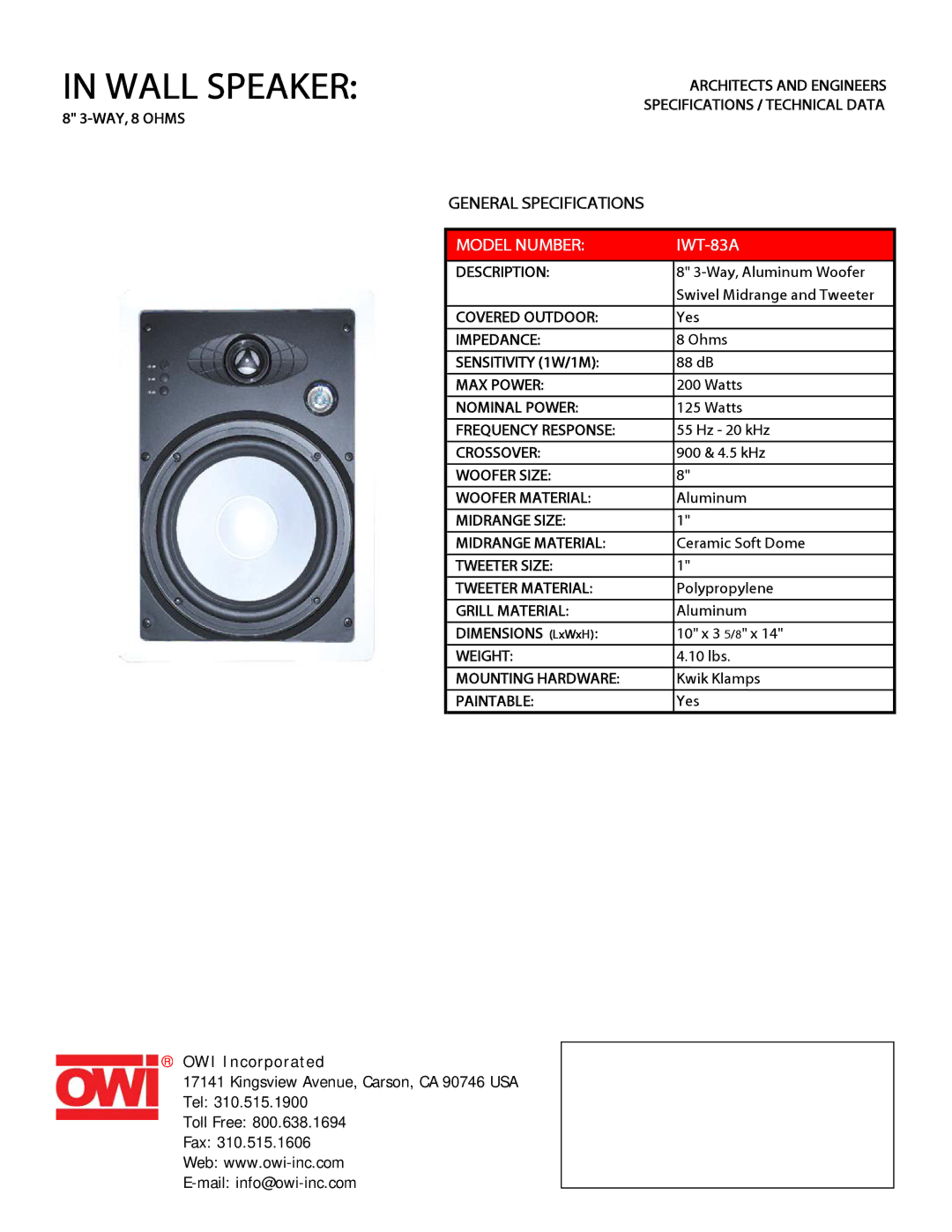

IN WALL SPEAKER:
8"
ARCHITECTS AND ENGINEERS
SPECIFICATIONS / TECHNICAL DATA
GENERAL SPECIFICATIONS
MODEL NUMBER: |
|
|
|
DESCRIPTION: | 8" |
| Swivel Midrange and Tweeter |
|
|
COVERED OUTDOOR: | Yes |
|
|
IMPEDANCE: | 8 Ohms |
SENSITIVITY (1W/1M): | 88 dB |
|
|
MAX POWER: | 200 Watts |
NOMINAL POWER: | 125 Watts |
FREQUENCY RESPONSE: | 55 Hz - 20 kHz |
|
|
CROSSOVER: | 900 & 4.5 kHz |
WOOFER SIZE: | 8" |
WOOFER MATERIAL: | Aluminum |
|
|
MIDRANGE SIZE: | 1" |
MIDRANGE MATERIAL: | Ceramic Soft Dome |
|
|
TWEETER SIZE: | 1" |
|
|
TWEETER MATERIAL: | Polypropylene |
GRILL MATERIAL: | Aluminum |
|
|
DIMENSIONS (LxWxH): | 10" x 3 5/8" x 14" |
WEIGHT: | 4.10 lbs. |
MOUNTING HARDWARE: | Kwik Klamps |
|
|
PAINTABLE: | Yes |
