U S I N G T H E E X T E R N A L U N W I N D E R

The Monarch® 945™ External Unwinder is an optional device used with the Monarch® 9855® and 9860® Printers . The unwinder is capable of holding a 12 inch roll of supply. It unrolls inside or outside wound supplies. The unwinder comes assembled. These instructions help explain how to set up and use the unwinder.

A s s e m b l i n g t h e W i n d i n g A x l e F l a n g e s

1 . Slide the flange with the small setscrew on the axle end that has a setscrew groove. Make sure the setscrew seats in the groove and tighten it.

Small Setscrew

Setscrew Groove

Large Thumbscrew

2 . Slide the roll of supply onto the axle then the flange with the large thumbscrew and tighten it.

3 . Place the axle assembly into the notches of the unwinder frame.

TC9800UWSG Rev. AB 12/07 ♥2005 Paxar Americas, Inc. a subsidiary of Avery Dennison Corp. All rights reserved.

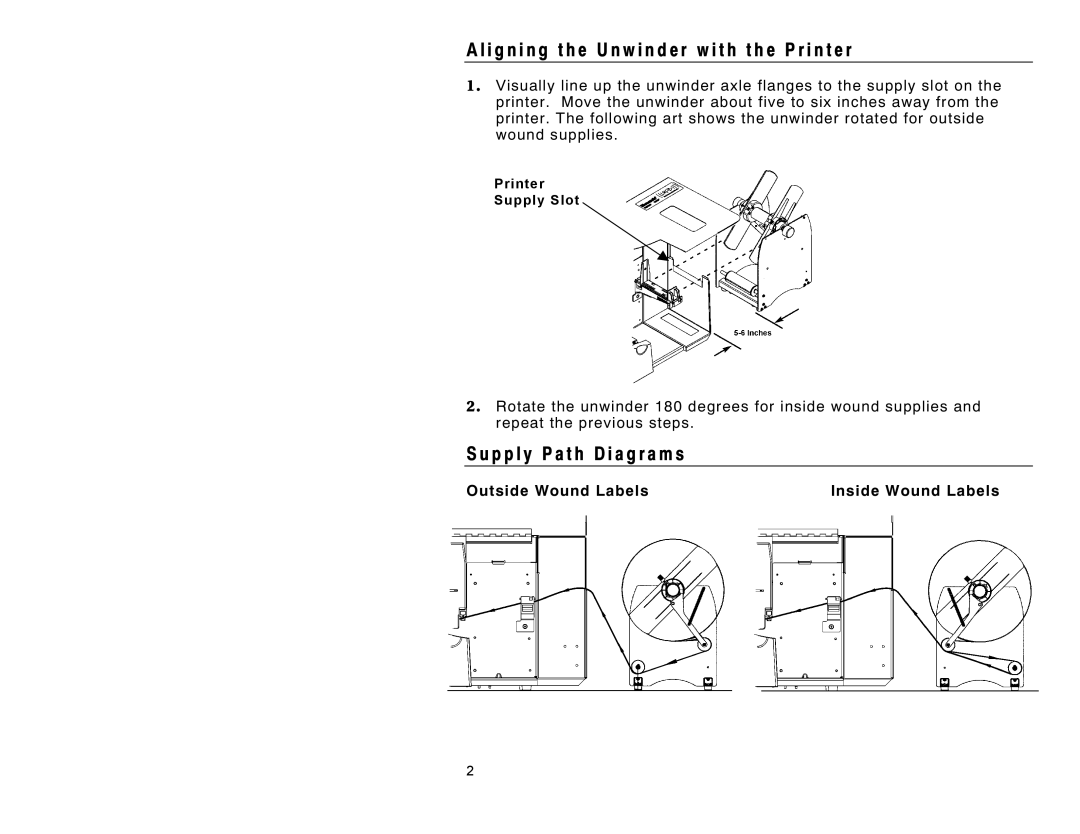

Page 1 Page 2
Page 1
Image 1
Paxar Monarch 945 manual I N G T H E E X T E R N a L U N W I N D E R
Page 1 Page 2

Monarch 945 specifications

The Paxar Monarch 945 is a powerful printing solution designed to meet the diverse labeling needs of businesses across various industries. Known for its reliability and efficiency, this printer is particularly favored in environments where productivity and speed are key.

One of the standout features of the Monarch 945 is its high-speed printing capability. Offering print speeds of up to 6 inches per second, the Monarch 945 enables users to produce a large volume of labels in a short amount of time. This makes it an ideal choice for retail, manufacturing, and logistics operations where time is of the essence.

The Monarch 945 utilizes thermal transfer printing technology, which allows for high-quality, durable labels. This technology ensures that the printed materials are resistant to smudging and fading, which is essential for labels that need to withstand various environmental factors. The ability to print on a variety of label materials adds to its versatility, allowing users to select the best medium for their specific requirements.

Another significant characteristic of the Monarch 945 is its user-friendly interface. The printer features an intuitive LCD display that simplifies operation and setup. Users can navigate menus and make adjustments easily, enhancing overall efficiency. Additionally, the Monarch 945 supports a variety of label sizes, accommodating different applications within a single device.

In terms of connectivity, the Monarch 945 is equipped with multiple options, including USB and serial interfaces, making it compatible with a range of systems. This flexibility allows businesses to integrate the printer into their existing workflows seamlessly.

Furthermore, the Monarch 945 is supported by robust software, which enhances its functionality. This software suite includes tools for label design and management, giving users the ability to create custom labels that meet their branding and regulatory needs.

With its combination of speed, durability, and versatility, the Paxar Monarch 945 is an exceptional choice for businesses that require a reliable labeling solution. Its advanced technologies and user-centric design make it a leading option in the market, capable of handling the demands of various labeling tasks with ease. Whether for retail, warehousing, or manufacturing, the Monarch 945 stands out as a crucial asset in optimizing labeling operations.
