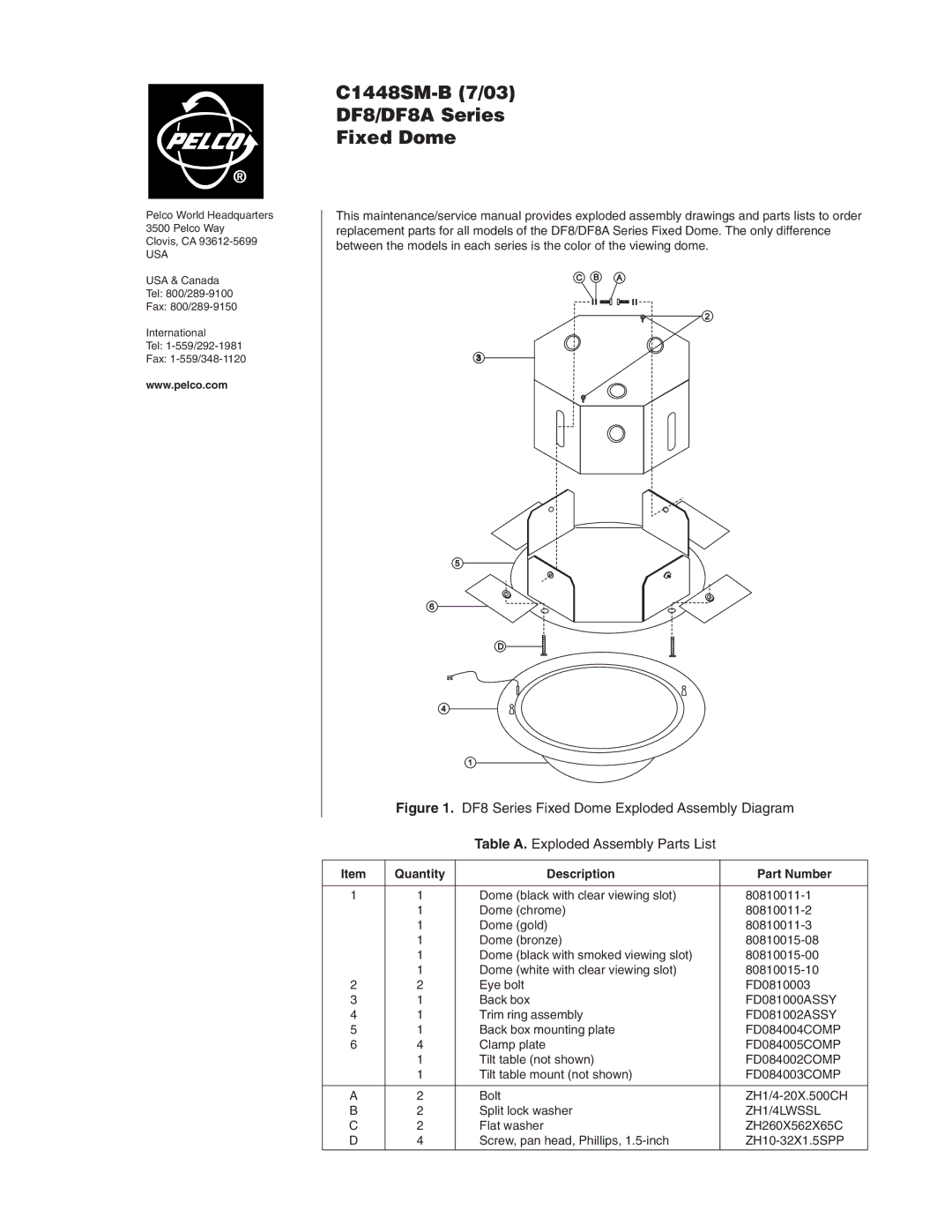

11





21

3













23





13









2





15







16







8







18



12

14



7

19













6

4





22







5





9

17

20

10

1

Figure 2. DF8A Series Fixed Dome Exploded Assembly Diagram

Table B. Exploded Assembly Parts List

Item

Quantity

Description

Part Number









1

1

Trim ring leash

MF00-7050-135

2

4

Spring clip

70610027

3

5

Knockout seal, 3/4-inch conduit

70610048

4

1

Dome (black with clear viewing slot)

80810011-1



1

Dome (chrome)

80810011-2



1

Dome (gold)

80810011-3



1

Dome (black with smoked viewing slot)

80810015-00



1

Dome (bronze)

80810015-08



1

Dome (white with clear viewing slot)

80810015-10

5

1

Trim ring assembly

DF81001ASSY

6

2

Bracket, ball stud

DF84001COMP

7

1

Bracket, leash

DF84008COMP

8

1

Tilt table

FD084002COMP

9

1

Tilt table mount

FD084003COMP

10

2

Bracket, ball stud/trim ring

FD084011COMP

11

1

Back box

MF03-0081-002B

12

2

Ball stud

PT180410000

13

2

Ball stud receiver

PT180410001

14

1

1/4-20 hex nut

ZH1/4-20NUTCH

15

1

Screw, 1/4-20 x .500-inch hex

ZH1/4-20X.500CH

16

2

Split lock washer

ZH1/4LWSSL

17

2

Nylon washer

ZH171X375X62N

18

2

Flat washer

ZH260X562X65C

19

2

Hex nut 6-32

ZH6-32NUTSH

20

2

Star lock washer, #6

ZH6LWSIS

21

4

Push nut bolt retainer, #8

ZH810000

22

4

Screw, pan head, Phillips, 8-32 x 3-1/2-inch

ZH8-32X3.50SPP

23

10

Pop rivet

ZHRVT1/8X1/4CE









REVISION HISTORY

Manual #

Date

Comments

C1448SM

4/99

Original version.



7/99

Revised Figure 2 to add nylon washers (p/n ZH131X361X62N). Revised Table B to change the back box part number and add





other parts and numbers.



8/00

Revised part number for item 11 in Table B.

C1448SM-A

6/02

Revised Table B item 17 by changing nylon washers (P/N ZH131361X62N to ZH171X375X62N per ECO# 02-8074.

C1448SM-B

7/03

Revised part number for item 1 in Table B per ECO# 02-8560.

® Pelco and the Pelco logo are registered trademarks of Pelco.

© Copyright 2003, Pelco. All rights reserved.

Page 2
