PRODUCT NUMBER 19A580BQ

TECHNICAL SPECIFICATIONS:

CRT WITH PIXEL-PERFECT

TECHNOLOGY





Size and Deflection



19"/48 cm, 90°

VIS



18.0"

Horizontal Pitch



0.22 mm

Dot Pitch



0.26 mm

Tube Type



Flat Square



Super High Contrast





Invar Shadow Mask

Screen Treatment



CrystalClear

Coating



ARASC



46% Light Transmission

Phosphor



P22

Recommended Display Area

14.2" x 10.6"/





360 x 270 mm

Maximum Display Area



14.4" x 10.7"/





365.5 x 273 mm

Focus



ADF-SD™

Convergence

Self Converging Yoke

SCANNING





Horizontal Frequency



30 - 107kHz

Vertical Frequency



50 - 160Hz

VIDEO





Video Dot Rate



230MHz

Input Impedance:



75Ω

- Video



- Sync



2.2 kΩ

Input Signal Levels:



.7Vp-p or 1.0Vp-p

- Sync Input Signal



Separate Sync





Composite Sync



Sync on Green (Auto)

AUDIO





Loudspeakers



2 Built-In Front



Firing Stereo @ 2 Watts

Earphone Output



Stereo

Microphone



Internal Electrical



Condenser Microphone

DISPLAY AND PERFORMANCE PARAMETERS

White Color Temperature and Chromaticity

CIE Coordinates:







at 9300˚K:





x = 0.283







y = 0.298

at 6500˚K:





x = 0.313







y = 0.329

at 5500˚K:





x = 0.332







y = 0.347

RESOLUTION AND PRESET MODES

Maximum Resolution

1800 x 1350 @ 75Hz

14 User Definable Modes





13 Factory Preset Modes:





Resolution Mode

H. Freq. V. Freq. Standard



(kHz)

(Hz)



640 x 400

31.5

70

VGA®

640 x 480

31.5

60

VGA

640 x 480

37.5

75

VESA®/75

800 x 600

46.9

75

SVGA®

800 x 600

53.7

85

VESA/85

1024 x 768

60.0

75

XGA

1024 x 768

68.6

85

VESA/85

1152 x 870

69.0

75

Mac®

1152 x 900

71.8

76

SUNSPARC

1280 x 1024

80.0

75

SXGA

1280 x 1024

91.0

85

VESA/85

1600 x 1200

93.8

75

VESA/75

1600 x 1200

106.3

85

VESA/85

PLUG-AND-PLAY COMPATIBILITY

Display Data Channel DDCI/2B (VESA)

POWER MANAGEMENT

Complies with EPA Energy Star, NUTEK, and TCO ’95 Specifications

Philips 109 consumes less than 5 Watts in Power Off mode

REGULATORY APPROVALS

UL

CSA

FCC-B

CE

TCO ’95 (Ergonomic & Environmental)

SEMKO

TUV/GS

TUV-ERGO

DHHS

LOW-EMISSION CHARACTERISTICS Complies with MPR-II and TCO 1995 Specifications

CONTROLS AND CONNECTIONS Top:

-Power On/Off

Front:

-OSD Knob

-Select Button

-Audio Mute Button

Side:

-Headphone and Microphone Sockets

Rear:

-Power Input Socket

-15-Pin D-Sub Input Socket

-2-Channel Audio Input Cinch Sockets

-Microphone Out Socket

-BNC x 5 Connectors

-USB Bay™

-Input Selector Switch

Cables:

-Detachable Power Cord

-Detachable D-Sub Interface Cable

-Detachable Stereo Audio Cable

-Detachable Microphone Cable

-Switchless Mac Adaptor

OSD Menu Structure:



Brightness and Contrast



Geometry:





- H-Shift

- H-Size

- Zoom

- V-Shift

- V-Size

- H-moiré

- Tilt

- Trapezoid

- V-moiré

- Parallelogram

- Pincushion

- Upper Corner

- Unbalanced Pincushion

- Lower Corner

Correction





Color:





-9300˚K Factory Preset

-6500˚K Factory Preset

-5500˚K Factory Preset

-User Preset 1, Red, Green, Blue Gain

-User Preset 2, Red, Green, Blue Gain

-User Preset 3, Red, Green, Blue Gain

-Recall User Presets

Degauss

OSD Position

Input Selection

Rotary Default

Reset Factory Settings

Audio: Bass, Treble, Balance, Volume, Mute

Display Language:

-Multilingual, User-selectable Colorific® Software for Windows® and Mac

PHYSICAL SPECIFICATIONS

Unit Dimensions 19.1"W x 19.3"H x 20.3"D/



485 x 490 x 515 mm



(including pedestal)

Unit Weight

53.8 lbs./24.5 kg.

Carton Dimensions 23.5"W x 24.9" H x 25.6"D/



596 x 632 x 650 mm

Carton Weight

63.8 lbs./29 kg.

UPC

0 37849 86800 3

Power Supply

90 - 264 Vac, 50/60Hz

Power Consumption

110 Watts Maximum

Operating Temperature

32°F to 104°F/



0°C to 40°C

Relative Humidity

10% to 90%

Storage Temperature

-40°F to 149°F/



-40°C to 60°C

Relative Humidity

5% to 95%

MTBF

>75,000 Hours



(excluding CRT)

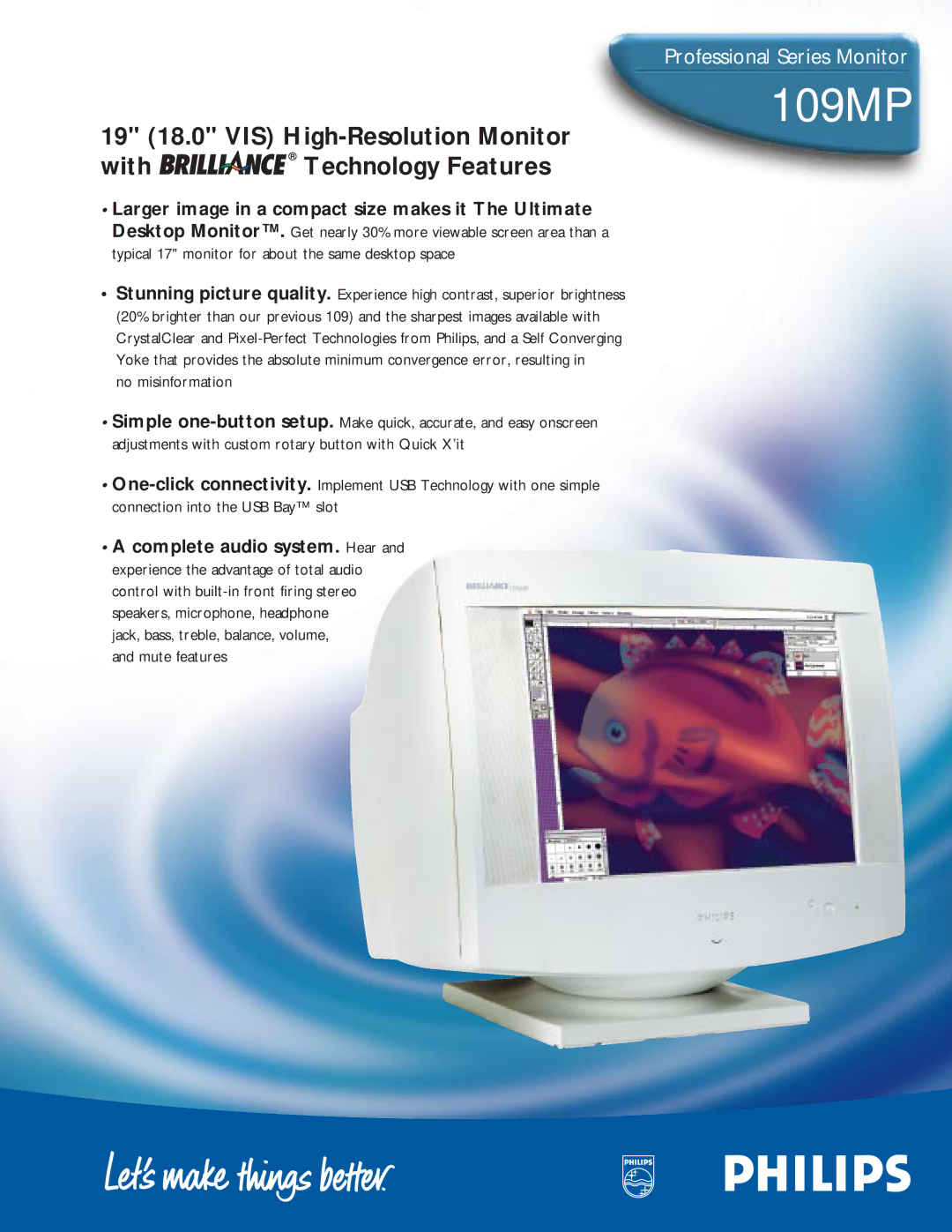

Professional Series Monitor

109MP

USB Bay with optional USBody™

USB TECHNOLOGY

With the USBody, USB Technology is simply one click away. Just insert the USBody into the USB Bay, plug in the USB peripheral, and let the PC do the rest. Don’t worry about IRQ settings, hardware interrupts, or jumpers–with USB, those decisions will be automatically made

by your operating system.

®

(available with USBody only)

Carton Contains: 109MP Color Monitor, V69 Cable, Audio and Mic Cables, Switchless MCC Adaptor, Power Cable, User’s Manual, and Warranty Card

This monitor fulfills all NUTEK requirements regarding power management as indicated on the TCO 1995 label.

The EPA ENERGY STAR emblem does not represent EPA endorsement of any product or service. As an ENERGY STAR Partner, Philips has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Brilliance, USB Bay, USBody, CrystalClear, CustoMax, Brilliance and “The Ultimate Desktop Monitor” are registered trademarks of Philips Electronics N.V.

Mac is a registered trademark of Apple Computer, Inc.

VESA is a registered trademark of the Video Electronics Standards Association. VGA and SVGA are registered trademarks of

International Business Machines Corp.

Windows is a registered trademark of Microsoft Corp. Specifications subject to change without notice.

Printed in the U.S.A.

©1998 Philips Consumer Electronics Co.

A Division of Philips Electronics North America Corp.

Philips Design Atlanta, Philips Consumer Electronics Co. 980191

FOR MORE INFORMATION

Internet Address: http://www.philipsmonitors.com

FAX INFORMATION SYSTEM: (423) 521-4341

TECHNICAL SUPPORT: (800) 835-3506 (USA) (423) 475-0280 (outside USA)

Literature order form: 19A580BQC
