Philips 15PF7835/37B owner manual Basic LCD TV and Remote Operation, Contents, LCD Television

LCD TV

Quick Use and Hookup Guide

CONTENTS

Important Notice/Warning	.1	Basic Antenna TV Connections	.2

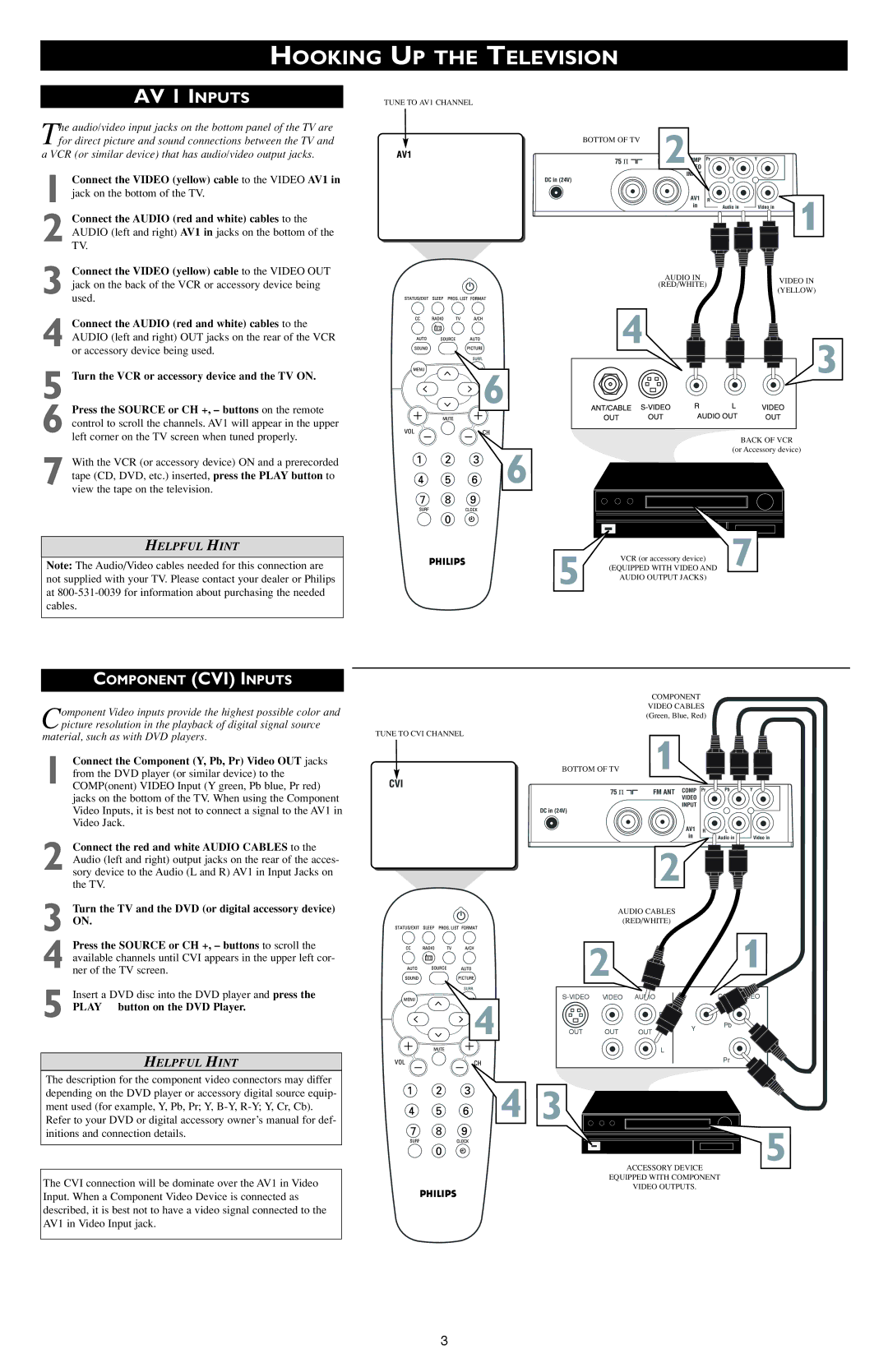

Basic TV Operation	.1	AV1 Input Connections	.3
Remote Battery Installation	.1	Component Video Input Connections	.3
Remote Control Button Descriptions	.1	Side AV Inputs	.4
Hooking up the Television		S-Video (Side) AV Inputs	.4

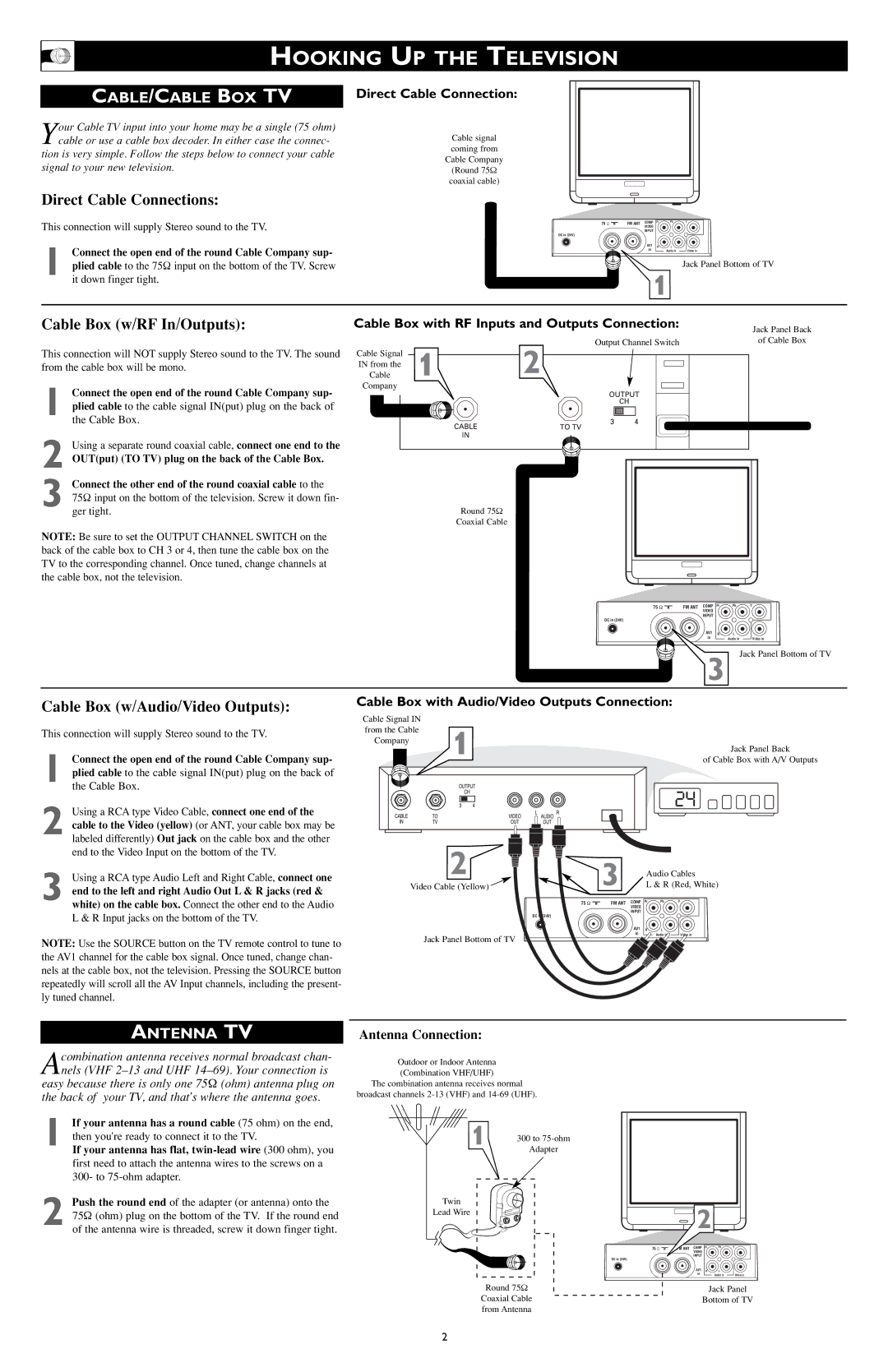

Basic Cable/Cable Box TV Connections	.2	Headphone and Data Jack	.4

IMPORTANT

NOTE: This owner's manual is used with several different television models. Not all features (and drawings) discussed in this manual will necessarily match those found with your television set. This is normal and does not require that you contact your dealer or request service.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS UNIT TO RAIN OR EXCESSIVE MOISTURE.

BASIC LCD TV AND REMOTE OPERATION

LCD TELEVISION		1	Volume and Channel buttons are located
	2		3 on the top of the television cabinet.
his LCD television has a set of controls located on the top of
Tthe cabinet for use when the remote control is not needed.

1 Press the POWER button on the front of the TV cabinet to turn the TV ON.

Note: With AutoChron ON, the TV will search for a PBS chan- nel to set the clock before powering itself on. This can take a few seconds.

2 Press the VOLUME + button to increase the sound level or the VOLUME – button to lower the sound level.

Pressing both buttons at the same time will display the onscreen menu. After you are in the menu, use these buttons to make adjustments or selections.

3 Press the CHANNEL or button to select TV channels. Use these buttons to make adjustments or selections in the onscreen menu.

There is also a set of Audio and Video Input jacks located on both sides and the bottom of the television cabinet. Refer to the Audio/Video Hookup sections within this Guide.

REMOTE CONTROL BATTERIES

To load the supplied batteries into the remote:

1 Remove the battery compartment door on the back of the remote.

2 Place the batteries (2-AA) in the remote. Be sure the (+) and

(–) ends of the batteries line up correctly (the inside of the case is marked).

3 Reattach the battery compartment door.

REMOTE CONTROL BUTTONS

Sleep Button - Press to set the TV to automatically turn itself OFF at a given amount of time.

Status/Exit Button - Press to see the current channel number on the TV screen. Also press to clear the TV screen after control adjust- ments.

Radio (Mode) Button - Press to directly enter the specific FM Radio mode.

CCButton - Press to select Closed Captioning options within the menu. (See the Directions for Use manual for details.)

Auto Sound Button - Press to select an AutoSound™ control. Choose from three factory-set controls (VOICE, MUSIC, and THE- ATRE) and a PERSONAL to tailor the TV sound to enhance the par- ticular type of program you are watching.

Source Button - Press repeatedly to select the different signal sources connected to the TV: TV (current channel), AV1, CVI, Side and S-video.

Menu Button - Press for the onscreen menu to appear. Pressing the menu button after menu selections are made will eliminate the menu from the display.

Cursor Buttons (Left, Right, Up, Down) - Press these buttons to highlight, select, and adjust items on the TV's onscreen menu.

Volume (+) or (–) Buttons - Press to adjust the TV sound level.

Mute Button - Press to turn the TV sound OFF. Press again to return the sound to its previous level.

Surf Button - Press to select previously viewed channels. You can place up to 10 channels in memory. Then by pressing the SURF but- ton you can quickly view the select channels. (See the “Using the Channel Surf Control” section in your Directions for Use manual to see how to select a series of channels using the Surf button.)

Be sure to point the remote at the Remote Sensor window on the front of the television when using the remote control to operate the television.

Remote Control

(shown from the bottom)

2 “AA” Batteries

DC Input located on the

bottom jack panel of the TV

(12V for 15” Model)

(24V for 20” Model)

DC in (12V) DC in (24V)

75 Π

DC in (24V)

Remote

Sensor

Window

Power Cord and Adapter

Battery Compartment Door

Battery Compartment

Power Button - Press to turn the TV ON and OFF.

Program List Button - Press to display a list of channel numbers and their names. Each channel will appear as a selectable menu item. Refer to the Program List section within the Directions for Use man- ual supplied with the TV for detailed instructions.

Format Button - Press to toggle the different screen format options.

A/CH Button - Press to toggle between the currently viewed channel and the previously viewed channel.

TV (Mode) Button - Press to directly enter the specific TV mode.

Auto Picture Button - Press to select an AutoPicture™ control. Choose from four factory-set controls (MOVIES, SPORTS, WEAK SIGNAL, and MULTI MEDIA) and a PERSONAL control that you set according to your own preferences through the onscreen PIC- TURE menu. The four factory-set controls will tailor the TV picture so as to enhance the particular type of program you are watching, or to improve the picture of a program that has a weak signal.

Surr. Sound Button - Press to set various factory Incredible Surround Sound listening modes. (Refer to the Incredible Surround section within the Directions for Use for detailed instructions.)

Channel (+) or (–) Buttons - Press to change the tuned channel.

Number Buttons - Press the number buttons to select TV channels. When selecting single-digit channels, press the number of the desired channel. The TV will pause for a few seconds and then tune to the selected channel. (Note: You can press 0, then the number also.) For channels 100 and above, first press 1 then the next two numbers of the desired channel.

Clock Button - Press the CLOCK button to access the onscreen Clock menu.

3139 125 31883
