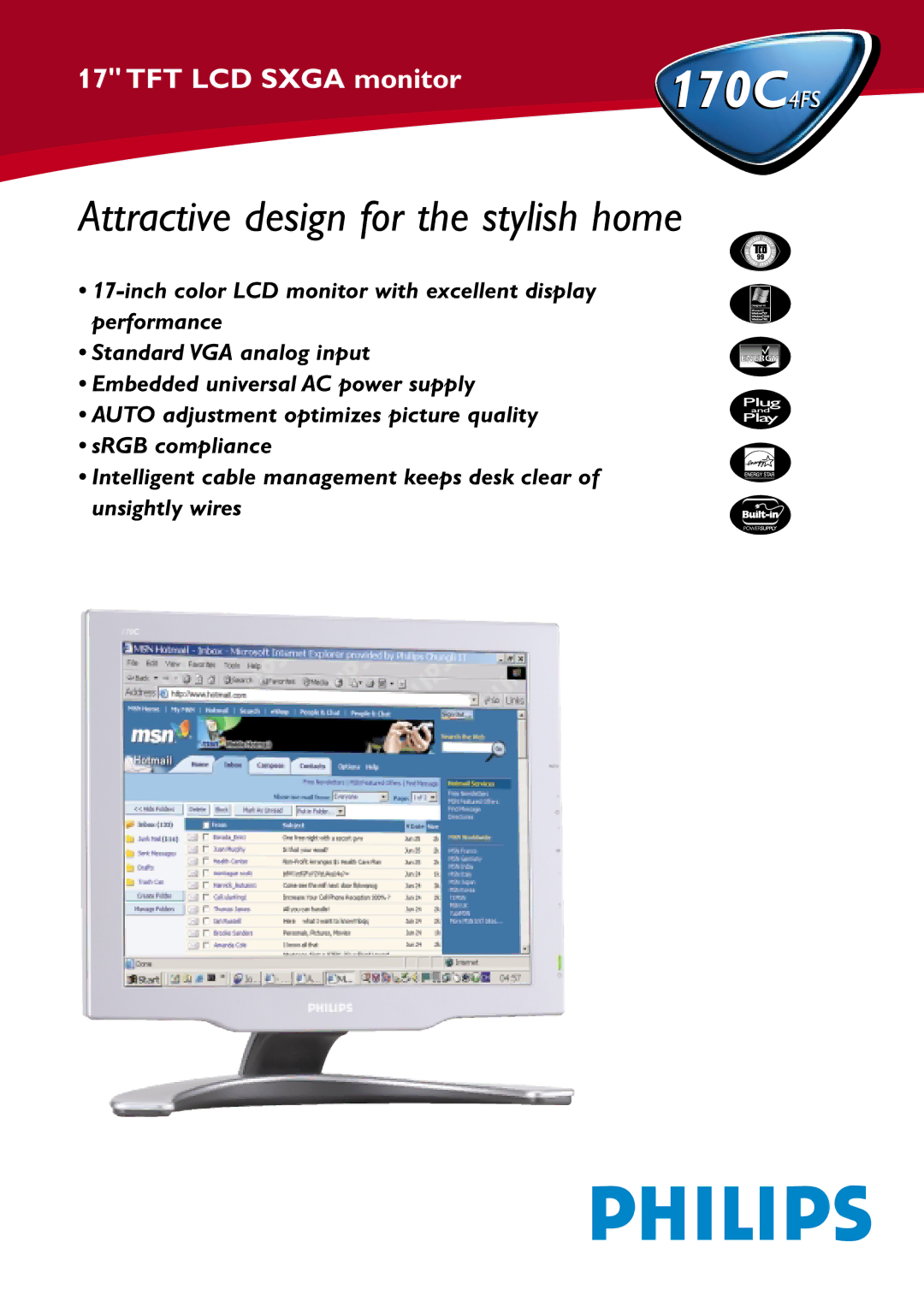

Philips 170C4FS manual TFT LCD SXGA monitor

17" TFT LCD SXGA monitor

Technical Specifications

LCD panel

•	Type	TFT LCD
•	Screen size	17 inch / 43.2 cm
•	Pixel pitch	0.264 x 0.264mm
•	LCD panel type	1280 x 1024 pixels
		R.G.B vertical stripe
		Anti-glare polarizer, hard coated
•	Effective viewing area	337.9 x 270.3mm
•	Display colors	16.7M colors

Scanning

•	Vertical refresh rate	56~76	Hz
•	Horizontal frequency	30~82	KHz

Video

• Video dot rate (Max.)		135 MHz
•	Input impedance
	- video	75 ohm
	- Sync	2K ohm
•	Input signal levels	0.7 Vpp
•	Sync input signal	Separate sync
		Composite sync
		Sync on green
•	Sync polarities	Positive and negative
•	Video interface	Analog (D-Sub) input

Optical characteristics

•	Contrast ratio	400 (typ.)
•	Brightness	250 cd/m2 (typ.)
•	Peak contrast angle	6 o'clock
•	White chromaticity	x: 0.283	y: 0.297 (at 9300°K)
		x: 0.313	y: 0.329 (at 6500°K)
•	Viewing angle	Upper	≥	80°(typ.)
	(C/R >5)	Lower	≥	80°(typ.)
		Left	≥	70°(typ.)
		Right	≥	70°(typ.)
•	Response time	≤ 25 ms (typ.)

Resolution & preset modes

•	Maximum	1280x1024 at 75Hz
•	Recommended	1280x1024 at 60Hz

•33 user definable modes

•15 factory preset modes

	H.freq (KHz)	V.freq (Hz)
640 x 350	31.5	70
720 x 400	31.5	70
640 x 480	31.5	60
640 x 480	35.0	67
640 x 480	37.5	75
800 x 600	35.2	56
800 x 600	37.9	60
800 x 600	46.9	75
832 x 624	49.7	75
1024 x 768	48.4	60
1024 x 768	60.0	75
1152 x 870	69.0	75
1152 x 900	71.8	76
1280 x 1024	63.9	60
1280 x 1024	80.0	75

(Interlace mode is not applicable)

Plug and play compatibility

•Display data channel DDC 2B (VESA)

•Microsoft® Windows® 95/98/ Me & 2000/ XP compatible

170C4FS

Power management

Complies with EPA Energy Star and NUTEK specifications

•	Typical operation	40W (typical)
•	Sleep mode	1W

Low-emission characteristics

•Complies with TCO 99, MPRII and prEN50279(so call MPRIII) specifications

Monitor controls and functions

•	Side	Power on/off	- Tact Switch
		OK	- Tact Switch
		Auto	- Tact Switch
		Up/Down	- Tact Switch
		(Brightness)
		Left / Right	- Tact Switch
•	LED indicator	Green	power on
		Amber	power save/OFF mode
		Flashing Green new mode

Connections and cables

• Connections on monitor body

- Video	15-pin D-sub (analog)connector
- DC output	12V, 6.5mm DC connector
- Power	IEC/CEE-22 type male power inlet
• Cables	D-Sub video cable, Power cable

Regulatory approvals

•TÜV/GS,TÜV-Ergo

•FCC-B, UL, CSA

•SEMKO

•prEN50279 Low Emission

•CE Mark

•NUTEK, Energy Star

•TCO ’99

Physical specifications

•Dim. incl. base (WxHxD) 399 x 398.2 x 197.2 mm

•Dim. excl. base (WxHxD)399 x 335.1 x 66.1 mm

•	Tilt	-5°~20°
•	Net Weight	4.2 Kg
•	Power supply	100 – 240 VAC, 50/60 Hz
•	Power consumption	40 W* (typ.)
•	Temperature (operating)	+5°C to +35°C
•	Temperature (storage)	-20°C to +60°C
•	Relative humidity	20% to 80%
•	System MTBF	50K hrs (excluding CCFL 40K hrs)

*Resolution 1280x1024, standard size, contrast max., brightness 50%, 9300°K, Full white pattern.

We recommend using 1280 x 1024 at 60Hz non-interlaced mode for the best picture quality

As an Energy Star partner, Philips has determined that this product meets the Energy Star guidelines for energy efficiency. Microsoft and Windows are registered trademarks of Microsoft Corporation

Macintosh is a registered trademark of Apple Computer, Inc.

All data subject to change without notice

Release date: June 2003
