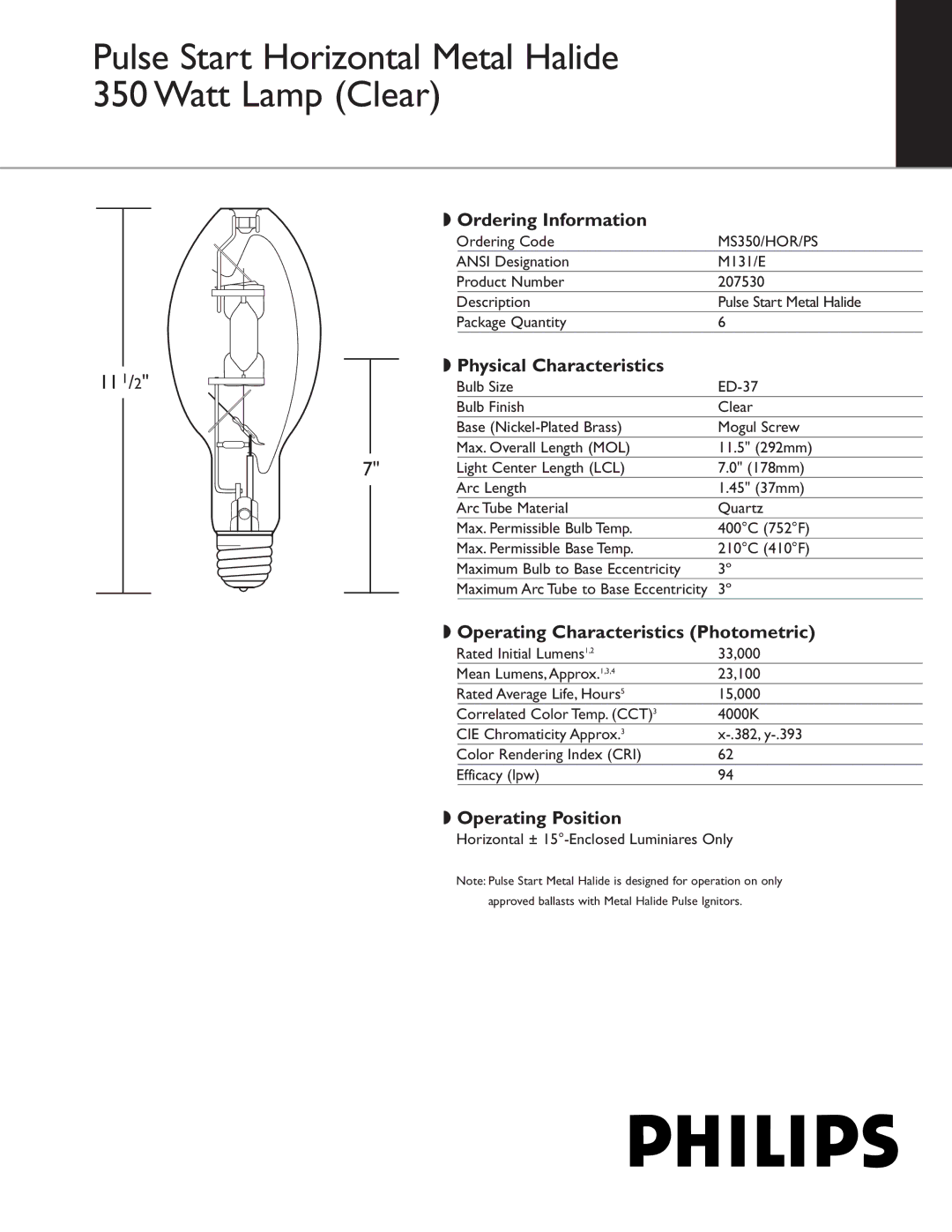

Pulse Start Horizontal Metal Halide 350 Watt Lamp (Clear)
11 1/2"
◗ Ordering Information
Ordering Code | MS350/HOR/PS |
ANSI Designation | M131/E |
Product Number | 207530 |
Description | Pulse Start Metal Halide |
Package Quantity | 6 |
|
|
|
| ◗ Physical Characteristics |
| |
|
|
|
|
| Bulb Size | |
|
|
|
|
| Bulb Finish | Clear |
|
|
|
|
| Base | Mogul Screw |
|
|
|
|
| Max. Overall Length (MOL) | 11.5" (292mm) |
| 7" |
|
|
|
| |
|
|
| Light Center Length (LCL) | 7.0" (178mm) | ||
|
|
|
|
| Arc Length | 1.45" (37mm) |
|
|
|
|
| ||
|
|
|
|
| Arc Tube Material | Quartz |
|
|
|
|
| Max. Permissible Bulb Temp. | 400°C (752°F) |
|
|
|
|
| Max. Permissible Base Temp. | 210°C (410°F) |
|
|
|
|
| Maximum Bulb to Base Eccentricity | 3º |
|
|
|
|
| Maximum Arc Tube to Base Eccentricity | 3º |
|
|
|
|
| ||
◗Operating Characteristics (Photometric)
Rated Initial Lumens1,2 | 33,000 |
Mean Lumens,Approx.1,3,4 | 23,100 |
Rated Average Life, Hours5 | 15,000 |
Correlated Color Temp. (CCT)3 | 4000K |
CIE Chromaticity Approx.3 | |
Color Rendering Index (CRI) | 62 |
Efficacy (lpw) | 94 |
◗Operating Position
Horizontal ±
Note: Pulse Start Metal Halide is designed for operation on only
approved ballasts with Metal Halide Pulse Ignitors.
