Important for the United Kingdom
This apparatus is fitted with an approved moulded 13 Amp
plug. To change a fuse in this type of plug proceed as follows:
aRemove fuse cover and fuse.
bFix new fuse which should be a BS1362 5A, A.S.T.A. or
BSI approved type.
cRefit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should
be cut off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of
5A. If a plug without a fuse is used, the fuse at the distribution
board should not be greater than 5A.
DNote: * The severed plug must be destroyedto avoid
a possible shock hazard should it be inserted into a
13A socket elsewhere.
How to connect a plug:
The wires in the mains lead are coloured in accordance with
the following code:
BLUE - ’NEUTRAL’ (’N’)
BROWN - ’LIVE’ (’L’)
dThe BLUE wire must be connected to the terminal which
is marked with the letter ’N’ or coloured BLACK.
eThe BROWN wire must be connected to the terminal
which is marked with the letter ’L’ or coloured RED.
fDo not connect either wires to the earth terminal in the
plug which is marked with the letter ’E’ or by the safety
earth symbol \or coloured green or green-and-yellow.
Before replacing the plug cover, make certain that the cord
grip is clamped over the sheath of the lead - not imply over the
two wires.

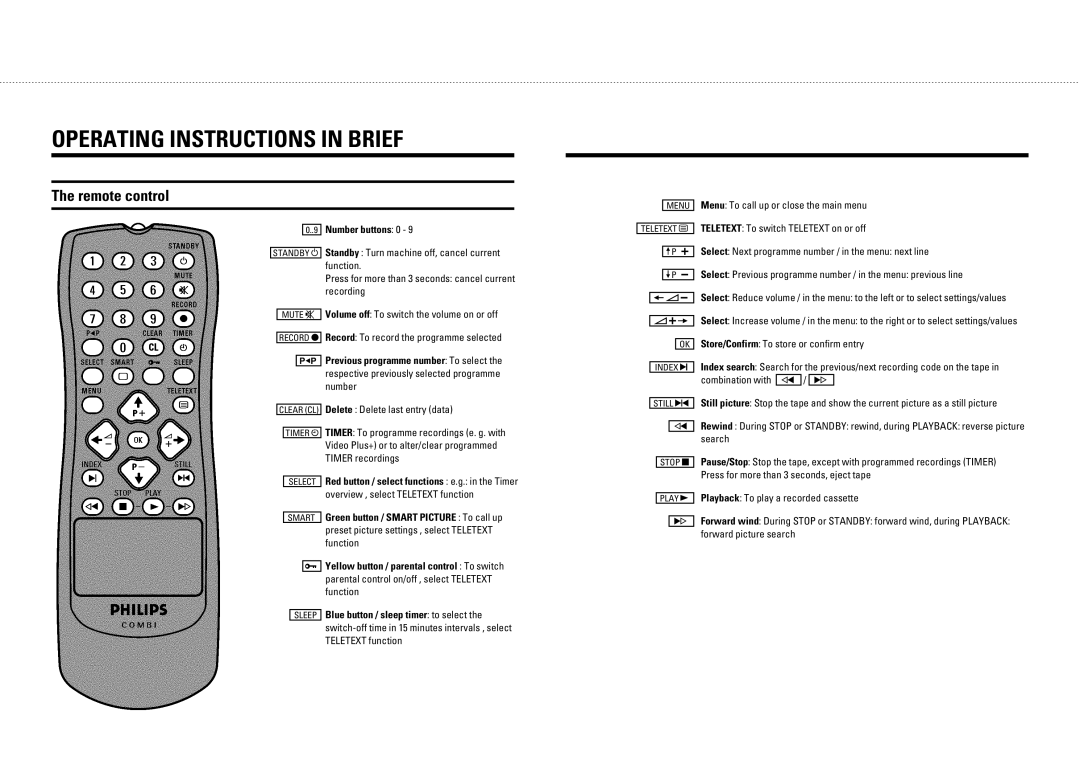

Placing the batteries in the remote control
aOpen up the battery compartment of your remote control
and place the batteries in it as shown in the picture.
bClose the battery compartment.
Connecting the cables
aInsert the aerial plug into the 2socket.
bInsert the plug of the mains cable into the wall socket.

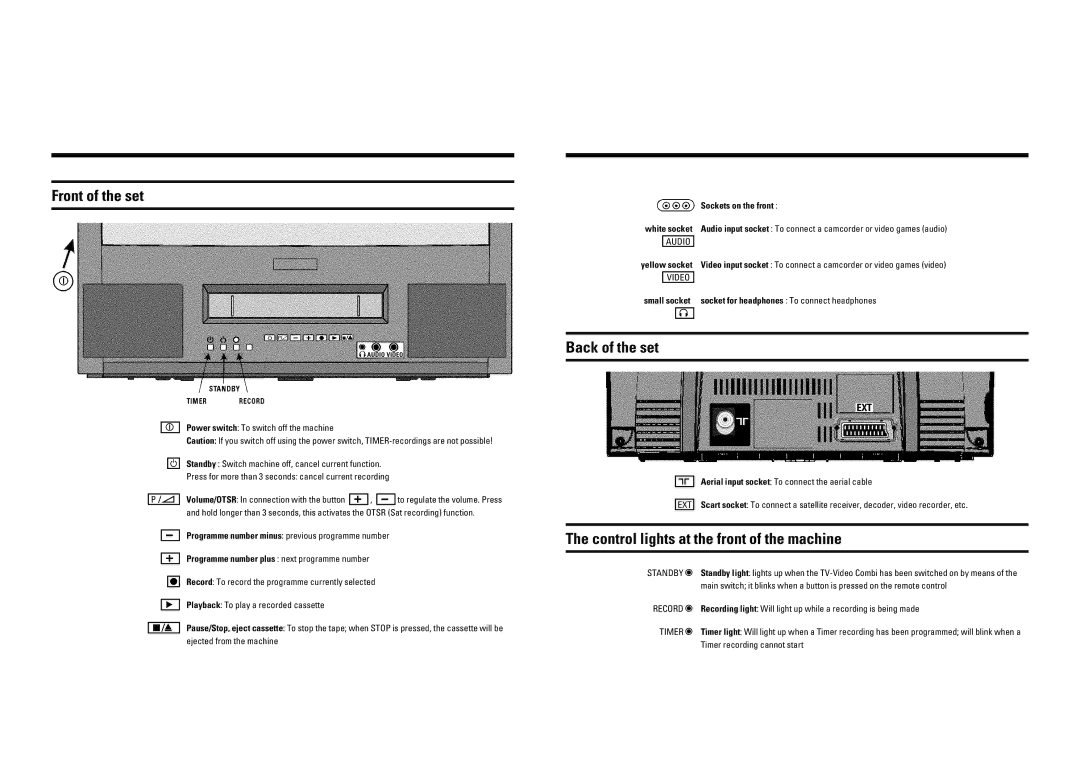

cIf the little red standby light (STANDBY5) at the front panel
of the set is not lit, please switch on the set using the
main power switch. The power switch 8is located on
the left side panel of the set.
This text will appear on the TV screen.

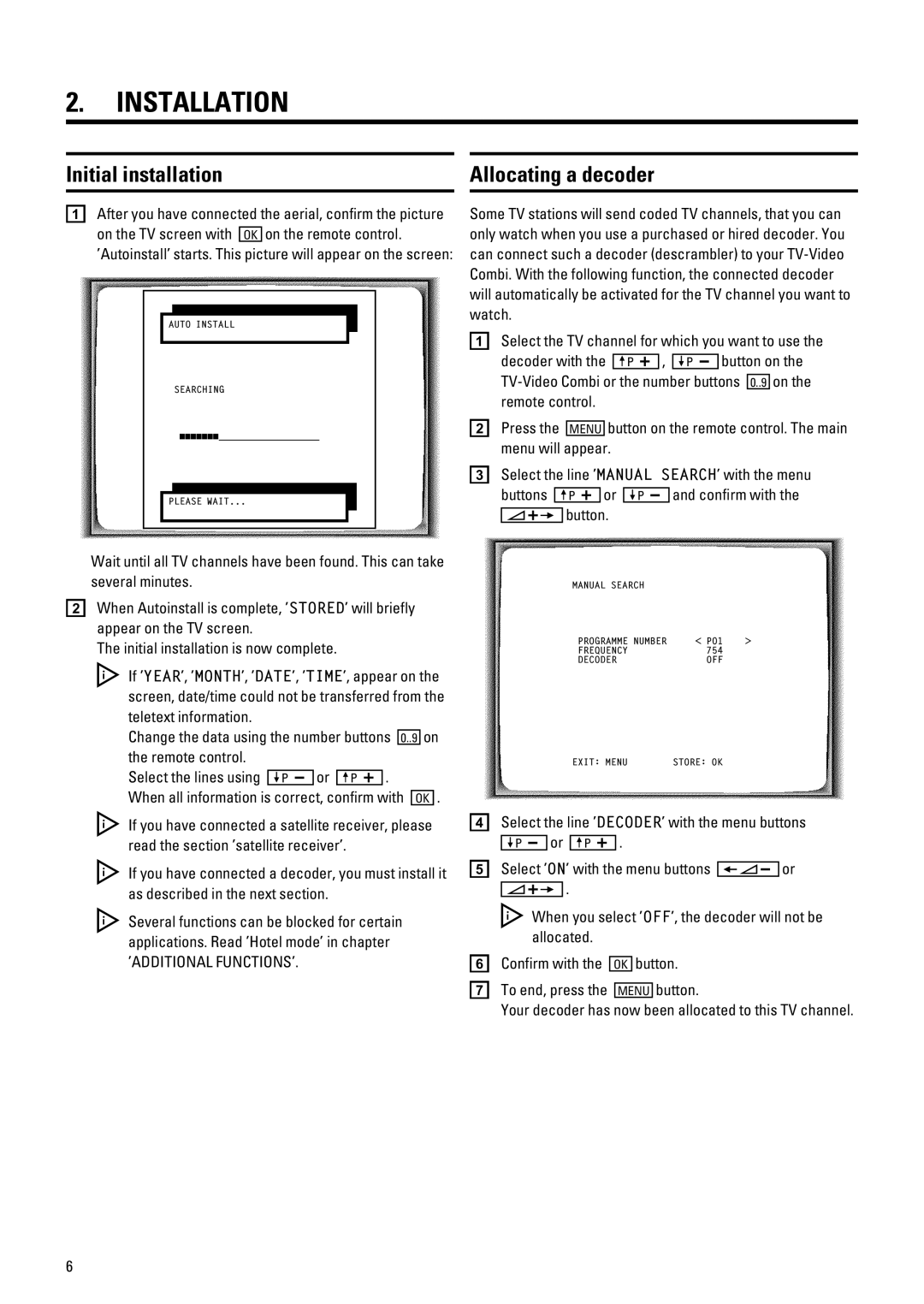

dThen, read the section ’Initial installation’ in the chapter
’INSTALLING YOUR VIDEO RECORDER’.
Connecting a decoder or other equipment
You can also connect additional equipment to the EXT
socket; for instance, a decoder, satellite receiver or
camcorder.
DThe respective scart socket is usually marked ’AV’
or ’VCR’ on the decoder or satellite receiver.
1. CONNECT THE TV-VIDEO COMBI5
