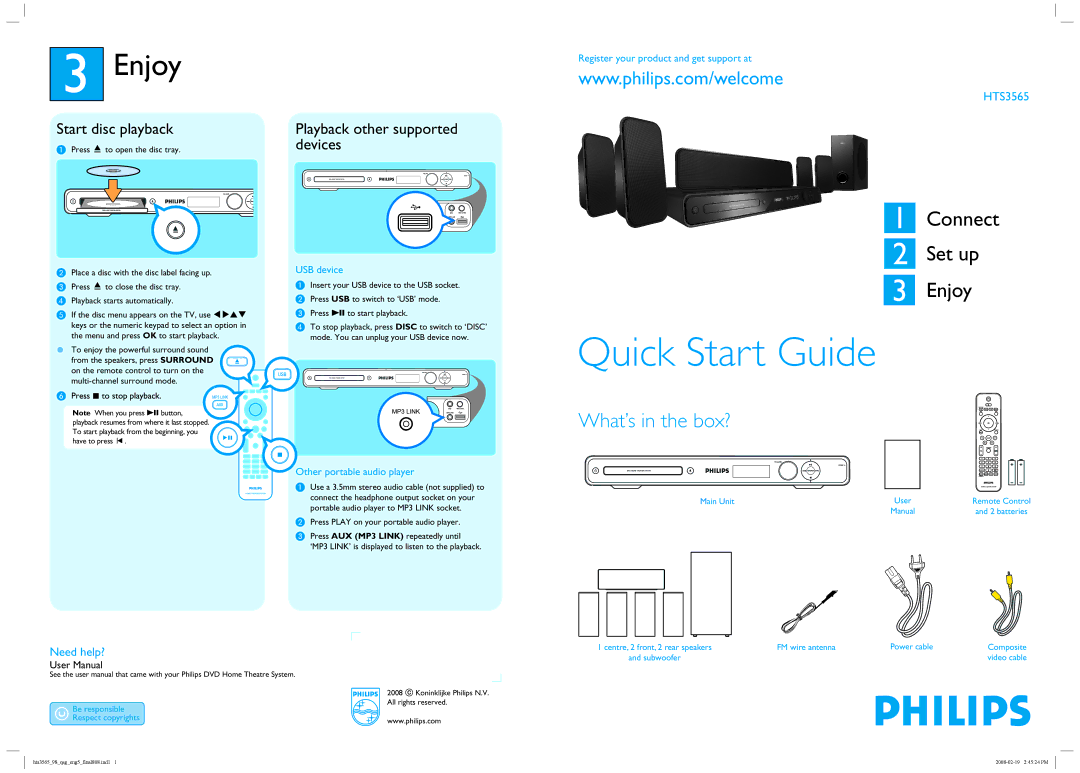

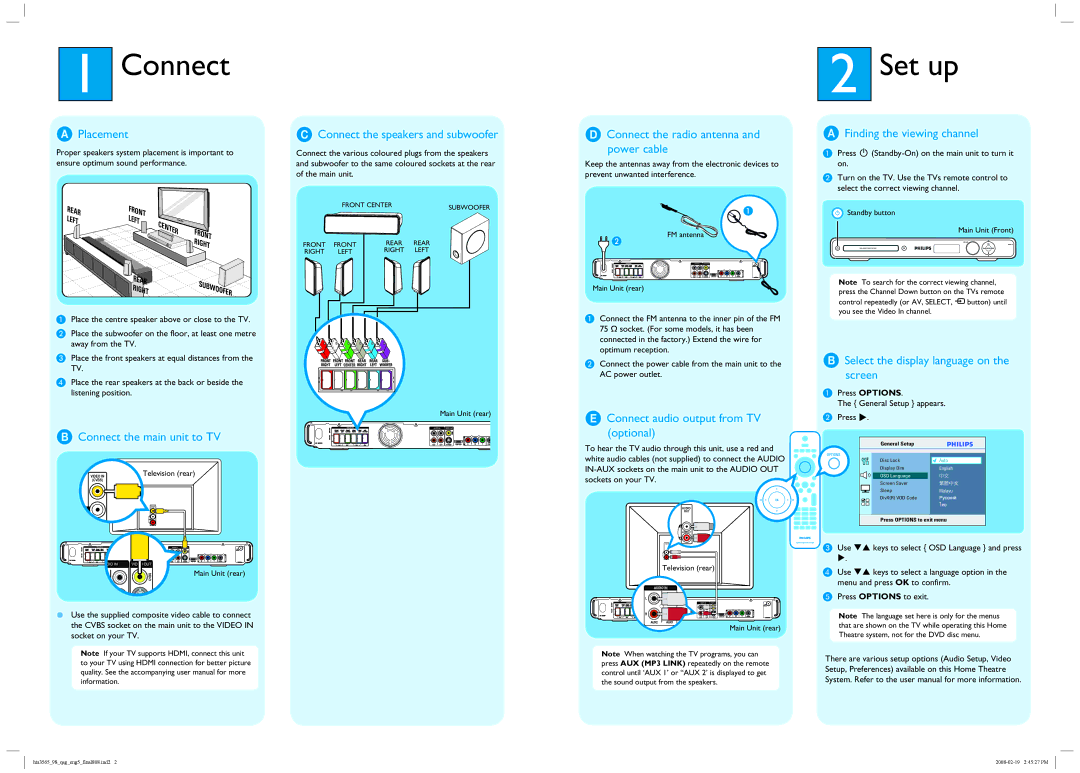

1Connect
APlacement
Proper speakers system placement is important to ensure optimum sound performance.
CConnect the speakers and subwoofer
Connect the various coloured plugs from the speakers and subwoofer to the same coloured sockets at the rear of the main unit.
DConnect the radio antenna and
power cable
Keep the antennas away from the electronic devices to prevent unwanted interference.
2Set up
AFinding the viewing channel
APress 2
BTurn on the TV. Use the TVs remote control to select the correct viewing channel.
REAR | FRONT |
|
|
LEFT | LEFT | CENTER |
|
|
| FRONT | |
|
|
| |
|
|
| RIGHT |
| FRONT CENTER | SUBWOOFER | |
|
|
| |
FRONT | FRONT | REAR | REAR |
RIGHT | LEFT | RIGHT | LEFT |
B
A |
FM antenna
Standby button
Main Unit (Front)
REAR | SUBWOOFER |
RIGHT |
APlace the centre speaker above or close to the TV.
BPlace the subwoofer on the floor, at least one metre away from the TV.
CPlace the front speakers at equal distances from the TV.
DPlace the rear speakers at the back or beside the listening position.
BConnect the main unit to TV
VIDEO IN | Television (rear) |
(CVBS) |
|
VIDEO IN |
(CVBS) |
Main Unit (rear)
zUse the supplied composite video cable to connect the CVBS socket on the main unit to the VIDEO IN socket on your TV.
Note If your TV supports HDMI, connect this unit to your TV using HDMI connection for better picture quality. See the accompanying user manual for more information.
Main Unit (rear)
Main Unit (rear)
AConnect the FM antenna to the inner pin of the FM 75 socket. (For some models, it has been connected in the factory.) Extend the wire for optimum reception.
BConnect the power cable from the main unit to the AC power outlet.
EConnect audio output from TV
(optional)
To hear the TV audio through this unit, use a red and white audio cables (not supplied) to connect the AUDIO
AUDIO
OUT
AUDIO OUT
AUDIO |
OUT |
AUDIO IN |
Television (rear) |
Main Unit (rear)
Note When watching the TV programs, you can press AUX (MP3 LINK) repeatedly on the remote control until ‘AUX 1’ or “AUX 2’ is displayed to get the sound output from the speakers.
Note To search for the correct viewing channel, press the Channel Down button on the TVs remote control repeatedly (or AV, SELECT, ° button) until you see the Video In channel.
BSelect the display language on the screen
APress OPTIONS.
The { General Setup } appears.
BPress .
|
|
| General Setup |
|
|
|
|
|
|
|
| ||||
|
|
|
|
|
|
|
|
|
|
| Disc Lock |
|
| ||
|
|
| Auto |
| |||
|
|
| Display Dim | English | |||
|
|
| OSD Language |
|
|
|
|
|
|
| Screen Saver |
|
|
|
|
|
|
| Sleep | Malayu | |||
|
|
| |||||
|
|
| DivX(R) VOD Code |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Press OPTIONS to exit menu | ||||
|
|
|
|
|
|
|
|
C Use | keys to select { OSD Language } and press |
. |
|
D Use | keys to select a language option in the |
menu and press OK to confirm.
EPress OPTIONS to exit.
Note The language set here is only for the menus that are shown on the TV while operating this Home Theatre system, not for the DVD disc menu.
There are various setup options (Audio Setup, Video Setup, Preferences) available on this Home Theatre System. Refer to the user manual for more information.
