Flash audio player

SA2848/93

4GB*

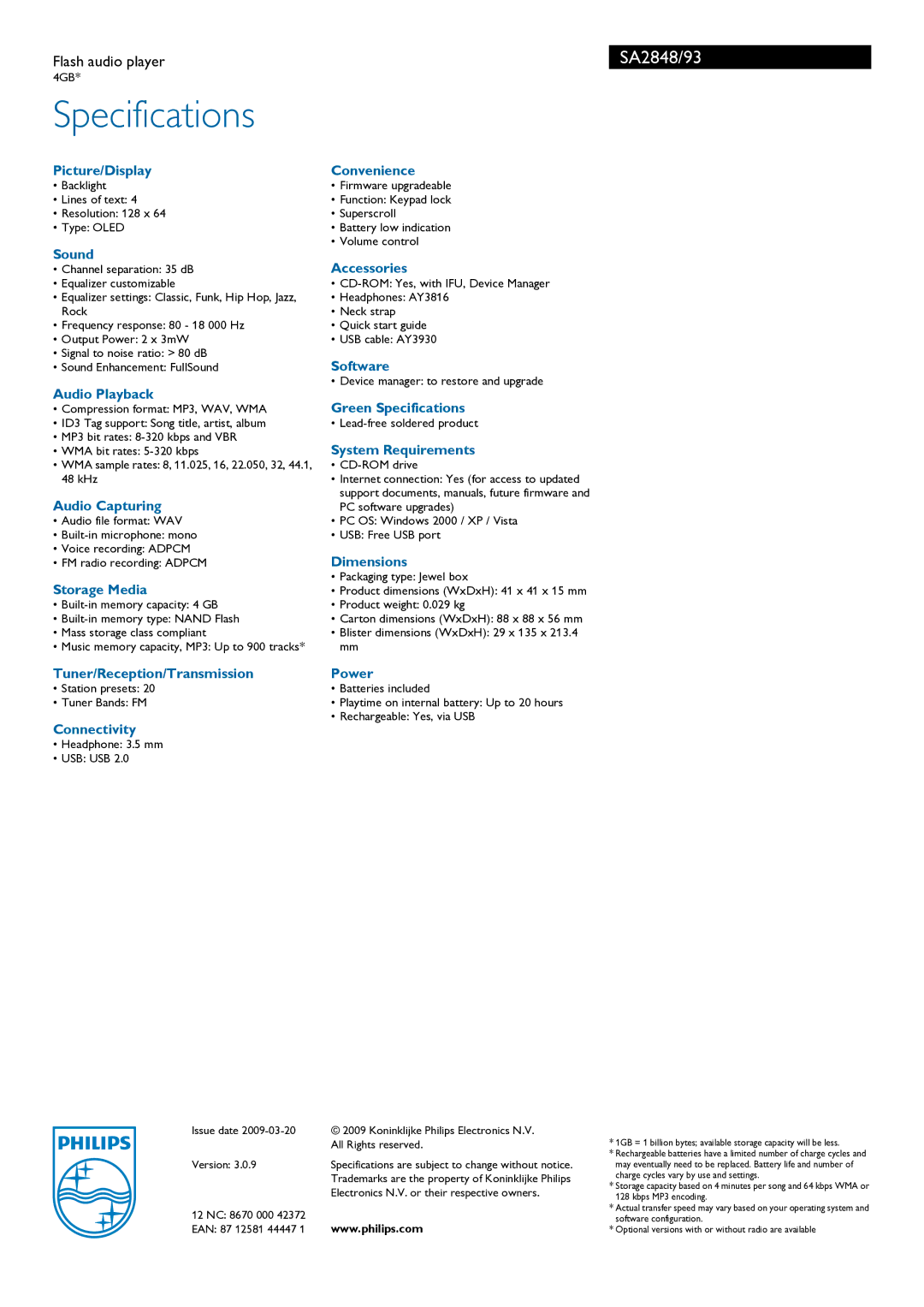

Specifications

Picture/Display

Backlight

Lines of text: 4

Resolution: 128 x 64

Type: OLED

Sound

Channel separation: 35 dB

Equalizer customizable

Equalizer settings: Classic, Funk, Hip Hop, Jazz, Rock

Frequency response: 80 - 18 000 Hz

Output Power: 2 x 3mW

Signal to noise ratio: > 80 dB

Sound Enhancement: FullSound

Audio Playback

Compression format: MP3, WAV, WMA

ID3 Tag support: Song title, artist, album

MP3 bit rates: 8-320 kbps and VBR

WMA bit rates: 5-320 kbps

WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1, 48 kHz

Audio Capturing

Audio file format: WAV

Built-in microphone: mono

Voice recording: ADPCM

FM radio recording: ADPCM

Storage Media

Built-in memory capacity: 4 GB

Built-in memory type: NAND Flash

Mass storage class compliant

Music memory capacity, MP3: Up to 900 tracks*

Convenience

Firmware upgradeable

Function: Keypad lock

Superscroll

Battery low indication

Volume control

Accessories

CD-ROM: Yes, with IFU, Device Manager

Headphones: AY3816

Neck strap

Quick start guide

USB cable: AY3930

Software

• Device manager: to restore and upgrade

Green Specifications

Lead-free soldered product

System Requirements

CD-ROM drive

Internet connection: Yes (for access to updated support documents, manuals, future firmware and PC software upgrades)

PC OS: Windows 2000 / XP / Vista

USB: Free USB port

Dimensions

Packaging type: Jewel box

Product dimensions (WxDxH): 41 x 41 x 15 mm

Product weight: 0.029 kg

Carton dimensions (WxDxH): 88 x 88 x 56 mm

Blister dimensions (WxDxH): 29 x 135 x 213.4 mm

Tuner/Reception/Transmission

Power

• Station presets: 20

• Batteries included

• Tuner Bands: FM

• Playtime on internal battery: Up to 20 hours

Connectivity

• Rechargeable: Yes, via USB



• Headphone: 3.5 mm



• USB: USB 2.0



Issue date 2009-03-20

© 2009 Koninklijke Philips Electronics N.V.



All Rights reserved.

Version: 3.0.9

Specifications are subject to change without notice.



Trademarks are the property of Koninklijke Philips



Electronics N.V. or their respective owners.

12 NC: 8670 000 42372

www.philips.com

EAN: 87 12581 44447 1

*1GB = 1 billion bytes; available storage capacity will be less.

*Rechargeable batteries have a limited number of charge cycles and may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.

*Storage capacity based on 4 minutes per song and 64 kbps WMA or 128 kbps MP3 encoding.

*Actual transfer speed may vary based on your operating system and software configuration.

*Optional versions with or without radio are available
