Philips SRU 510/87

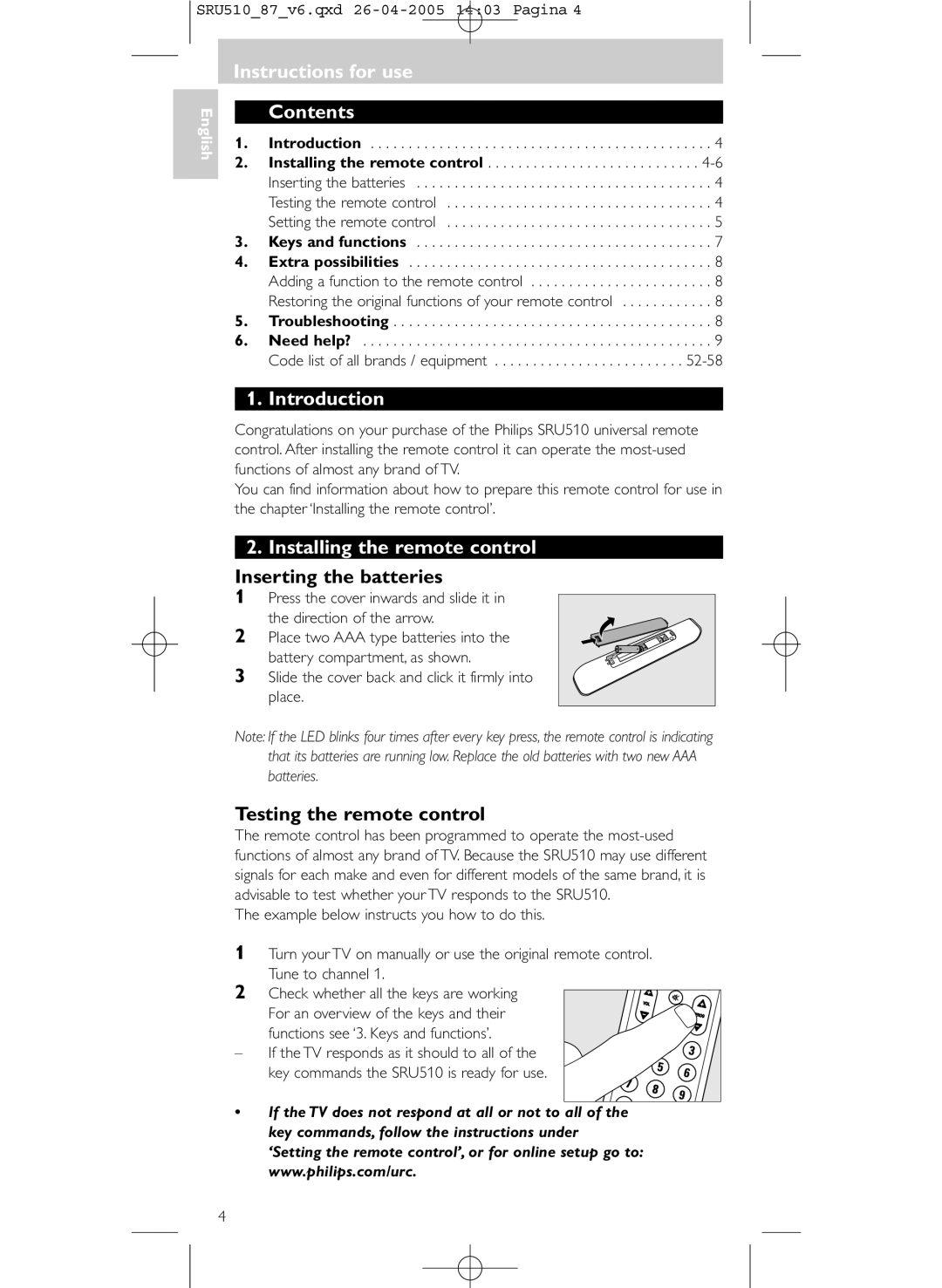

Contents

1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2. Installing the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Inserting the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Testing the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Setting the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. Keys and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4. Extra possibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Adding a function to the remote control . . . . . . . . . . . . . . . . . . . . . . . . 8

Restoring the original functions of your remote control . . . . . . . . . . . . 8

5. Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

6. Need help? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Code list of all brands / equipment . . . . . . . . . . . . . . . . . . . . . . . . . 52-58

1. Introduction

Congratulations on your purchase of the Philips SRU510 universal remote

control.After installing the remote control it can operate the most-used

functions of almost any brand of TV.

You can find information about how to prepare this remote control for use in

the chapter ‘Installing the remote control’.

2. Installing the remote control

Inserting the batteries

1Press the cover inwards and slide it in

the direction of the arrow.

2Place two AAA type batteries into the

battery compartment, as shown.

3Slide the cover back and click it firmly into

place.

Note:If the LED blinks four times after every key press, the remote control is indicating

that its batteries are running low.Replace the old batteries with two new AAA

batteries.

Testing the remote control

The remote control has been programmed to operate the most-used

functions of almost any brand of TV.Because the SRU510 may use different

signals for each make and even for different models of the same brand,it is

advisable to test whether your TV responds to the SRU510.

The example below instructs you how to do this.

1Turn your TV on manually or use the original remote control.

Tune to channel 1.

2Check whether all the keys are working

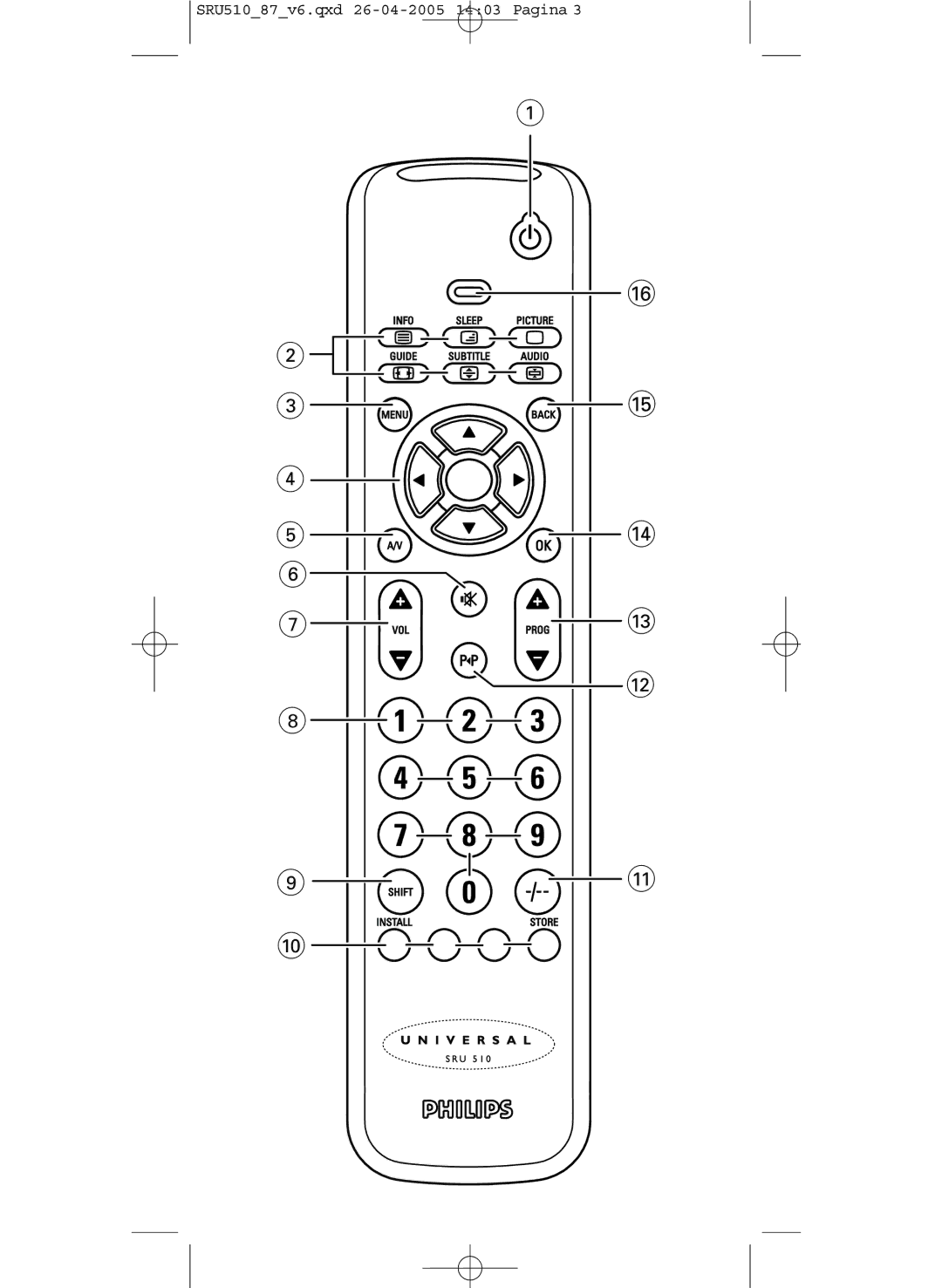

For an overview of the keys and their

functions see ‘3.Keys and functions’.

–If the TV responds as it should to all of the

key commands the SRU510 is ready for use.

•If the TV does not respond at all or not to all of the

key commands,follow the instructions under

‘Setting the remote control’,or for online setup go to:

www.philips.com/urc.

Instructions for use

English

SRU510_87_v6.qxd 26-04-2005 14:03 Pagina 4
