Pioneer PDP 6020FD manual Kuro Technology, Kuro Features, Video Processing Technology

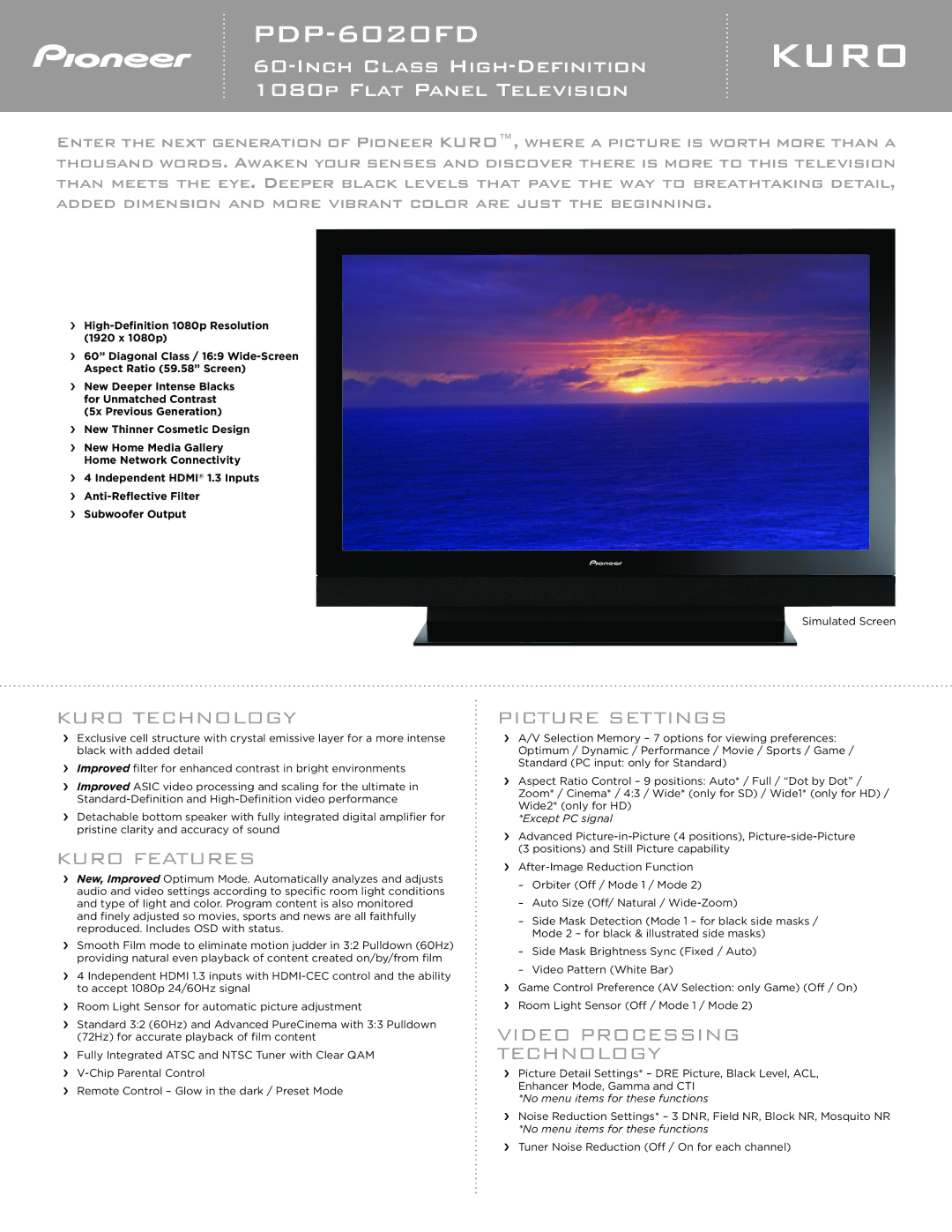

PDP-6020FD

60-INCH CLASS HIGH-DEFINITION

1080P FLAT PANEL TELEVISION

ENTER THE NEXT GENERATION OF PIONEER KURO™, WHERE A PICTURE IS WORTH MORE THAN A THOUSAND WORDS. AWAKEN YOUR SENSES AND DISCOVER THERE IS MORE TO THIS TELEVISION THAN MEETS THE EYE. DEEPER BLACK LEVELS THAT PAVE THE WAY TO BREATHTAKING DETAIL, ADDED DIMENSION AND MORE VIBRANT COLOR ARE JUST THE BEGINNING.

›› High-Definition 1080p Resolution

(1920 x 1080p)

›› 60” Diagonal Class / 16:9 Wide-Screen

Aspect Ratio (59.58” Screen)

›› New Deeper Intense Blacks

for Unmatched Contrast

(5x Previous Generation)

›› New Thinner Cosmetic Design

›› New Home Media Gallery

Home Network Connectivity

›› 4 Independent HDMI® 1.3 Inputs

›› Anti-Reflective Filter

›› Subwoofer Output

Simulated Screen

KURO TECHNOLOGY

›› Exclusive cell structure with crystal emissive layer for a more intense black with added detail

›› Improved filter for enhanced contrast in bright environments

›› Improved ASIC video processing and scaling for the ultimate in Standard-Definition and High-Definition video performance

›› Detachable bottom speaker with fully integrated digital amplifier for pristine clarity and accuracy of sound

KURO FEATURES

›› New, Improved Optimum Mode. Automatically analyzes and adjusts audio and video settings according to specific room light conditions and type of light and color. Program content is also monitored and finely adjusted so movies, sports and news are all faithfully reproduced. Includes OSD with status.

›› Smooth Film mode to eliminate motion judder in 3:2 Pulldown (60Hz) providing natural even playback of content created on/by/from film

›› 4 Independent HDMI 1.3 inputs with HDMI-CEC control and the ability to accept 1080p 24/60Hz signal

›› Room Light Sensor for automatic picture adjustment

›› Standard 3:2 (60Hz) and Advanced PureCinema with 3:3 Pulldown (72Hz) for accurate playback of film content

›› Fully Integrated ATSC and NTSC Tuner with Clear QAM ›› V-Chip Parental Control

›› Remote Control – Glow in the dark / Preset Mode

PICTURE SETTINGS

›› A/V Selection Memory – 7 options for viewing preferences: Optimum / Dynamic / Performance / Movie / Sports / Game / Standard (PC input: only for Standard)

›› Aspect Ratio Control – 9 positions: Auto* / Full / “Dot by Dot” / Zoom* / Cinema* / 4:3 / Wide* (only for SD) / Wide1* (only for HD) / Wide2* (only for HD)

*Except PC signal

›› Advanced Picture-in-Picture (4 positions), Picture-side-Picture (3 positions) and Still Picture capability

›› After-Image Reduction Function

––Orbiter (Off / Mode 1 / Mode 2)

––Auto Size (Off/ Natural / Wide-Zoom)

––Side Mask Detection (Mode 1 – for black side masks / Mode 2 – for black & illustrated side masks)

––Side Mask Brightness Sync (Fixed / Auto)

––Video Pattern (White Bar)

›› Game Control Preference (AV Selection: only Game) (Off / On) ›› Room Light Sensor (Off / Mode 1 / Mode 2)

VIDEO PROCESSING

TECHNOLOGY

›› Picture Detail Settings* – DRE Picture, Black Level, ACL, Enhancer Mode, Gamma and CTI

*No menu items for these functions

›› Noise Reduction Settings* – 3 DNR, Field NR, Block NR, Mosquito NR *No menu items for these functions

›› Tuner Noise Reduction (Off / On for each channel)
