Pioneer dimensions DVD Receiver XV-DV360, Speaker Systems S-DV353, HTZ-360DV, ›Video Features

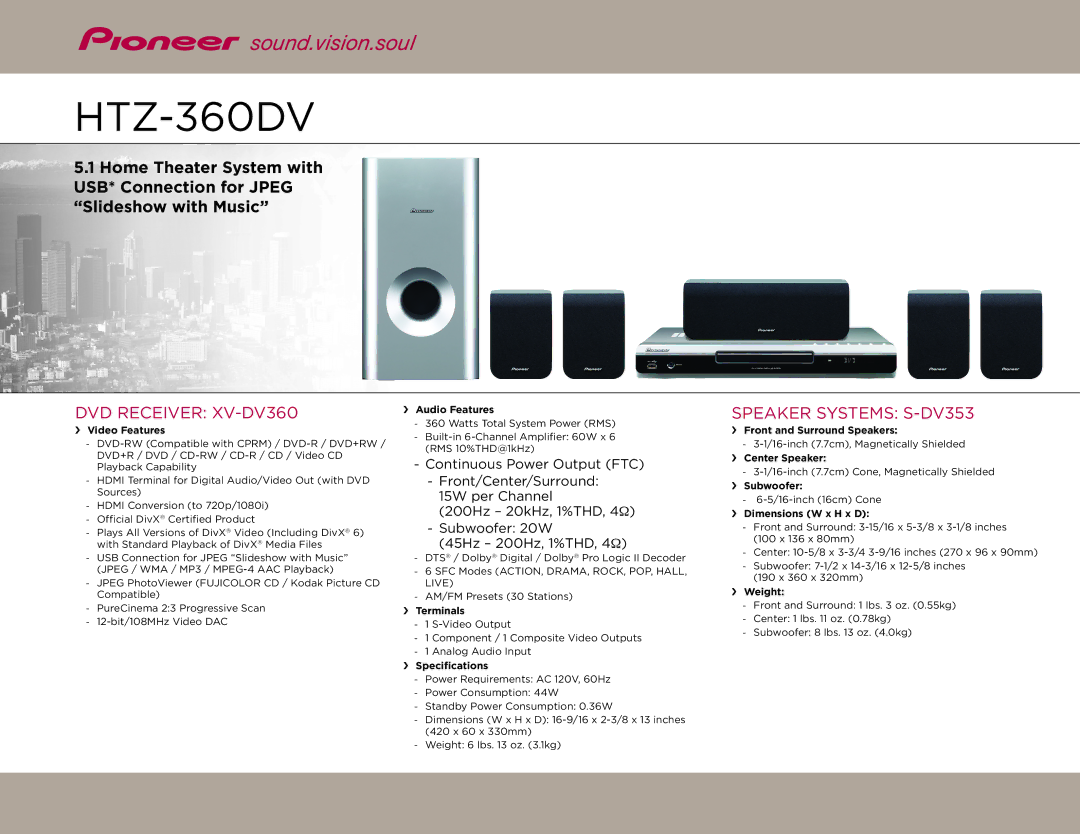

HTZ-360DV

5.1Home Theater System with USB* Connection for JPEG “Slideshow with Music”

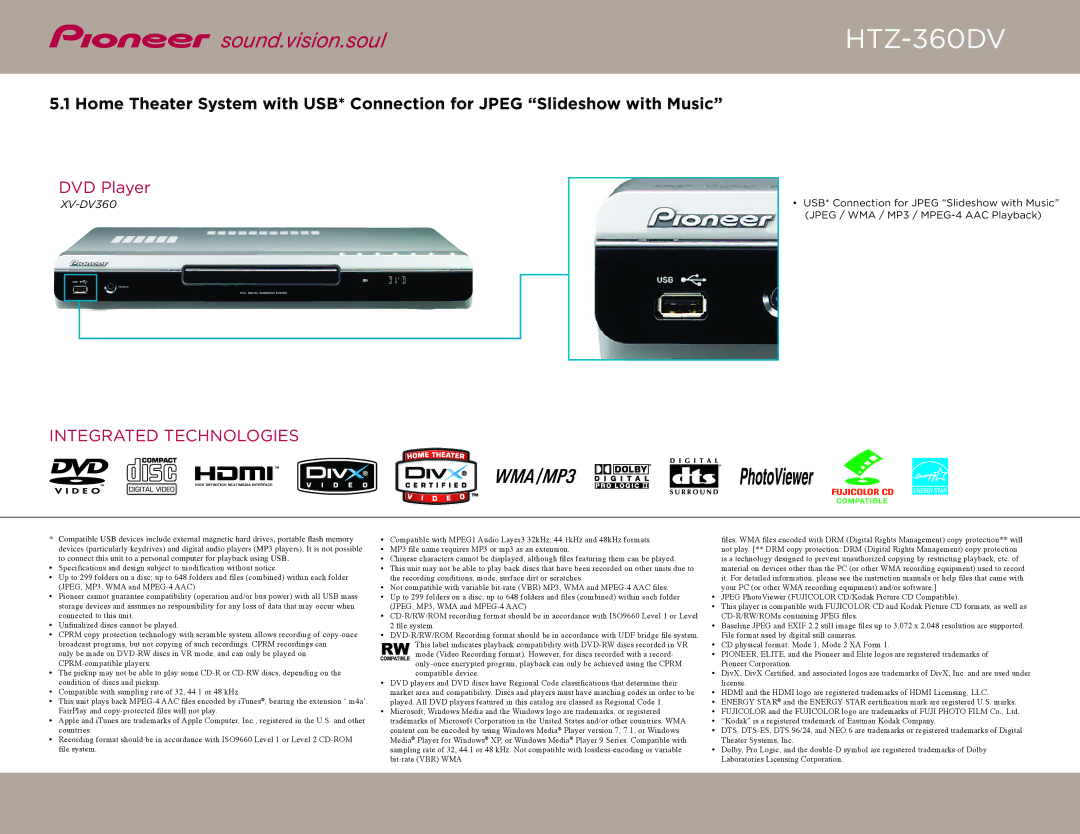

DVD Receiver: XV-DV360

›Video Features

-DVD-RW (Compatible with CPRM) / DVD-R / DVD+RW / DVD+R / DVD / CD-RW / CD-R / CD / Video CD Playback Capability

-HDMI Terminal for Digital Audio/Video Out (with DVD Sources)

-HDMI Conversion (to 720p/1080i)

-Official DivX® Certified Product

-Plays All Versions of DivX® Video (Including DivX® 6) with Standard Playback of DivX® Media Files

-USB Connection for JPEG “Slideshow with Music” (JPEG / WMA / MP3 / MPEG-4 AAC Playback)

-JPEG PhotoViewer (FUJICOLOR CD / Kodak Picture CD Compatible)

-PureCinema 2:3 Progressive Scan

-12-bit/108MHz Video DAC

›Audio Features

-360 Watts Total System Power (RMS)

-Built-in 6-Channel Amplifier: 60W x 6 (RMS 10%THD@1kHz)

-Continuous Power Output (FTC)

-Front/Center/Surround:

15W per Channel

(200Hz – 20kHz, 1%THD, 4Ω)

-Subwoofer: 20W

(45Hz – 200Hz, 1%THD, 4Ω)

-DTS® / Dolby® Digital / Dolby® Pro Logic II Decoder

-6 SFC Modes (ACTION, DRAMA, ROCK, POP, HALL, LIVE)

-AM/FM Presets (30 Stations)

›Terminals

-1 S-Video Output

-1 Component / 1 Composite Video Outputs

-1 Analog Audio Input

›Specifications

-Power Requirements: AC 120V, 60Hz

-Power Consumption: 44W

-Standby Power Consumption: 0.36W

-Dimensions (W x H x D): 16-9/16 x 2-3/8 x 13 inches (420 x 60 x 330mm)

-Weight: 6 lbs. 13 oz. (3.1kg)

Speaker Systems: S-DV353

›Front and Surround Speakers:

-3-1/16-inch (7.7cm), Magnetically Shielded

›Center Speaker:

-3-1/16-inch (7.7cm) Cone, Magnetically Shielded

›Subwoofer:

-6-5/16-inch (16cm) Cone

›Dimensions (W x H x D):

-Front and Surround: 3-15/16 x 5-3/8 x 3-1/8 inches (100 x 136 x 80mm)

-Center: 10-5/8 x 3-3/4 3-9/16 inches (270 x 96 x 90mm)

-Subwoofer: 7-1/2 x 14-3/16 x 12-5/8 inches (190 x 360 x 320mm)

›Weight:

-Front and Surround: 1 lbs. 3 oz. (0.55kg)

-Center: 1 lbs. 11 oz. (0.78kg)

-Subwoofer: 8 lbs. 13 oz. (4.0kg)
