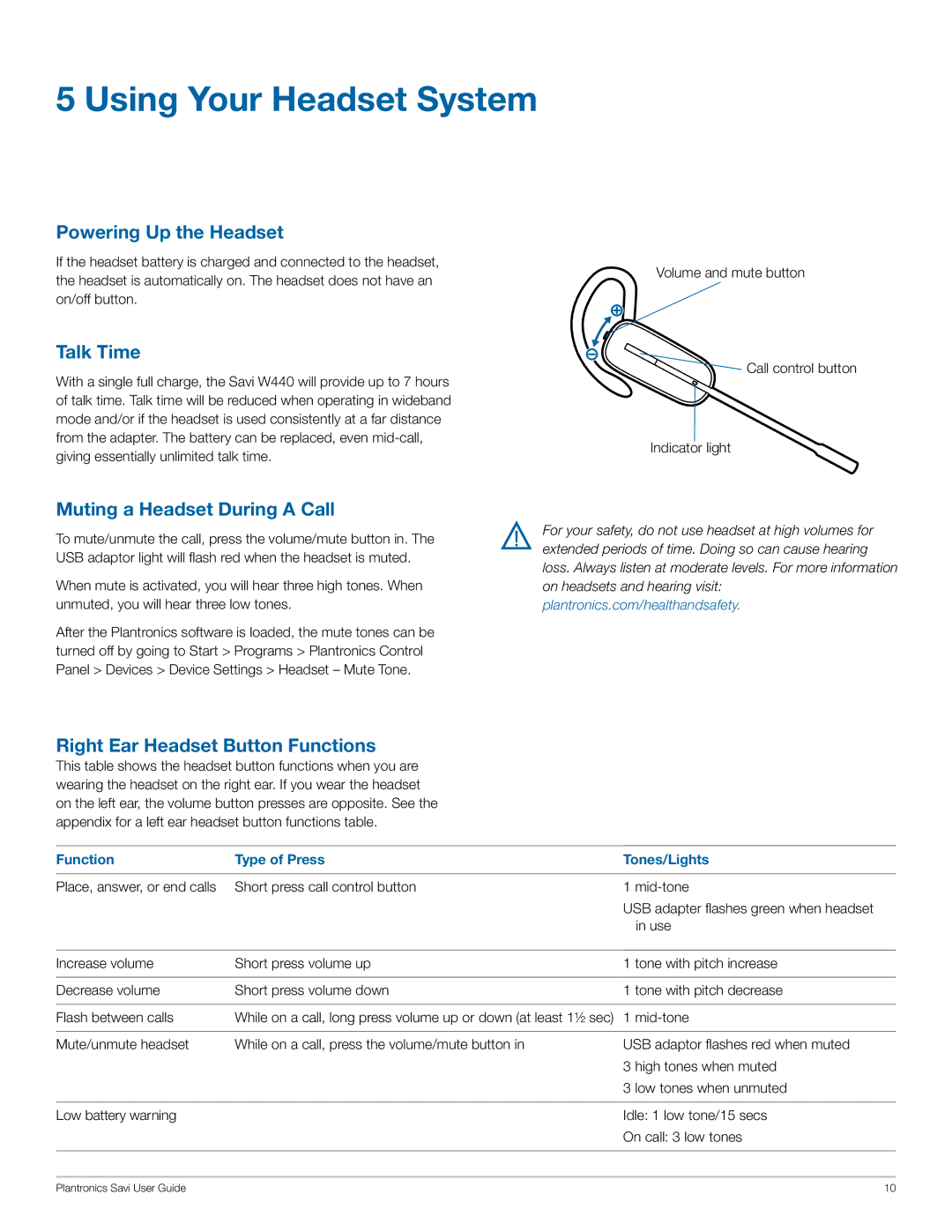

5 Using Your Headset System
Powering Up the Headset
If the headset battery is charged and connected to the headset, the headset is automatically on. The headset does not have an on/off button.
Talk Time
With a single full charge, the Savi W440 will provide up to 7 hours of talk time. Talk time will be reduced when operating in wideband mode and/or if the headset is used consistently at a far distance from the adapter. The battery can be replaced, even
Volume and mute button
Call control button
Indicator light
Muting a Headset During A Call
To mute/unmute the call, press the volume/mute button in. The USB adaptor light will flash red when the headset is muted.
When mute is activated, you will hear three high tones. When unmuted, you will hear three low tones.
After the Plantronics software is loaded, the mute tones can be turned off by going to Start > Programs > Plantronics Control Panel > Devices > Device Settings > Headset – Mute Tone.
For your safety, do not use headset at high volumes for extended periods of time. Doing so can cause hearing loss. Always listen at moderate levels. For more information on headsets and hearing visit: plantronics.com/healthandsafety.
Right Ear Headset Button Functions
This table shows the headset button functions when you are wearing the headset on the right ear. If you wear the headset on the left ear, the volume button presses are opposite. See the appendix for a left ear headset button functions table.
Function | Type of Press | Tones/Lights |
|
|
|
Place, answer, or end calls | Short press call control button | 1 |
|
| USB adapter flashes green when headset |
|
| in use |
|
|
|
Increase volume | Short press volume up | 1 tone with pitch increase |
|
|
|
Decrease volume | Short press volume down | 1 tone with pitch decrease |
|
|
|
Flash between calls | While on a call, long press volume up or down (at least 1½ sec) | 1 |
|
|
|
Mute/unmute headset | While on a call, press the volume/mute button in | USB adaptor flashes red when muted |
|
| 3 high tones when muted |
|
| 3 low tones when unmuted |
|
|
|
Low battery warning |
| Idle: 1 low tone/15 secs |
|
| On call: 3 low tones |
|
|
|
Plantronics Savi User Guide | 10 |
