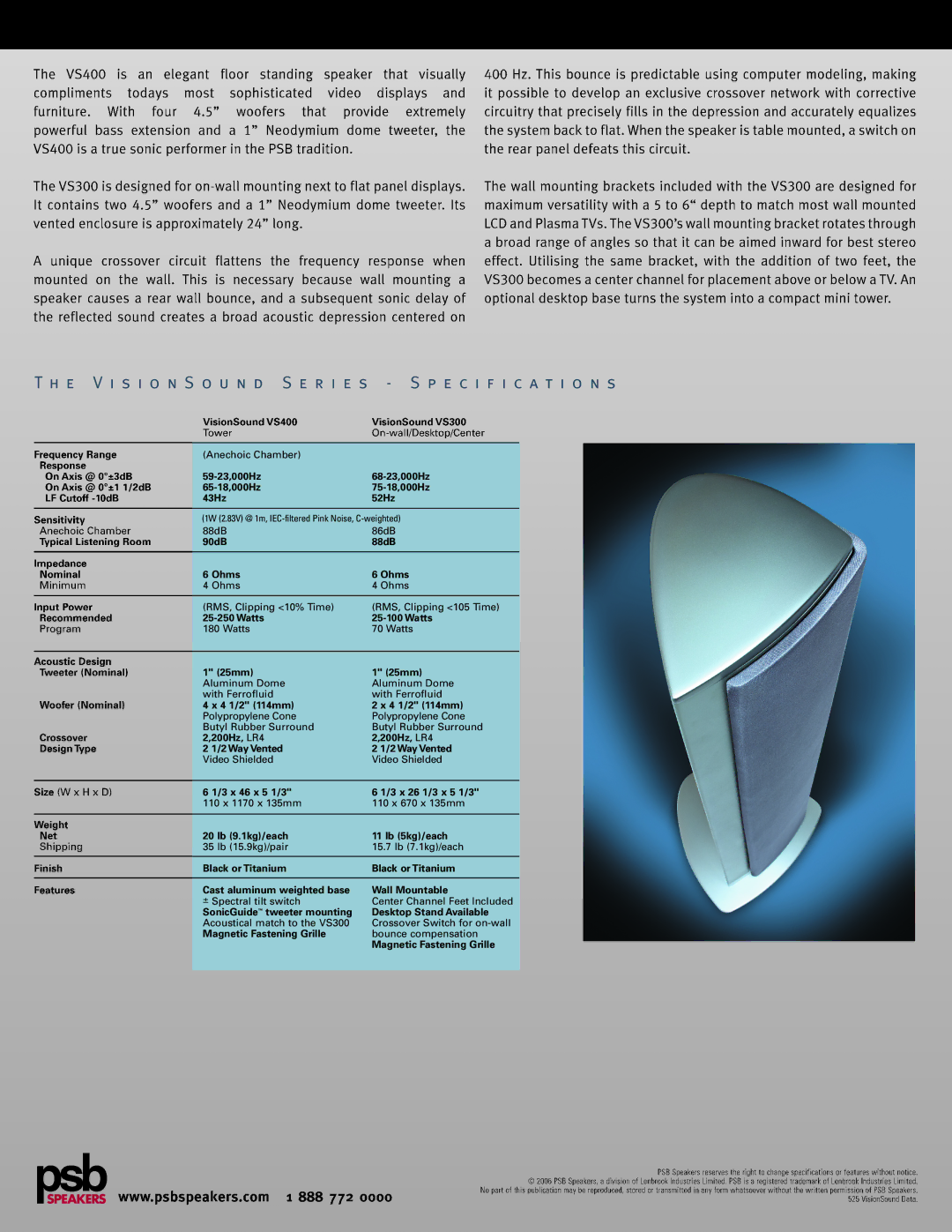

T h e V i s i o n S o u n d S e r i e s - S p e c i f i c a t i o n s
(Anechoic Chamber) |
|
43Hz | 52Hz |
(1W (2.83V) @ 1m, | |
88dB | 86dB |
90dB | 88dB |
6 Ohms | 6 Ohms |
4 Ohms | 4 Ohms |
(RMS, Clipping <10% Time) | (RMS, Clipping <105 Time) |
180 Watts | 70 Watts |
1" (25mm) | 1" (25mm) |
Aluminum Dome | Aluminum Dome |
with Ferrofluid | with Ferrofluid |
4 x 4 1/2" (114mm) | 2 x 4 1/2" (114mm) |
Polypropylene Cone | Polypropylene Cone |
Butyl Rubber Surround | Butyl Rubber Surround |
2,200Hz, LR4 | 2,200Hz, LR4 |
2 1/2 Way Vented | 2 1/2 Way Vented |
Video Shielded | Video Shielded |
6 1/3 x 46 x 5 1/3" | 6 1/3 x 26 1/3 x 5 1/3" |
110 x 1170 x 135mm | 110 x 670 x 135mm |
20 lb (9.1kg)/each | 11 lb (5kg)/each |
35 lb (15.9kg)/pair | 15.7 lb (7.1kg)/each |
Black or Titanium | Black or Titanium |
Cast aluminum weighted base | Wall Mountable |
± Spectral tilt switch | Center Channel Feet Included |
SonicGuide™ tweeter mounting | Desktop Stand Available |
Acoustical match to the VS300 | Crossover Switch for |
Magnetic Fastening Grille | bounce compensation |
| Magnetic Fastening Grille |
