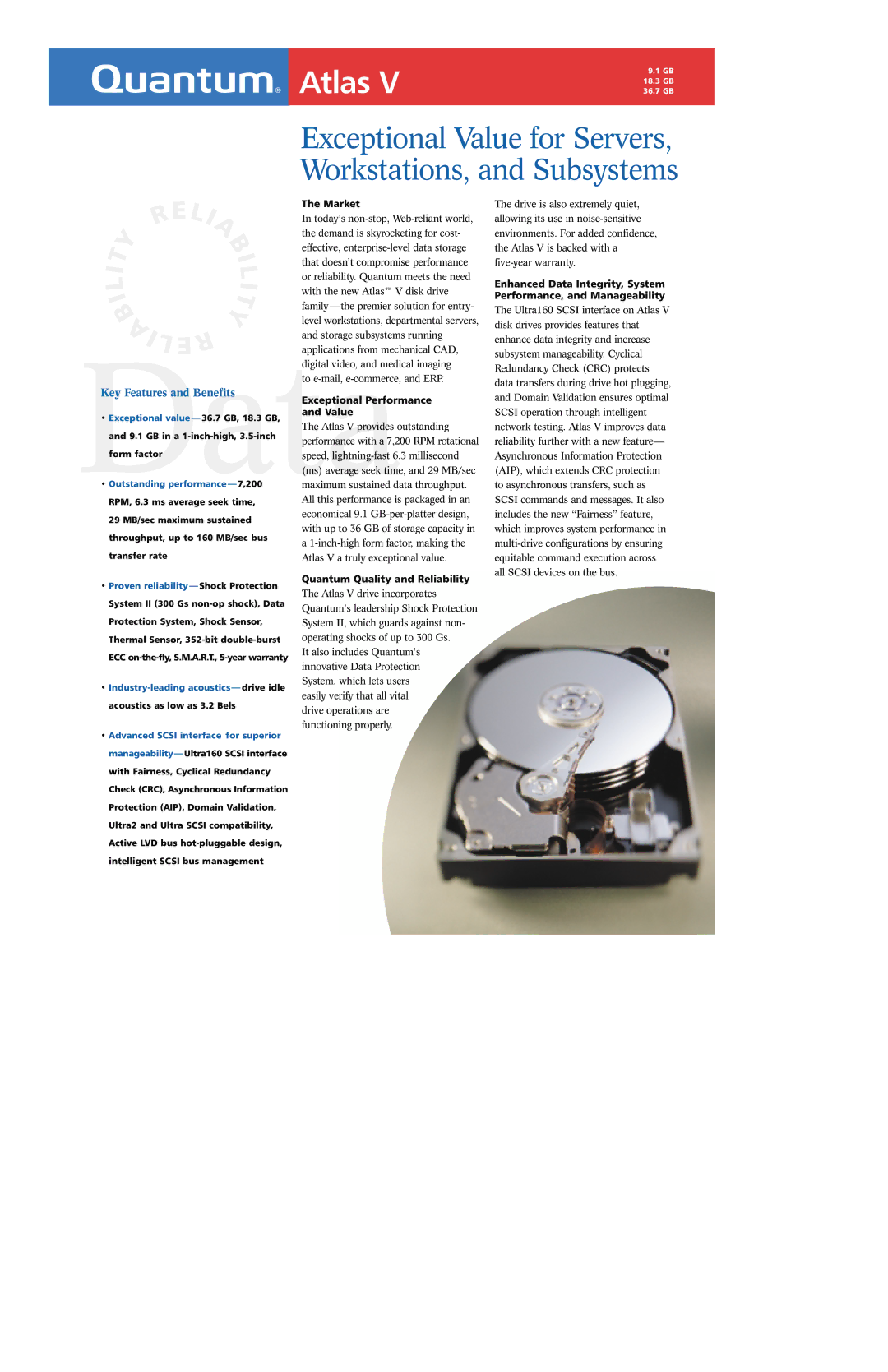

Atlas V

9.1GB

18.3GB

36.7GB

Exceptional Value for Servers, Workstations, and Subsystems



The Market



In today’s non-stop, Web-reliant world,



the demand is skyrocketing for cost-



effective, enterprise-level data storage



that doesn’t compromise performance



or reliability. Quantum meets the need



with the new Atlas™ V disk drive



family—the premier solution for entry-



level workstations, departmental servers,



and storage subsystems running



applications from mechanical CAD,



digital video, and medical imaging



to e-mail, e-commerce, and ERP.

Key Features and Benefits

Exceptional Performance



Exceptional value — 36.7 GB, 18.3 GB,

and Value

The Atlas V provides outstanding

and 9.1 GB in a 1-inch-high, 3.5-inch

performance with a 7,200 RPM rotational



form factor

speed, lightning-fast 6.3 millisecond



(ms) average seek time, and 29 MB/sec

Outstanding performance—7,200

maximum sustained data throughput.



performance is packaged in an

DataRPM, 6.3 ms average seek time, All this

29 MB/sec maximum sustained

economical 9.1 GB-per-platter design,

with up to 36 GB of storage capacity in

throughput, up to 160 MB/sec bus

a 1-inch-high form factor, making the



transfer rate

Atlas V a truly exceptional value.

The drive is also extremely quiet, allowing its use in noise-sensitive environments. For added confidence, the Atlas V is backed with a five-year warranty.

Enhanced Data Integrity, System Performance, and Manageability

The Ultra160 SCSI interface on Atlas V disk drives provides features that enhance data integrity and increase subsystem manageability. Cyclical Redundancy Check (CRC) protects data transfers during drive hot plugging, and Domain Validation ensures optimal SCSI operation through intelligent network testing. Atlas V improves data reliability further with a new feature— Asynchronous Information Protection (AIP), which extends CRC protection to asynchronous transfers, such as SCSI commands and messages. It also includes the new “Fairness” feature, which improves system performance in multi-drive configurations by ensuring equitable command execution across all SCSI devices on the bus.

Proven reliability — Shock Protection System II (300 Gs non-op shock), Data Protection System, Shock Sensor, Thermal Sensor, 352-bitdouble-burst ECC on-the-fly, S.M.A.R.T., 5-year warranty

Industry-leading acoustics — drive idle acoustics as low as 3.2 Bels

Advanced SCSI interface for superior manageability—Ultra160 SCSI interface with Fairness, Cyclical Redundancy Check (CRC), Asynchronous Information Protection (AIP), Domain Validation, Ultra2 and Ultra SCSI compatibility, Active LVD bus hot-pluggable design, intelligent SCSI bus management

Quantum Quality and Reliability

The Atlas V drive incorporates Quantum’s leadership Shock Protection System II, which guards against non- operating shocks of up to 300 Gs.

It also includes Quantum’s innovative Data Protection System, which lets users easily verify that all vital drive operations are functioning properly.
