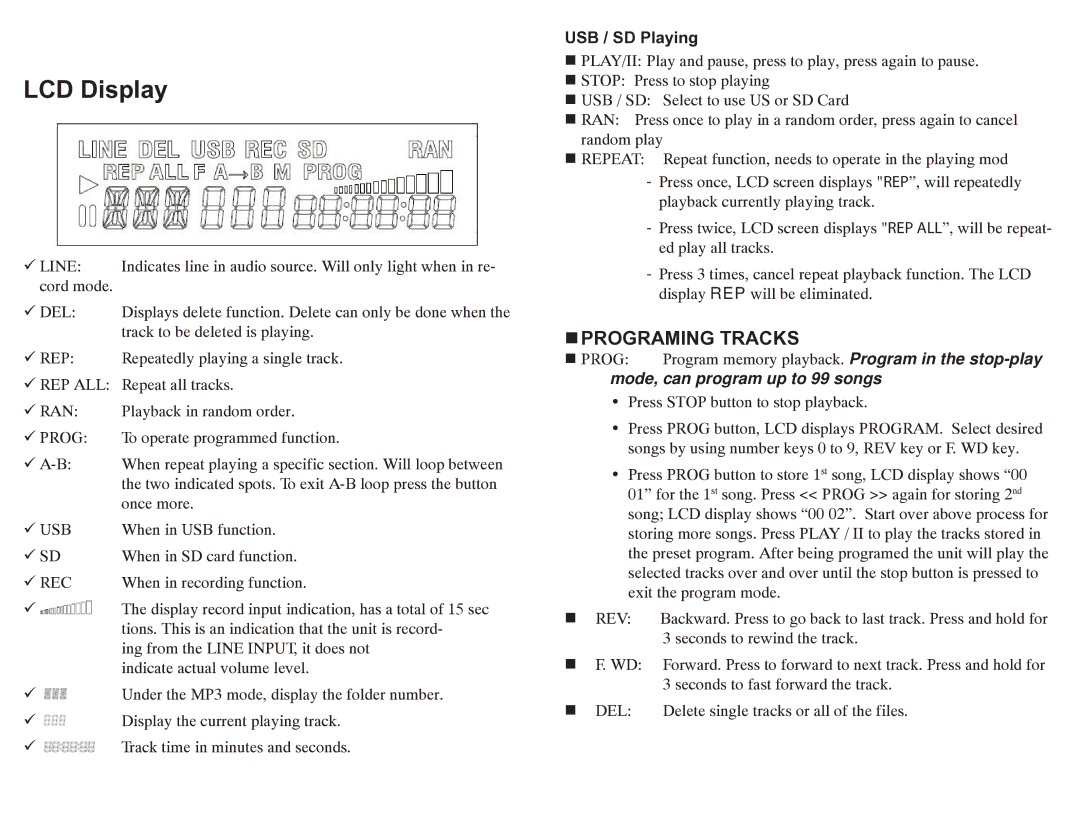

LCD Display
LINE: | Indicates line in audio source. Will only light when in re- |
cord mode. |
|
DEL: | Displays delete function. Delete can only be done when the |
| track to be deleted is playing. |
REP: | Repeatedly playing a single track. |
REP ALL: | Repeat all tracks. |
RAN: | Playback in random order. |
PROG: | To operate programmed function. |
When repeat playing a specific section. Will loop between | |
| the two indicated spots. To exit |
| once more. |
USB | When in USB function. |
SD | When in SD card function. |
REC | When in recording function. |
| The display record input indication, has a total of 15 sec |
| tions. This is an indication that the unit is record- |
| ing from the LINE INPUT, it does not |
| indicate actual volume level. |
| Under the MP3 mode, display the folder number. |
| Display the current playing track. |
| Track time in minutes and seconds. |
USB / SD Playing
PLAY/II: Play and pause, press to play, press again to pause.
STOP: Press to stop playing
USB / SD: Select to use US or SD Card
RAN: Press once to play in a random order, press again to cancel random play
REPEAT: Repeat function, needs to operate in the playing mod
-Press once, LCD screen displays "REP”, will repeatedly playback currently playing track.
-Press twice, LCD screen displays "REP ALL”, will be repeat- ed play all tracks.
-Press 3 times, cancel repeat playback function. The LCD display REP will be eliminated.
PROGRAMING TRACKS
PROG: Program memory playback. Program in the
Press STOP button to stop playback.
Press PROG button, LCD displays PROGRAM. Select desired songs by using number keys 0 to 9, REV key or F. WD key.
Press PROG button to store 1st song, LCD display shows “00 01” for the 1st song. Press << PROG >> again for storing 2nd song; LCD display shows “00 02”. Start over above process for storing more songs. Press PLAY / II to play the tracks stored in the preset program. After being programed the unit will play the selected tracks over and over until the stop button is pressed to exit the program mode.
REV: | Backward. Press to go back to last track. Press and hold for |
| 3 seconds to rewind the track. |
F. WD: | Forward. Press to forward to next track. Press and hold for |
| 3 seconds to fast forward the track. |
DEL: | Delete single tracks or all of the files. |
