Samsung manual Step, DVD-HD841 Upgrade Instructions, Upgrade instructions

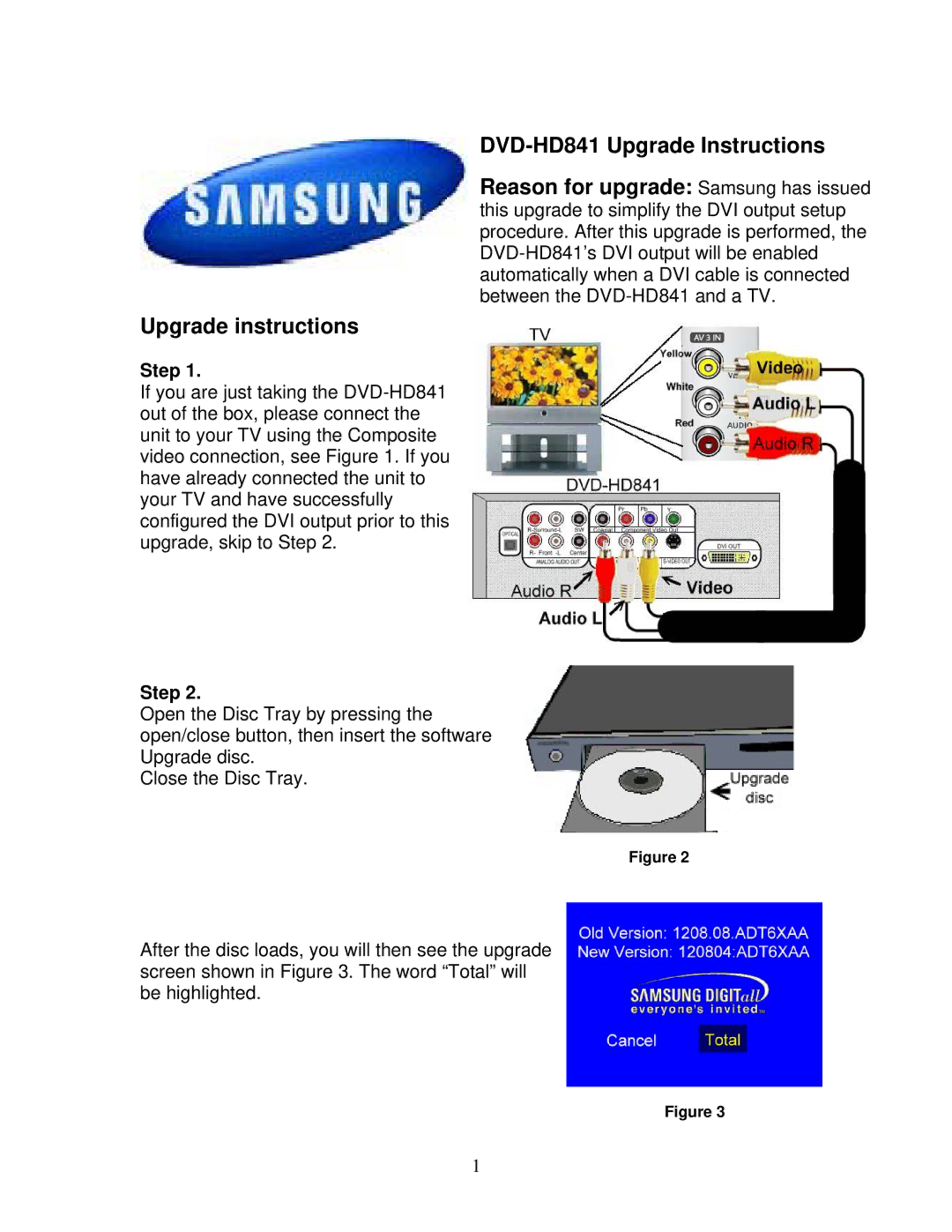

DVD-HD841 Upgrade Instructions

Reason for upgrade: Samsung has issued this upgrade to simplify the DVI output setup procedure. After this upgrade is performed, the DVD-HD841’s DVI output will be enabled automatically when a DVI cable is connected between the DVD-HD841 and a TV.

Upgrade instructions

Step 1.

If you are just taking the DVD-HD841 out of the box, please connect the unit to your TV using the Composite video connection, see Figure 1. If you have already connected the unit to your TV and have successfully configured the DVI output prior to this upgrade, skip to Step 2.

Step 2.

Open the Disc Tray by pressing the open/close button, then insert the software Upgrade disc.

Close the Disc Tray.

Figure 1

Figure 1

Figure 2

After the disc loads, you will then see the upgrade screen shown in Figure 3. The word “Total” will be highlighted.

Figure 3

1
